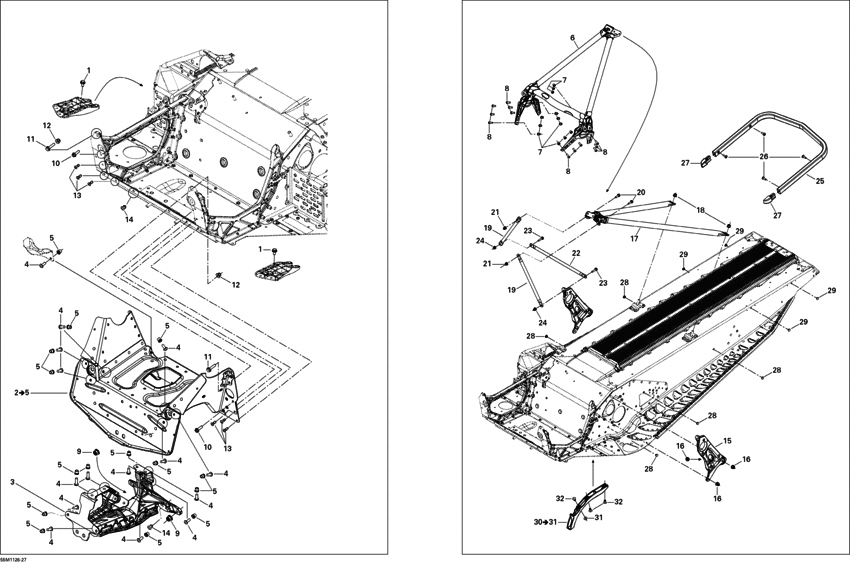

09- Frame And Components Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
2
|
2
518-325-567
Module s *cross member
|
518-325-567 |
— | ||
|
3
|
3
518325925
Support *support
|
518325925 |
— | ||
| replacement | |||||
|
3
|
3
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
4
|
4
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
5
|
5
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
6
|
6
518326556 FRONT MEMBER |
518326556 |
US $299.85 |
||
|
7
|
7
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
8
|
8
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
9
|
9
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
10
|
10
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
11
|
11
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
12
|
12
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
13
|
13
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
14
|
14
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
15
|
15
518326651 PULLEY SUPPORT |
518326651 |
US $118.29 |
||
|
16
|
16
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
17
|
17
518326559 REAR MEMBER |
518326559 |
US $164.17 |
||
|
18
|
18
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
19
|
19
518325114 Support colonne*support |
518325114 |
US $19.92 |
||
|
20
|
20
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
21
|
21
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
22
|
22
518325115 Support colonne*upper column |
518325115 |
US $19.92 |
||
|
23
|
23
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
24
|
24
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
25
|
25
518324980 Pare-choc *rear bumper |
518324980 |
US $103.99 |
||
|
26
|
26
250000402 TORX-TRUSS M/S GM6047M N.PATCH |
250000402 |
US $10.05 |
||
|
27
|
27
520000567 Capuchon *cap |
520000567 |
US $8.38 |
||
|
28
|
28
293730041 Dard 8 mm *dart 8 mm |
293730041 |
US $2.06 |
||
|
29
|
29
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
30
|
30
518326973 FRONT PROTECTOR |
518326973 |
US $16.76 |
||
|
31
|
31
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
32
|
32
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
