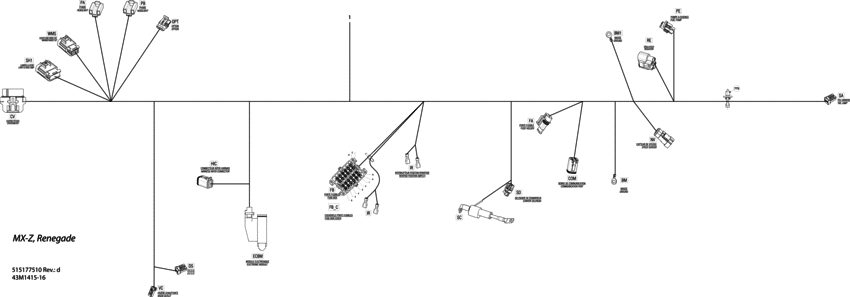

10- Electrical Harness _43M1415 Diagram Bombardier MX Z
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515177510 MAIN HARNESS |
515177510 |
US $388.59 |
||
|
775
|
775
293730040 Dard d ancrage *dart-mount |
293730040 |
US $1.34 |
||
|
BM
|
BM
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
BM1
|
BM1
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
COM
|
COM
278002896 HOUSING, 6 CIRCUITS |
278002896 |
US $16.92 |
||
|
COM
|
COM
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
COM
|
COM
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
COM
|
COM
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
CV
|
CV
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
CV
|
CV
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
CV
|
CV
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
CV
|
CV
710000399 Logement femel.*female housing |
710000399 |
from US $16.92 |
||
|
CV
|
CV
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
CV
|
CV
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
CV
|
CV
710001131 Terminal femel *terminal-femal |
710001131 |
US $9.76 |
||
|
DS
|
DS
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
DS
|
DS
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
ECMB
|
ECMB
515175885 Couvercle *cover |
515175885 |
US $6.26 |
||
|
ECMB
|
ECMB
278001751 Bloc 41circ.mal*housing-tab |
278001751 |
US $24.11 |
||
|
ECMB
|
ECMB
515175884 Verrou *lock |
515175884 |
US $6.26 |
||
|
ECMB
|
ECMB
515175883 Loquet *latch |
515175883 |
US $7.31 |
||
|
ECMB
|
ECMB
515175886 Joint *seal |
515175886 |
US $6.26 |
||
|
ECMB
|
ECMB
515177481 FEMALE TERMINAL |
515177481 |
US $0.99 |
||
|
FA
|
FA
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
FA
|
FA
278001325 Porte fusible *holder-fuse |
278001325 |
US $19.34 |
||
|
FA
|
FA
710000113 Cosse femelle *terminal-femal. |
710000113 |
US $90.10 |
||
|
FB
|
FB
710000744 Mini-fusible *little fuse |
710000744 |
US $9.67 |
||
|
FB
|
FB
710000746 Mini-fusible *little fuse |
710000746 |
US $9.67 |
||
|
FB
|
FB
710000745 Mini-fusible *little fuse |
710000745 |
US $9.67 |
||
|
FB
|
FB
278002824 CASE ASS Y |
278002824 |
US $38.98 |
||
|
FB
|
FB
710001778 RELAY |
710001778 |
US $22.39 |
||
| replacement | |||||
|
FB
|
FB
715900824 RELAY |
715900824 |
US $22.39 |
||
|
FB
|
FB
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
FB
|
FB
278001065 Joint de fil *seal-wire |
278001065 |
US $48.05 |
||
|
FB
|
FB
278002578 TERMINAL |
278002578 |
US $1.34 |
||
|
FB
|
FB
710000918 Terminal femell*female termina |
710000918 |
US $9.61 |
||
|
FB_C
|
FB_C
278002825 FUSE COVER |
278002825 |
US $14.55 |
||
|
FB_C
|
FB_C
710000744 Mini-fusible *little fuse |
710000744 |
US $9.67 |
||
|
FB_C
|
FB_C
710000746 Mini-fusible *little fuse |
710000746 |
US $9.67 |
||
|
FB_C
|
FB_C
710000745 Mini-fusible *little fuse |
710000745 |
US $9.67 |
||
|
HIC
|
HIC
278002896 HOUSING, 6 CIRCUITS |
278002896 |
US $16.92 |
||
|
HIC
|
HIC
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
HIC
|
HIC
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
HIC
|
HIC
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
IR
|
IR
710000082 Cosse femelle *terminal-femal. |
710000082 |
US $9.61 |
||
|
NV
|
NV
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
NV
|
NV
710000568 Logement *housing |
710000568 |
US $12.22 |
||
|
NV
|
NV
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
NV
|
NV
515176164 Cosse male *terminal-male |
515176164 |
US $9.01 |
||
|
OPT
|
OPT
409209600 Logement femel.*housing-femal. |
409209600 |
US $39.95 |
||
|
OPT
|
OPT
515176621 Joint de fil *seal-wire |
515176621 |
US $48.80 |
||
|
OPT
|
OPT
278002307 Female terminal |
278002307 |
US $4.15 |
||
|
PA
|
PA
515176908 LOGEMENT FEMEL.*HOUSING-FEMALE |
515176908 |
US $14.55 |
||
|
PA
|
PA
515176909 TERMINAL |
515176909 |
US $2.84 |
||
|
PB
|
PB
515176908 LOGEMENT FEMEL.*HOUSING-FEMALE |
515176908 |
US $14.55 |
||
|
PB
|
PB
515176909 TERMINAL |
515176909 |
US $2.84 |
||
|
PE
|
PE
710001132 Logement *housing |
710001132 |
US $10.85 |
||
|
PE
|
PE
710001133 Verrou *lock |
710001133 |
US $5.87 |
||
|
PE
|
PE
278001482 Joint de fil *seal |
278001482 |
US $8.46 |
||
|
PE
|
PE
278001481 Cosse femelle *terminal-femal |
278001481 |
US $4.49 |
||
|
RE
|
RE
710000879 Logement *housing |
710000879 |
US $28.25 |
||
|
RE
|
RE
710000882 Bouchon *cap |
710000882 |
US $12.29 |
||
|
RE
|
RE
710000881 Joint *seal |
710000881 |
US $19.47 |
||
|
RE
|
RE
710000877 Terminal *terminal |
710000877 |
US $48.80 |
||
|
SA
|
SA
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
SA
|
SA
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
SC
|
SC
515177174 TERMINAL |
515177174 |
US $9.67 |
||
|
SD
|
SD
515177192 CONNECTEUR *HOUSING |
515177192 |
US $9.76 |
||
|
SD
|
SD
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
SD
|
SD
710000925 TERMINAL |
710000925 |
US $4.23 |
||
|
SH1
|
SH1
710001929 HOUSING, PACKARD |
710001929 |
US $12.22 |
||
|
SH1
|
SH1
710001225 Bouchon *cap |
710001225 |
US $9.71 |
||
|
SH1
|
SH1
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
SH1
|
SH1
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
SH1
|
SH1
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
|
SH1
|
SH1
710001223 Terminal *terminal |
710001223 |
US $4.23 |
||
|
VC
|
VC
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
VC
|
VC
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
WMS
|
WMS
710001927 LOGEMENT *HOUSING |
710001927 |
US $9.67 |
||
|
WMS
|
WMS
710001332 JOINT DE FIL *SEAL-WIRE |
710001332 |
US $4.23 |
||
|
WMS
|
WMS
710001233 Joint *seal |
710001233 |
US $4.23 |
||
|
WMS
|
WMS
710001223 Terminal *terminal |
710001223 |
US $4.23 |
||
|
WMS
|
WMS
710001224 Terminal *terminal |
710001224 |
US $4.23 |
||
