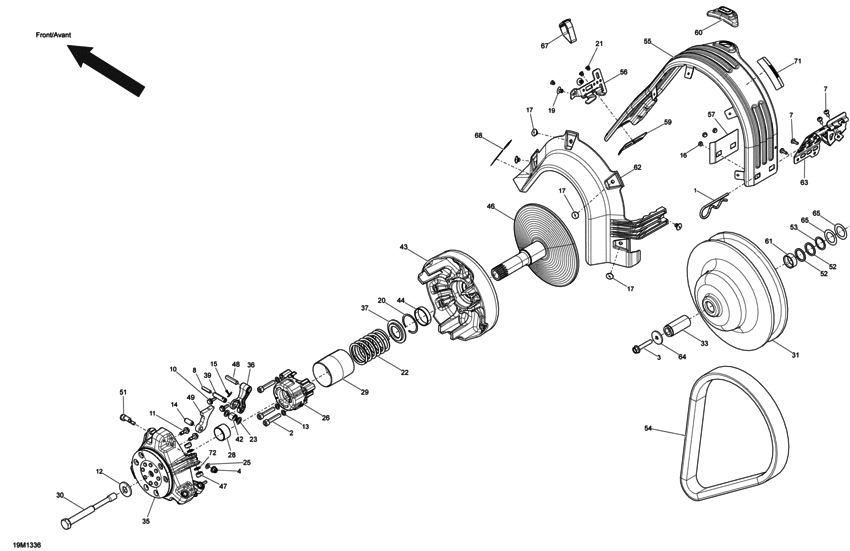

05- Pulley System Diagram Bombardier MX Z
- Year
- 2013
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
114045200 Goup.surete *pin-hair |
114045200 |
US $53.45 |
||
|
2
|
2
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
3
|
3
207584544 HEX. FLANGED SCREW M8 X 45, SCOTCH GRIP |
207584544 |
US $18.42 |
||
|
4
|
4
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
7
|
7
250000145 Torx-truss m/s gm6047m |
250000145 |
US $1.90 |
||
| replacement | |||||
|
7
|
7
250000742 TORX-TRUSS M/S M5 X 14 NYLON |
250000742 |
US $1.89 |
||
|
8
|
8
250000408 SCREW SOCKET SET DIN.913 S.GRIP |
250000408 |
US $12.15 |
||
|
10
|
10
250000416 SERRATED HEX. FLANGE BOLT M6 |
250000416 |
US $32.76 |
||
|
11
|
11
250000418 SERRATED HEX. FLANGE BOLT S.GR |
250000418 |
US $32.76 |
||
|
12
|
12
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
13
|
13
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
14
|
14
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
15
|
15
250400060 COTTER PIN |
250400060 |
US $7.71 |
||
|
16
|
16
293150091 Rivet henrob *rivet-henrob |
293150091 |
US $19.50 |
||
|
17
|
17
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
19
|
19
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
20
|
20
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
21
|
21
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
22
|
22
414689800 Ressort embra. *spring-clutch |
414689800 |
US $42.81 |
||
|
22
|
22
417223610 RACING SPRING |
417223610 |
US $51.97 |
||
|
23
|
23
417004302 Rondelle butee *washer-stopper |
417004302 |
US $20.49 |
||
|
25
|
25
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
26
|
26
417007500 Couv.ressort as*cover-spring assy. |
417007500 |
US $44.83 |
||
|
28
|
28
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
29
|
29
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
30
|
30
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
31
|
31
417127291 DRIVEN PULLEY (RAPID REACTION) |
417127291 |
US $673.18 |
||
|
33
|
33
417127300 BUSHING |
417127300 |
US $64.23 |
||
|
35
|
35
417223366 GOVERNOR CUP ASS Y |
417223366 |
US $463.05 |
||
|
36
|
36
417222671 Levier ass. *lever-assy |
417222671 |
US $54.71 |
||
|
37
|
37
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
39
|
39
417222595 Goupille *pin |
417222595 |
US $67.17 |
||
|
42
|
42
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
43
|
43
417222971 Flasque coul.as*flange-slid.assy |
417222971 |
US $533.41 |
||
|
44
|
44
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
46
|
46
417223012 Flasque fixe as*fix flange ass |
417223012 |
US $426.33 |
||
|
47
|
47
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
48
|
48
417223164 LEVER AXLE |
417223164 |
US $5.30 |
||
|
49
|
49
417223281 RAMP 443 |
417223281 |
US $100.83 |
||
|
51
|
51
417223501 CALIBRATION SCREW |
417223501 |
US $36.57 |
||
|
52
|
52
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
53
|
53
417300265 Entretoise *spacer |
417300265 |
US $14.20 |
||
|
54
|
54
417300425 DRIVE BELT |
417300425 |
US $220.29 |
||
|
55
|
55
860200362 Garde-courroie *belt guard |
860200362 |
US $47.91 |
||
|
56
|
56
417300360 Attache garde *brk guard belt |
417300360 |
US $12.19 |
||
|
57
|
57
417300372 Plaque *plate |
417300372 |
US $16.29 |
||
|
59
|
59
417300380 Renfort *reinforcement |
417300380 |
US $5.07 |
||
|
60
|
60
417300381 Guide *guide |
417300381 |
US $8.13 |
||
|
61
|
61
417300399 SPACER |
417300399 |
US $16.29 |
||
|
62
|
62
417300431 LATERAL PROTECTOR ASS Y |
417300431 |
US $21.39 |
||
|
63
|
63
417300448 BELT GUARD BRACKET |
417300448 |
US $29.53 |
||
|
64
|
64
503183100 Rondelle *washer |
503183100 |
US $40.80 |
||
|
65
|
65
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
67
|
67
508000599 Bande velcro *velcro-strip |
508000599 |
US $12.19 |
||
|
68
|
68
516005503 DECAL, ENGLISH |
516005503 |
US $0.02 |
||
|
71
|
71
516005509 SAFETY BELT GUARD DECAL |
516005509 |
US $0.02 |
||
|
72
|
72
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
