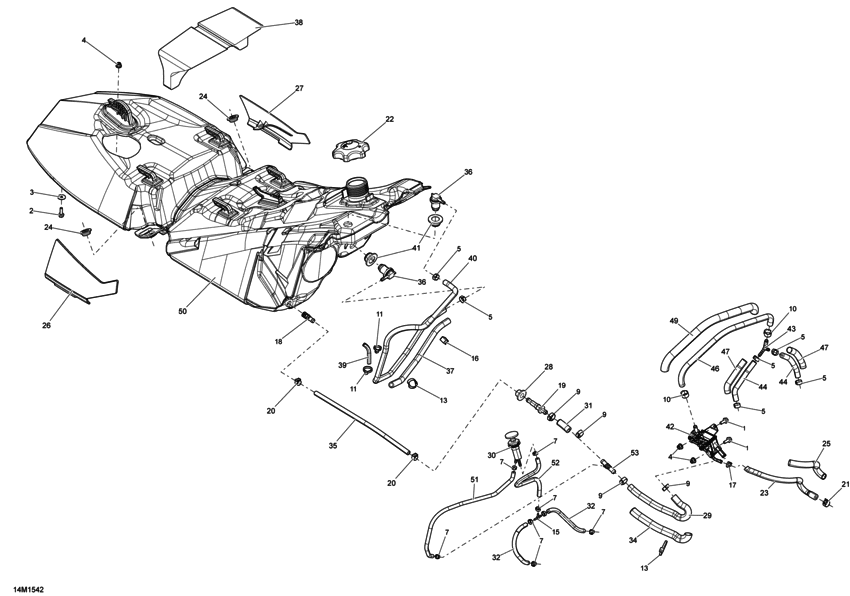

02- Fuel System _14M1542 Diagram Bombardier MX Z
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
2
|
2
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
3
|
3
224060201 Flat washer |
224060201 |
US $17.20 |
||
|
4
|
4
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
5
|
5
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
7
|
7
293650043 Bride serrage *clamp-oetiker |
293650043 |
US $22.55 |
||
|
9
|
9
293650053 Bride serrage *clamp-oetiker |
293650053 |
US $20.40 |
||
|
10
|
10
293650125 Bride serrage *clamp-oetiker |
293650125 |
US $21.70 |
||
|
11
|
11
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
13
|
13
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
15
|
15
414222400 Raccord en t *fitting-t |
414222400 |
US $21.90 |
||
|
16
|
16
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
17
|
17
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
18
|
18
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
19
|
19
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
20
|
20
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
21
|
21
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
22
|
22
513033752 FUEL TANK CAP |
513033752 |
US $55.03 |
||
|
22
|
22
513033755 FUEL TANK CAP |
513033755 |
US $55.03 |
||
|
23
|
23
513033111 Boyau forme *hose-formed |
513033111 |
US $19.57 |
||
|
24
|
24
513033326 Douille *bushing |
513033326 |
US $12.22 |
||
|
25
|
25
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
26
|
26
513033418 Capuchon droit *r.h. cap |
513033418 |
US $15.73 |
||
|
27
|
27
513033419 Capuchon gau. *l.h. cap |
513033419 |
US $12.22 |
||
|
28
|
28
513033435 Passe-fils *grommet |
513033435 |
US $5.87 |
||
|
29
|
29
513033439 Hose fuel-formed |
513033439 |
US $23.41 |
||
|
30
|
30
513033441 Amorceur *primer |
513033441 |
US $61.15 |
||
|
31
|
31
513033444 Boyau *hose |
513033444 |
US $8.55 |
||
|
32
|
32
709000665 BOYAU *HOSE 3.17MM AVON #82-530000 |
709000665 |
US $21.18 |
||
|
34
|
34
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
35
|
35
513033332 Boyau *hose |
513033332 |
US $18.34 |
||
|
36
|
36
513033517 Raccord male *male connector |
513033517 |
US $19.57 |
||
|
37
|
37
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
38
|
38
513033528 Mousse epp *foam epp |
513033528 |
US $23.41 |
||
|
39
|
39
414506600 Moulure pa-br. *trim-w shield |
414506600 |
US $99 |
||
|
40
|
40
513033565 Hose |
513033565 |
US $35.07 |
||
|
41
|
41
513033596 GROMMET |
513033596 |
US $18.34 |
||
|
42
|
42
513033669 FUEL PUMP |
513033669 |
US $99.93 |
||
|
43
|
43
513033672 Y CONNECTOR |
513033672 |
US $1.04 |
||
|
44
|
44
709000667 BOYAU *HOSE 6.35MM AVON #70-560 |
709000667 |
US $28.59 |
||
|
46
|
46
709000666 BOYAU *HOSE 7.94MM AVON #70-550 |
709000666 |
US $8.45 |
||
|
47
|
47
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
49
|
49
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
50
|
50
513033697 FUEL TANK |
513033697 |
US $441.61 |
||
|
51
|
51
709000665 BOYAU *HOSE 3.17MM AVON #82-530000 |
709000665 |
US $21.18 |
||
|
52
|
52
709000665 BOYAU *HOSE 3.17MM AVON #82-530000 |
709000665 |
US $21.18 |
||
|
53
|
53
513033756 T-FITTING |
513033756 |
US $22.39 |
