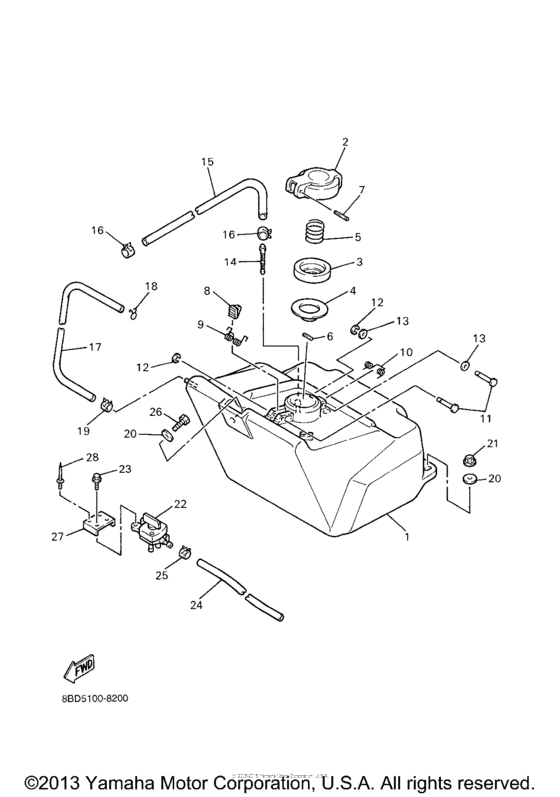

Fuel tank (2) Diagram Yamaha BR250 Bravo Trapper
- Model code
- 8BD8
- Engine Capacity
- 246
- Year
- 2001
- Sales region
- USA
- Power
- 18 hp
- Model
- Bravo Trapper
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BD-24211-00-00 Tank, Fuel |
8BD-24211-00-00 |
from US $86.76 |
||
| replacement | |||||
|
1
|
1
8BD-24211-01-00 Tank, Fuel |
8BD-24211-01-00 |
from US $86.76 |
||
|
2
|
2
8A5-24611-00-00 Body, Cap |
8A5-24611-00-00 |
from US $16.74 |
||
|
3
|
3
813-24613-01-00 Disc, Cap |
813-24613-01-00 |
from US $14.73 |
||
|
4
|
4
89A-24641-00-00 Gasket, Cap 1USA |
89A-24641-00-00 |
from US $5.53 |
||
|
5
|
5
90501-20130-00 Spring, Compression |
90501-20130-00 |
from US $3.12 |
||
|
6
|
6
91609-30016-00 Pin, Spring |
91609-30016-00 |
US $2.98 |
||
| replacement | |||||
|
6
|
6
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2 |
||
|
7
|
7
916-09250-32-00 Pin, Spring |
916-09250-32-00 |
from US $2.83 |
||
|
8
|
8
83M-24628-00-00 Hook |
83M-24628-00-00 |
from US $4.53 |
||
|
9
|
9
90508-10715-00 Spring, Torsion(81E) |
90508-10715-00 |
from US $2.41 |
||
|
10
|
10
90508-08353-00 Spring, Torsion |
90508-08353-00 |
from US $4.53 |
||
|
11
|
11
90249-03017-00 Pin |
90249-03017-00 |
from US $1.35 |
||
|
12
|
12
93430-02001-00 Circlip |
93430-02001-00 |
from US $1.84 |
||
|
13
|
13
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
14
|
14
22F-24514-01-00 Net, Filter 1USA |
22F-24514-01-00 |
from US $5.81 |
||
| replacement | |||||
|
14
|
14
5BM-24514-00-00 Net, Filter 1USA |
5BM-24514-00-00 |
from US $7.01 |
||
|
15
|
15
904-45117-F2-00 Hose (L700) |
904-45117-F2-00 |
from US $15.44 |
||
|
16
|
16
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
17
|
17
90445-095K5-00 Hose |
90445-095K5-00 |
from US $13.88 |
||
| replacement | |||||
|
17
|
17
906-99501-35-00 Hose |
906-99501-35-00 |
US $17.57 |
||
|
18
|
18
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
19
|
19
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
20
|
20
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
21
|
21
95707-08300-00 Nut, Nylon |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
21
|
21
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
22
|
22
8BD-24500-00-00 Fuel Cock Assy 1USA |
8BD-24500-00-00 |
from US $32.75 |
||
|
23
|
23
95807-06008-00 Bolt, Flange |
95807-06008-00 |
from US $1.56 |
||
| replacements | |||||
|
23
|
23
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
23
|
23
90105-06069-00 Bolt, Washer Based |
90105-06069-00 |
from US $1.56 |
||
|
24
|
24
90445-111H4-00 Hose (L210) |
90445-111H4-00 |
from US $5.81 |
||
| replacement | |||||
|
24
|
24
904-45110-F5-00 Hose (L210) |
904-45110-F5-00 |
from US $5.81 |
||
|
25
|
25
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
26
|
26
970-27080-20-00
Bolt
|
970-27080-20-00 |
— | ||
| replacement | |||||
|
26
|
26
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
27
|
27
8BD-24544-00-00 Bracket, Fuel Cock |
8BD-24544-00-00 |
from US $9.07 |
||
|
28
|
28
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)4.8X12.6 SILVER USA |
90267-48095-00 |
from US $1.98 |
||
