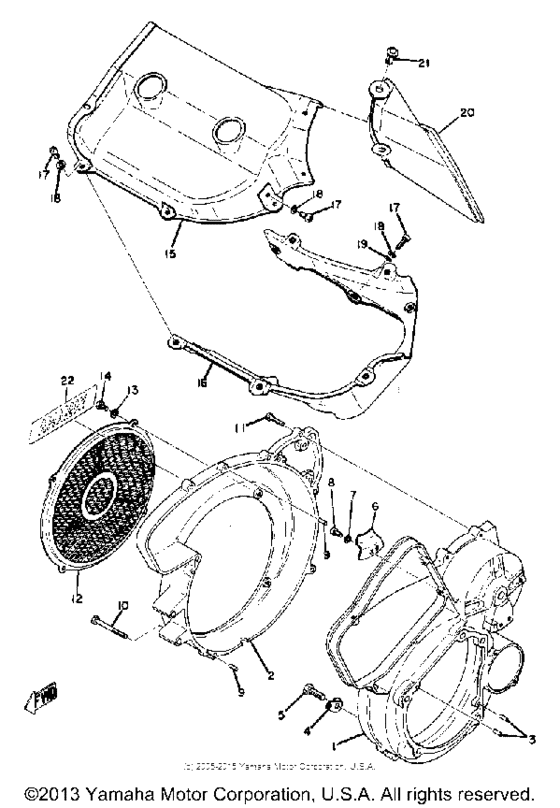

Fan case & air shroud Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-12621-01-00 Case, Fan |
847-12621-01-00 |
US $160.78 |
||
|
2
|
2
847-12622-00-00
Case, Fan 2
|
847-12622-00-00 |
— | ||
|
3
|
3
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.39 |
||
|
4
|
4
902-15080-70-00
Washer, Lock
|
902-15080-70-00 |
— | ||
|
5
|
5
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.29 |
||
|
6
|
6
847-15794-00-00 Stopper |
847-15794-00-00 |
US $20.88 |
||
|
7
|
7
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
|
8
|
8
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
9
|
9
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.39 |
||
|
10
|
10
973-06060-60-00
Bolt, Hexagon
|
973-06060-60-00 |
— | ||
|
11
|
11
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.20 |
||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
|
12
|
12
834-12617-01-00
Cover, Magneto
|
834-12617-01-00 |
— | ||
|
13
|
13
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
|
14
|
14
97026-06010-00 Bolt (97006-06010-00) |
97026-06010-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.50 |
||
|
15
|
15
847-12651-00-00
Air Shroud, Cylinder 1
|
847-12651-00-00 |
— | ||
|
16
|
16
847-12652-00-00
Air Shroud, Cylinder 2
|
847-12652-00-00 |
— | ||
|
17
|
17
98506-06014-00 Screw Pan Head |
98506-06014-00 |
from US $0.90 |
||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $0.90 |
||
|
18
|
18
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
|
19
|
19
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $0.90 |
||
|
20
|
20
852-12661-00-00
Duct
|
852-12661-00-00 |
— | ||
|
21
|
21
838-12666-00-00
Fastener
|
838-12666-00-00 |
— | ||
|
22
|
22
838-12629-00-00
Emblem
|
838-12629-00-00 |
— | ||
