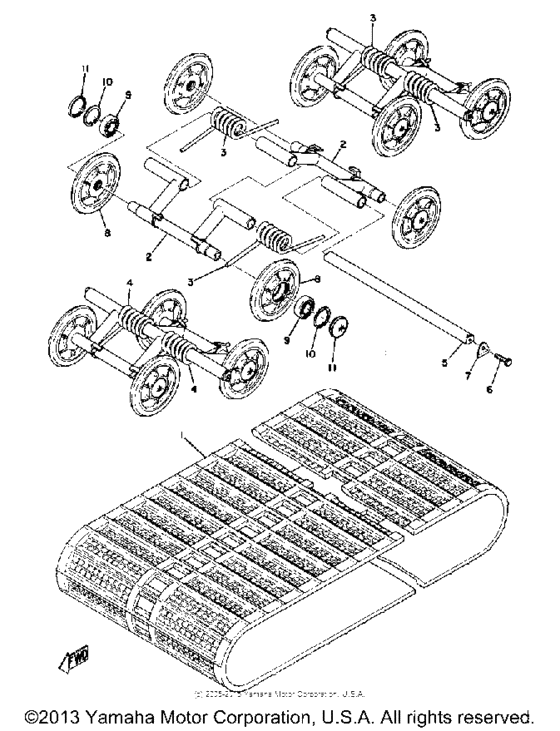

Track suspension & wheel Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
863-47110-00-00
Track Assembly (847-47110-00)
847-47110-00 |
863-47110-00-00 |
— | ||
|
2
|
2
807-47331-01-00
Arm, Pivot 1 (807-47331-00)
807-47331-00 |
807-47331-01-00 |
— | ||
|
3
|
3
905-08700-98-00
Spring, Torsion (834-47335-00)
834-47335-00 CENTER OR REAR |
905-08700-98-00 |
— | ||
|
4
|
4
905-08700-97-00
Spring, Torsion (847-47335-00)
847-47335-00 FRONT |
905-08700-97-00 |
— | ||
|
5
|
5
807-47337-00-00
Shaft, Pivot
|
807-47337-00-00 |
— | ||
|
6
|
6
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
6
|
6
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
6
|
6
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
6
|
6
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
7
|
7
806-47347-00-00
Washer, Lock
|
806-47347-00-00 |
— | ||
|
8
|
8
885-47320-01-00 Suspension Wheel Comp |
885-47320-01-00 |
from US $68.11 |
||
|
9
|
9
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
9
|
9
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
10
|
10
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
11
|
11
818-47317-01-00
Cap, Wheel
|
818-47317-01-00 |
— | ||
