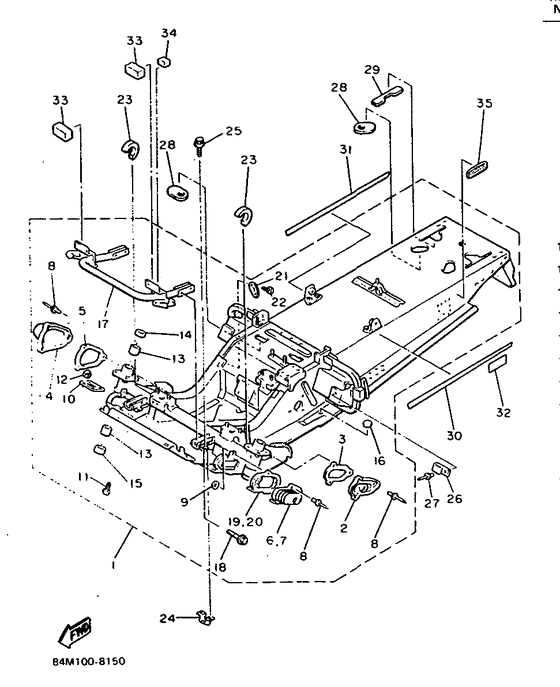

Frame Diagram Yamaha EX570 Exciter II
- Model code
- 84M
- Engine Capacity
- 569
- Year
- 1988
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
84N-21910-00-00
Frame (82M-21910-00)
|
84N-21910-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
8M6-2198F-00-00 Cover 1 |
8M6-2198F-00-00 |
from US $4.68 |
||
|
03
|
03
8M6-21998-00-00 Spacer |
8M6-21998-00-00 |
from US $2.69 |
||
|
04
|
04
82M-23818-00-00
Cover, Steering
|
82M-23818-00-00 |
— | ||
|
05
|
05
82M-77526-00-00
Washer 2
|
82M-77526-00-00 |
— | ||
|
06
|
06
82M-2198F-00-00
Cover 1 (L.h)
|
82M-2198F-00-00 |
— | ||
|
07
|
07
82M-2198G-00-00 Cover 2 (R.h) |
82M-2198G-00-00 |
US $48.71 |
||
|
08
|
08
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
09
|
09
90201-047A7-00 Washer, Plate |
90201-047A7-00 |
from US $1.35 |
||
| replacement | |||||
|
09
|
09
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
10
|
10
8M6-21917-00-00
Panel, Sub Frame 6
|
8M6-21917-00-00 |
— | ||
|
11
|
11
98906-05012-00 Screw, Bind |
98906-05012-00 |
US $1.42 |
||
| replacement | |||||
|
11
|
11
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
12
|
12
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
13
|
13
90384-36134-00 Bush, Bimetal Formed |
90384-36134-00 |
from US $6.80 |
||
|
14
|
14
93102-36232-00 Oil Seal |
93102-36232-00 |
from US $4.11 |
||
|
15
|
15
93103-36117-00 Oil Seal |
93103-36117-00 |
from US $15.58 |
||
|
16
|
16
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
|
17
|
17
84M-77512-00-00
Bumper, Front 2
|
84M-77512-00-00 |
— | ||
| replacement | |||||
|
17
|
17
84M-77512-01-00
Bumper, Front 2
|
84M-77512-01-00 |
— | ||
|
18
|
18
95801-08035-00 Bolt, Flange (2E9) |
95801-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
19
|
19
82M-2195E-00-00 Plate, String Bracket 1 (L, H |
82M-2195E-00-00 |
US $31.63 |
||
|
20
|
20
82M-2195F-00-00
Plate, String Bracket 2 (R, H
|
82M-2195F-00-00 |
— | ||
|
21
|
21
84M-21964-00-00
Patch 4
|
84M-21964-00-00 |
— | ||
|
22
|
22
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
23
|
23
82M-77277-00-00 Damper, Noise 17 |
82M-77277-00-00 |
from US $0.58 |
||
|
24
|
24
82M-21938-00-00
Reinf., Sub Frame 2
|
82M-21938-00-00 |
— | ||
|
25
|
25
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
25
|
25
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
25
|
25
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
26
|
26
90461-05003-00 Clamp |
90461-05003-00 |
from US $7.51 |
||
| replacement | |||||
|
26
|
26
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
27
|
27
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
28
|
28
82M-21965-00-00
Patch 5
|
82M-21965-00-00 |
— | ||
|
29
|
29
82M-21966-00-00
Patch 6
|
82M-21966-00-00 |
— | ||
|
30
|
30
82M-77351-00-00
Emblem 1
|
82M-77351-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
82M-77352-00-00
Emblem 2
|
82M-77352-00-00 |
— | ||
|
32
|
32
8K2-77742-00-00
Indicator 2
|
8K2-77742-00-00 |
— | ||
|
33
|
33
84M-77555-00-00 Protector 5 |
84M-77555-00-00 |
from US $1.84 |
||
|
34
|
34
84M-77556-00-00 Protector 6 |
84M-77556-00-00 |
US $2.05 |
||
| replacements | |||||
|
34
|
34
85L-7717J-00-00 Tape,5 |
85L-7717J-00-00 |
US $2.05 |
||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
