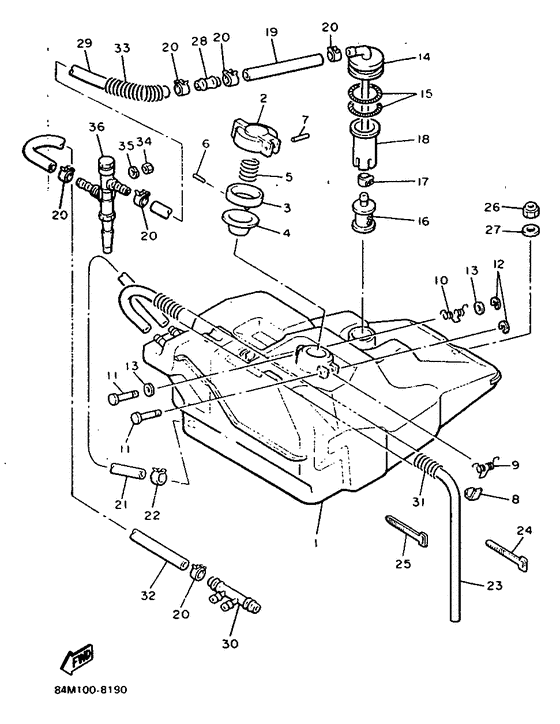

Fuel tank Diagram Yamaha EX570 Exciter II
- Model code
- 84M
- Engine Capacity
- 569
- Year
- 1988
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
82M-24111-00-00
Fuel Tank
|
82M-24111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
813-24611-01-00 Body, Cap |
813-24611-01-00 |
from US $16.74 |
||
| replacement | |||||
|
02
|
02
8A5-24611-00-00 Body, Cap |
8A5-24611-00-00 |
from US $16.74 |
||
|
03
|
03
813-24613-01-00 Disc, Cap |
813-24613-01-00 |
from US $14.73 |
||
|
04
|
04
8F7-24641-00-00 Gasket, Cap 1 |
8F7-24641-00-00 |
from US $5.53 |
||
| replacement | |||||
|
04
|
04
89A-24641-00-00 Gasket, Cap 1 |
89A-24641-00-00 |
from US $5.53 |
||
|
05
|
05
90501-20130-00 Spring, Compression |
90501-20130-00 |
from US $3.12 |
||
|
06
|
06
91609-30016-00 Pin, Spring |
91609-30016-00 |
US $2.98 |
||
| replacement | |||||
|
06
|
06
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2 |
||
|
07
|
07
916-09250-32-00 Pin, Spring |
916-09250-32-00 |
from US $2.83 |
||
|
08
|
08
83M-24628-00-00 Hook |
83M-24628-00-00 |
from US $4.53 |
||
|
09
|
09
90508-10715-00 Spring, Torsion(81E) |
90508-10715-00 |
from US $2.41 |
||
|
10
|
10
90508-08353-00 Spring, Torsion |
90508-08353-00 |
from US $4.53 |
||
|
11
|
11
90249-03017-00 Pin |
90249-03017-00 |
from US $1.35 |
||
|
12
|
12
93430-02001-00 Circlip |
93430-02001-00 |
from US $1.84 |
||
|
13
|
13
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
14
|
14
8V0-24335-01-00 Pipe, Suction 1 (8V0-24335-01) |
8V0-24335-01-00 |
US $34.11 |
||
| replacement | |||||
|
14
|
14
86M-24335-00-00 Pipe, Suction 1 (8V0-24335-01) |
86M-24335-00-00 |
US $34.11 |
||
|
15
|
15
90506-06065-00 Spring, Tension |
90506-06065-00 |
from US $1.98 |
||
| replacement | |||||
|
15
|
15
905-06062-61-00 Spring, Tension (8R4) |
905-06062-61-00 |
from US $1.98 |
||
|
16
|
16
8H5-24560-00-00 Filter Assy |
8H5-24560-00-00 |
from US $11.76 |
||
|
17
|
17
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
18
|
18
8V0-24336-00-00
Pipe, Suction 2
|
8V0-24336-00-00 |
— | ||
|
19
|
19
90446-11250-00 Hose |
90446-11250-00 |
from US $3.97 |
||
| replacement | |||||
|
19
|
19
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
20
|
20
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
21
|
21
90446-09079-00 Hose |
90446-09079-00 |
from US $7.83 |
||
| replacement | |||||
|
21
|
21
91A20-05080-00 Tube, Flexible Vinyl |
91A20-05080-00 |
from US $8.64 |
||
|
22
|
22
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
23
|
23
90446-09155-00 Tube, Flexible Vinyl |
90446-09155-00 |
US $11.05 |
||
| replacement | |||||
|
23
|
23
91A20-05145-00 Tube, Flexible Vinyl |
91A20-05145-00 |
from US $11.05 |
||
|
24
|
24
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
24
|
24
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
25
|
25
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
26
|
26
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
26
|
26
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
27
|
27
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
28
|
28
878-24379-00-00 Pipe, Joint 4 |
878-24379-00-00 |
from US $3.83 |
||
|
29
|
29
90446-11286-00 Hose |
90446-11286-00 |
from US $5.38 |
||
| replacement | |||||
|
29
|
29
91A20-07039-00 Tube, Flexible Vinyl (91A-20070 |
91A20-07039-00 |
from US $5.38 |
||
|
30
|
30
82M-24376-00-00 Pipe, Joint 1 |
82M-24376-00-00 |
from US $14.88 |
||
|
31
|
31
82K-24327-00-00 Spring, Compression |
82K-24327-00-00 |
US $7.85 |
||
| replacement | |||||
|
31
|
31
90501-084J1-00 Spring, Compression |
90501-084J1-00 |
US $7.43 |
||
|
32
|
32
90446-11247-00 Hose |
90446-11247-00 |
from US $7.51 |
||
| replacement | |||||
|
32
|
32
91A-20071-00-00 Tube, Flexible Vinyl(86X) |
91A-20071-00-00 |
from US $7.08 |
||
|
33
|
33
84M-24327-00-00 Protector, Pipe |
84M-24327-00-00 |
from US $5.56 |
||
|
34
|
34
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
34
|
34
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
35
|
35
929-02121-00-00
Washer, Spring
|
929-02121-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
36
|
36
84M-24500-00-00
Fuel Cock Assembly
|
84M-24500-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
