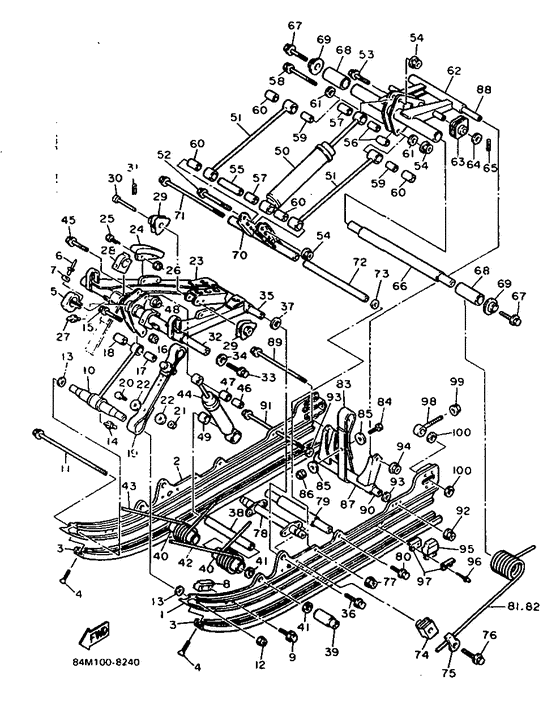

Track suspension 2 Diagram Yamaha EX570 Exciter II
- Model code
- 84M
- Engine Capacity
- 569
- Year
- 1988
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
84M-47411-00-00
Frame, Sliding 1
|
84M-47411-00-00 |
— | ||
| replacements | |||||
|
01
|
01
84M-W4741-00-00
Frame, Sliding
|
84M-W4741-00-00 |
— | ||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
84M-47412-00-00
Frame, Sliding 2
|
84M-47412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
84M-W4741-00-00
Frame, Sliding
|
84M-W4741-00-00 |
— | ||
|
03
|
03
82M-47421-01-00 Runner, Sliding 1 |
82M-47421-01-00 |
US $18.97 |
||
| replacements | |||||
|
03
|
03
82M-47421-01-XX Sliding Runner (82M-47421-00) |
82M-47421-01-XX |
US $18.14 |
||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
05
|
05
82M-47456-00-00 Damper 1 |
82M-47456-00-00 |
from US $6.02 |
||
|
06
|
06
90267-48062-00 Rivet, Blind |
90267-48062-00 |
from US $5.13 |
||
|
07
|
07
90201-057H5-00 Washer, Plate |
90201-057H5-00 |
from US $1.70 |
||
|
08
|
08
82M-47419-00-00
Bracket 7
|
82M-47419-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90105-06434-00 Bolt, Flange |
90105-06434-00 |
from US $1.13 |
||
| replacement | |||||
|
09
|
09
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
10
|
10
82M-47415-00-00 Bracket 1 |
82M-47415-00-00 |
from US $75.87 |
||
|
11
|
11
95822-08250-00 Bolt, Flange |
95822-08250-00 |
from US $7.94 |
||
| replacement | |||||
|
11
|
11
90105-08346-00 Bolt, Flange |
90105-08346-00 |
US $12.08 |
||
|
12
|
12
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
14
|
14
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
15
|
15
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
16
|
16
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
16
|
16
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
17
|
17
90387-084R5-00 Collar |
90387-084R5-00 |
from US $2.98 |
||
|
18
|
18
90380-12161-00 Bush, Solid |
90380-12161-00 |
from US $3.12 |
||
|
19
|
19
82M-47495-00-00
Stopper 1
|
82M-47495-00-00 |
— | ||
|
20
|
20
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
21
|
21
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
22
|
22
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
23
|
23
82M-47331-00-00
Arm, Pivot 1
|
82M-47331-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
8F3-47422-01-00 Runner, Sliding 2 |
8F3-47422-01-00 |
from US $14.03 |
||
|
25
|
25
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
26
|
26
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
27
|
27
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
27
|
27
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
28
|
28
8V0-47447-01-00 Hook 2 |
8V0-47447-01-00 |
from US $16.29 |
||
|
29
|
29
8V0-47448-00-00
Hook 3
|
8V0-47448-00-00 |
— | ||
|
30
|
30
90240-12107-00
Pin, Clevis (90240-12107-00)
|
90240-12107-00 |
— | ||
| replacement | |||||
|
30
|
30
90240-12136-00
Pin, Clevis (90240-12107-00)
|
90240-12136-00 |
— | ||
|
31
|
31
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
32
|
32
8A5-47465-02-00 Shaft 1 |
8A5-47465-02-00 |
from US $37.30 |
||
|
33
|
33
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
34
|
34
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
35
|
35
82M-47485-00-00 Shaft 3 |
82M-47485-00-00 |
from US $23.20 |
||
| replacement | |||||
|
35
|
35
82M-47485-02-00 Shaft 3 |
82M-47485-02-00 |
US $58.01 |
||
|
36
|
36
90105-10433-00 Bolt, Washer Based |
90105-10433-00 |
from US $1.07 |
||
| replacement | |||||
|
36
|
36
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
37
|
37
90387-105G6-00 Collar |
90387-105G6-00 |
from US $3.26 |
||
|
38
|
38
90387-160M7-00
Collar
|
90387-160M7-00 |
— | ||
|
39
|
39
90387-166M8-00
Collar
|
90387-166M8-00 |
— | ||
|
40
|
40
84M-47319-00-00
Collar
|
84M-47319-00-00 |
— | ||
|
41
|
41
90201-161E5-00 Washer, Plate |
90201-161E5-00 |
from US $2.09 |
||
|
42
|
42
84M-47471-00-00
Spring, Front 1
|
84M-47471-00-00 |
— | ||
|
43
|
43
84M-47472-00-00
Spring, Front 2
|
84M-47472-00-00 |
— | ||
|
44
|
44
84M-47481-00-00 Shock Absorber 2 |
84M-47481-00-00 |
from US $192.19 |
||
|
45
|
45
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
45
|
45
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
46
|
46
90387-084R5-00 Collar |
90387-084R5-00 |
from US $2.98 |
||
|
47
|
47
90380-12161-00 Bush, Solid |
90380-12161-00 |
from US $3.12 |
||
|
48
|
48
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
48
|
48
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
49
|
49
8V0-47371-00-00 Bush, Pivot |
8V0-47371-00-00 |
from US $6.52 |
||
|
50
|
50
84M-47480-00-00
Shock Absorber
|
84M-47480-00-00 |
— | ||
|
51
|
51
84M-47494-00-00
Rod, Relay
|
84M-47494-00-00 |
— | ||
| replacement | |||||
|
51
|
51
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
52
|
52
95821-08100-00 Bolt, Flange |
95821-08100-00 |
from US $4.11 |
||
| replacement | |||||
|
52
|
52
95817-08100-00 Bolt, Flange |
95817-08100-00 |
from US $4.11 |
||
|
53
|
53
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
53
|
53
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
54
|
54
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
54
|
54
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
55
|
55
90387-081U5-00
Collar
|
90387-081U5-00 |
— | ||
|
56
|
56
90387-084R5-00 Collar |
90387-084R5-00 |
from US $2.98 |
||
|
57
|
57
90380-12161-00 Bush, Solid |
90380-12161-00 |
from US $3.12 |
||
|
58
|
58
90105-08506-00
Bolt, Washer Based
|
90105-08506-00 |
— | ||
| replacement | |||||
|
58
|
58
95817-08095-00 Bolt, Flange(8Bt) |
95817-08095-00 |
from US $3.40 |
||
|
59
|
59
90387-081U4-00
Collar
|
90387-081U4-00 |
— | ||
|
60
|
60
90380-12169-00
Bush, Solid
|
90380-12169-00 |
— | ||
|
61
|
61
90201-081J7-00 Washer, Plate |
90201-081J7-00 |
from US $1.98 |
||
| replacement | |||||
|
61
|
61
90201-08049-00 Washer, Plate |
90201-08049-00 |
from US $1.98 |
||
|
62
|
62
82M-47332-00-00
Arm, Pivot 2
|
82M-47332-00-00 |
— | ||
| replacement | |||||
|
62
|
62
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
63
|
63
8V0-47446-01-00 Hook 1 |
8V0-47446-01-00 |
from US $16.59 |
||
| replacement | |||||
|
63
|
63
86S-47446-01-00 Hook 1 |
86S-47446-01-00 |
US $16.59 |
||
|
64
|
64
90201-140L2-00 Washer, Plate |
90201-140L2-00 |
from US $1.84 |
||
| replacement | |||||
|
64
|
64
90201-14411-00 Washer, Plate |
90201-14411-00 |
from US $1.84 |
||
|
65
|
65
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
65
|
65
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
66
|
66
8L6-47475-00-00
Shaft 2
|
8L6-47475-00-00 |
— | ||
|
67
|
67
90106-10771-00
Bolt
|
90106-10771-00 |
— | ||
|
68
|
68
8V0-47365-00-00 Collar 1 |
8V0-47365-00-00 |
US $16.45 |
||
|
69
|
69
8V0-47384-00-00
Washer
|
8V0-47384-00-00 |
— | ||
|
70
|
70
84M-47416-00-00
Bracket 2
|
84M-47416-00-00 |
— | ||
| replacement | |||||
|
70
|
70
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
71
|
71
95822-08250-00 Bolt, Flange |
95822-08250-00 |
from US $7.94 |
||
| replacement | |||||
|
71
|
71
90105-08346-00 Bolt, Flange |
90105-08346-00 |
US $12.08 |
||
|
72
|
72
903-87086-32-00
Collar
|
903-87086-32-00 |
— | ||
|
73
|
73
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
74
|
74
84M-47447-00-00 Hook 2 |
84M-47447-00-00 |
from US $10.94 |
||
|
75
|
75
84M-47467-00-00 Plate, Guide |
84M-47467-00-00 |
US $7.61 |
||
| replacement | |||||
|
75
|
75
87M-47467-00-00 Plate, Guide |
87M-47467-00-00 |
US $7.61 |
||
|
76
|
76
90105-08432-00 Bolt, Washer Based |
90105-08432-00 |
from US $0.85 |
||
| replacement | |||||
|
76
|
76
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
77
|
77
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
77
|
77
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
78
|
78
84M-47451-00-00
Bar, Suspension
|
84M-47451-00-00 |
— | ||
| replacement | |||||
|
78
|
78
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
79
|
79
8V0-47486-00-00 Shaft 4 |
8V0-47486-00-00 |
US $71.14 |
||
|
80
|
80
90105-08432-00 Bolt, Washer Based |
90105-08432-00 |
from US $0.85 |
||
| replacement | |||||
|
80
|
80
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
81
|
81
84M-47473-00-00 Spring, Rear 1 |
84M-47473-00-00 |
US $140.04 |
||
|
82
|
82
84M-47474-00-00 Spring, Rear 2 |
84M-47474-00-00 |
US $129.53 |
||
|
83
|
83
84M-47496-00-00
Stopper, 2 (82M-47496-00)
|
84M-47496-00-00 |
— | ||
| replacement | |||||
|
83
|
83
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
84
|
84
97002-06035-00 Bolt |
97002-06035-00 |
from US $1.44 |
||
| replacement | |||||
|
84
|
84
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
85
|
85
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
85
|
85
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
86
|
86
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
86
|
86
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
87
|
87
82M-47417-00-00 Bracket 3 |
82M-47417-00-00 |
from US $44.89 |
||
|
88
|
88
90387-083G6-00 Collar |
90387-083G6-00 |
from US $7.79 |
||
|
89
|
89
97022-08220-00
Bolt (83L)
|
97022-08220-00 |
— | ||
| replacement | |||||
|
89
|
89
970-27082-20-00
Bolt (83X)
|
970-27082-20-00 |
— | ||
|
90
|
90
903-87086-32-00
Collar
|
903-87086-32-00 |
— | ||
|
91
|
91
95822-08250-00 Bolt, Flange |
95822-08250-00 |
from US $7.94 |
||
| replacement | |||||
|
91
|
91
90105-08346-00 Bolt, Flange |
90105-08346-00 |
US $12.08 |
||
|
92
|
92
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
92
|
92
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
93
|
93
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
94
|
94
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
94
|
94
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
95
|
95
8V0-47456-00-00
Damper 1
|
8V0-47456-00-00 |
— | ||
| replacement | |||||
|
95
|
95
89A-47456-00-00
Damper 1
|
89A-47456-00-00 |
— | ||
|
96
|
96
90267-48062-00 Rivet, Blind |
90267-48062-00 |
from US $5.13 |
||
|
97
|
97
8K2-47458-00-00 Plate, Damper |
8K2-47458-00-00 |
from US $4.53 |
||
| replacement | |||||
|
97
|
97
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
98
|
98
8K2-47479-01-00 Collar 3 |
8K2-47479-01-00 |
from US $23.66 |
||
|
99
|
99
95701-10300-00 Nut, With Washer |
95701-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
99
|
99
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
