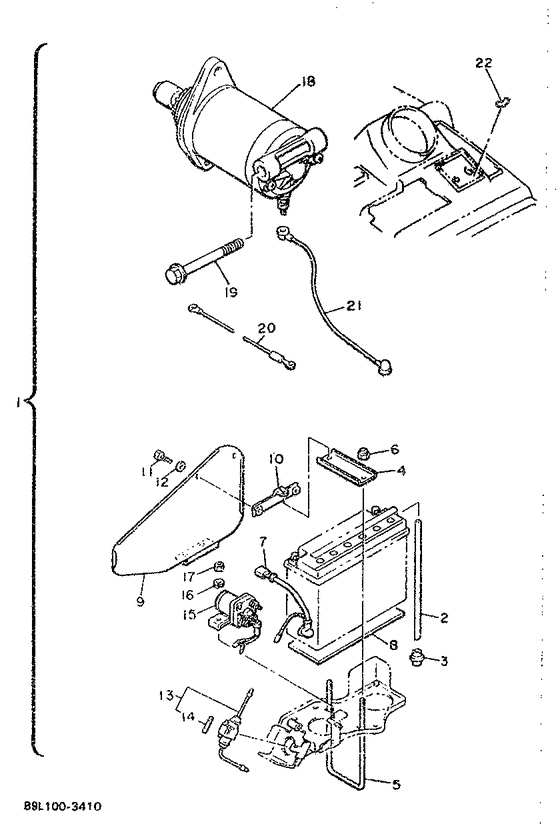

Alternate Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
89L-W8180-00-00
Electric Starter Kit
|
89L-W8180-00-00 |
— | ||
|
02
|
02
90445-087G7-00 Hose (L340) |
90445-087G7-00 |
from US $5.10 |
||
| replacement | |||||
|
02
|
02
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.10 |
||
|
03
|
03
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
04
|
04
84N-82136-00-00 Plate, Battery Fitting |
84N-82136-00-00 |
US $11.83 |
||
|
05
|
05
84N-82133-00-00 Screw, Fitting |
84N-82133-00-00 |
US $17.50 |
||
|
06
|
06
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
07
|
07
88S-82115-00-00
Wire Plus Lead
|
88S-82115-00-00 |
— | ||
| replacement | |||||
|
07
|
07
84N-82115-00-00
Wire, Plus Lead
|
84N-82115-00-00 |
— | ||
|
08
|
08
84N-82122-00-00 Seat, Battery |
84N-82122-00-00 |
from US $9.16 |
||
|
09
|
09
88S-2189H-01-00
Shield, heat
|
88S-2189H-01-00 |
— | ||
|
10
|
10
8V0-82128-00-00 Bracket, Battery |
8V0-82128-00-00 |
US $10.93 |
||
|
11
|
11
97001-05010-00 Bolt |
97001-05010-00 |
from US $1.06 |
||
| replacements | |||||
|
11
|
11
97095-05010-00 Bolt |
97095-05010-00 |
from US $1.78 |
||
|
11
|
11
97027-05010-00 Bolt, Hexagon |
97027-05010-00 |
from US $1.70 |
||
|
12
|
12
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
13
|
13
88T-82150-00-00 Fuse Holder Assembly |
88T-82150-00-00 |
US $27.32 |
||
| replacement | |||||
|
13
|
13
1E6-82150-00-00
Fuse Holder Assembly
|
1E6-82150-00-00 |
— | ||
|
14
|
14
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.70 |
||
|
15
|
15
8J9-81940-10-00 Starter Relay Assy |
8J9-81940-10-00 |
US $149 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
18
|
18
84N-81800-50-00 Starting Motor Assy(see fig.41) |
84N-81800-50-00 |
from US $538.78 |
||
| replacements | |||||
|
18
|
18
8BB-81800-01-00 Starting Motor Assy(see fig.41) |
8BB-81800-01-00 |
from US $538.78 |
||
|
18
|
18
8BB-81800-02-00 Starting Motor Assy(see fig.41) |
8BB-81800-02-00 |
from US $538.78 |
||
|
19
|
19
95811-08080-00 Bolt, Flange (4G0) |
95811-08080-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
95817-08080-00 Bolt, Flange |
95817-08080-00 |
from US $1.42 |
||
|
20
|
20
8AW-82116-00-00
Wire, Minus Lead
|
8AW-82116-00-00 |
— | ||
| replacement | |||||
|
20
|
20
8BB-82116-00-00 Wire, Minus Lead |
8BB-82116-00-00 |
US $42.55 |
||
|
21
|
21
84N-82117-01-00 Wire, Lead |
84N-82117-01-00 |
US $38.56 |
||
| replacement | |||||
|
21
|
21
8CL-82117-00-00 Wire, Lead |
8CL-82117-00-00 |
US $34.88 |
||
|
22
|
22
8V0-77741-20-00 Indicator 1(starting motor) |
8V0-77741-20-00 |
from US $2.95 |
||
