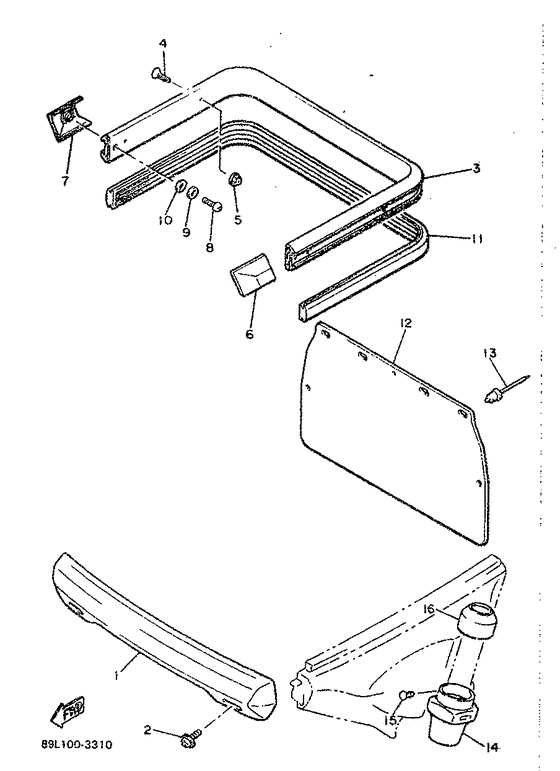

Bumper Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
82M-77511-00-00
Bumper, Front 1
|
82M-77511-00-00 |
— | ||
|
02
|
02
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
02
|
02
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
02
|
02
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
03
|
03
89L-77541-00-00
Bumper, Rear 1
|
89L-77541-00-00 |
— | ||
|
04
|
04
90151-08054-00
Screw,flat
|
90151-08054-00 |
— | ||
| replacement | |||||
|
04
|
04
987-07080-25-00
Flat Head Screw
|
987-07080-25-00 |
— | ||
|
05
|
05
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
05
|
05
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
05
|
05
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
06
|
06
8N8-77523-00-00
End, Bumper
|
8N8-77523-00-00 |
— | ||
|
07
|
07
8N8-77524-00-00 End, Bumper |
8N8-77524-00-00 |
US $48.71 |
||
|
08
|
08
98501-06014-00 Screw, Pan Head(3Vk) |
98501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
89L-77516-00-00 Bush, Rubber 2 |
89L-77516-00-00 |
US $34.69 |
||
|
12
|
12
8V9-77595-00-00
Flap
|
8V9-77595-00-00 |
— | ||
|
13
|
13
90267-48086-00 Rivet, Blind (4.8X19 Black) |
90267-48086-00 |
from US $1.84 |
||
|
14
|
14
82M-77551-00-00 Protector 1 |
82M-77551-00-00 |
US $51.01 |
||
|
15
|
15
90269-04025-00 Rivet |
90269-04025-00 |
from US $1.70 |
||
|
16
|
16
82M-77554-01-00 Protector 4 |
82M-77554-01-00 |
from US $26.21 |
||
