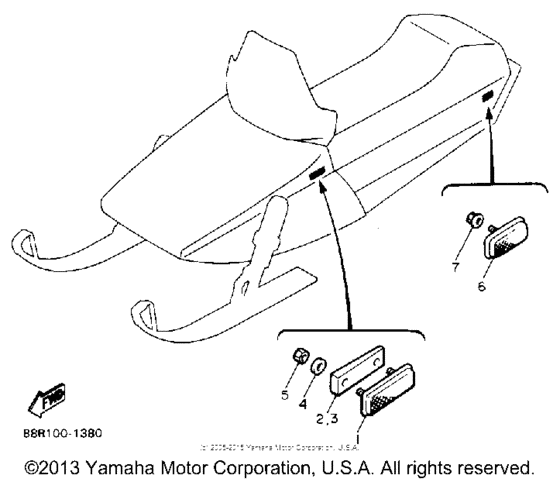

Electrical (3) Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81E-85110-00-00
Reflector Assembly
|
81E-85110-00-00 |
— | ||
|
2
|
2
82M-85115-00-00 Base, Reflector |
82M-85115-00-00 |
US $15.08 |
||
|
3
|
3
82M-85115-50-00 Base, Reflector |
82M-85115-50-00 |
US $15.41 |
||
|
4
|
4
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
4
|
4
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
4
|
4
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
5
|
5
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
5
|
5
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
6
|
6
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
7
|
7
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
