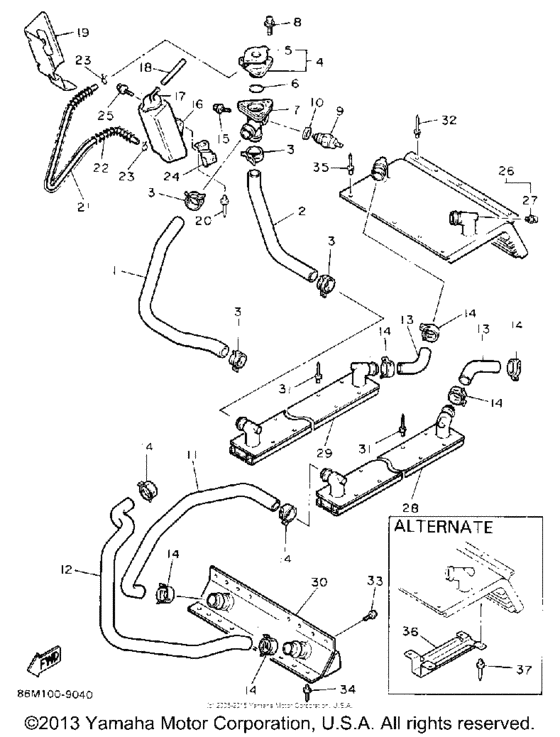

Radiator - hose Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86M-12482-00-00
Pipe 2
|
86M-12482-00-00 |
— | ||
|
2
|
2
82M-12483-00-00
Pipe 3
|
82M-12483-00-00 |
— | ||
|
3
|
3
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
4
|
4
1FK-12590-00-00 Support, Filler Neck |
1FK-12590-00-00 |
from US $66.98 |
||
| replacement | |||||
|
4
|
4
1FK-12591-00-00 Support, Filler Neck |
1FK-12591-00-00 |
from US $66.98 |
||
|
5
|
5
1AA-12462-00-00 Cap, Radiator |
1AA-12462-00-00 |
from US $35.56 |
||
| replacement | |||||
|
5
|
5
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
6
|
6
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
7
|
7
86M-12581-00-00
Joint, Hose 1
|
86M-12581-00-00 |
— | ||
|
8
|
8
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
9
|
9
83M-82560-01-00 Thermo Switch Assembly |
83M-82560-01-00 |
from US $53.21 |
||
|
10
|
10
90430-16152-00 Gasket |
90430-16152-00 |
from US $3.40 |
||
|
11
|
11
82M-12484-00-00
Pipe 4
|
82M-12484-00-00 |
— | ||
|
12
|
12
82M-12485-01-00
Pipe 5
|
82M-12485-01-00 |
— | ||
|
13
|
13
82M-12476-00-00 Pipe 6 |
82M-12476-00-00 |
US $24.30 |
||
|
14
|
14
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
15
|
15
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
16
|
16
82M-21871-00-00 Tank, Recovery |
82M-21871-00-00 |
US $62.64 |
||
|
17
|
17
81E-21815-00-00 Cap |
81E-21815-00-00 |
from US $13.18 |
||
|
18
|
18
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.34 |
||
|
19
|
19
82M-21873-00-00
Bracket, Recovery Tank
|
82M-21873-00-00 |
— | ||
|
20
|
20
90267-48125-00 Rivet, Blind |
90267-48125-00 |
from US $3.37 |
||
|
21
|
21
90445-09226-00 Hose (L420) |
90445-09226-00 |
from US $6.52 |
||
| replacements | |||||
|
21
|
21
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
21
|
21
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
22
|
22
81E-24327-00-00 Spring, Compression |
81E-24327-00-00 |
from US $4.96 |
||
| replacement | |||||
|
22
|
22
90501-083J9-00 Spring, Compression |
90501-083J9-00 |
from US $4.96 |
||
|
23
|
23
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
24
|
24
89J-1244E-00-00 Bracket 1 |
89J-1244E-00-00 |
from US $5.88 |
||
|
25
|
25
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
26
|
26
82M-12440-01-00
Heat Exchanger Assembly
|
82M-12440-01-00 |
— | ||
| replacement | |||||
|
26
|
26
82M-12440-02-00
Heat Exchanger Assy
|
82M-12440-02-00 |
— | ||
|
27
|
27
82M-1247H-00-00
Screw,breed
|
82M-1247H-00-00 |
— | ||
|
28
|
28
82M-1240E-01-00
Heat Exchanger
|
82M-1240E-01-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
82M-1240F-01-00
Heat Exchanger
|
82M-1240F-01-00 |
— | ||
| replacements | |||||
|
29
|
29
82M-1240F-02-00
GASKET,HSNG CVR 1
|
82M-1240F-02-00 |
— | ||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
82M-1241A-00-00 Heat Exchanger Assembly 4 |
82M-1241A-00-00 |
US $373.81 |
||
|
31
|
31
90267-48060-00 Rivet, Blind (4.8X12.9 Black)4.8X12.9 BLACK |
90267-48060-00 |
from US $2.69 |
||
|
32
|
32
90267-48132-00 Rivet, Blind (4.7X19.5 Silver)4.7X19.5 SILVER |
90267-48132-00 |
from US $1.60 |
||
| replacement | |||||
|
32
|
32
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)4.7X19.5 SILVER |
90267-47197-00 |
from US $1.98 |
||
|
33
|
33
90154-06036-00 Screw, Bind |
90154-06036-00 |
from US $1.42 |
||
| replacements | |||||
|
33
|
33
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
33
|
33
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
34
|
34
90267-48141-00 Rivet, Blind (4.8X18.6 Black)4.8X18.6 BLACK |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
90267-48018-00 Rivet, Blind (4.8X18.6 Black)4.8X18.6 BLACK |
90267-48018-00 |
from US $1.28 |
||
|
35
|
35
90267-48117-00 Rivet, Blind |
90267-48117-00 |
US $6.08 |
||
|
36
|
36
82M-21978-00-00
New Genuine Part
AP |
82M-21978-00-00 |
— | ||
|
37
|
37
90267-48060-00 Rivet, Blind (4.8X12.9 Black)4.8X12.9 BLACK AP |
90267-48060-00 |
from US $2.69 |
||
