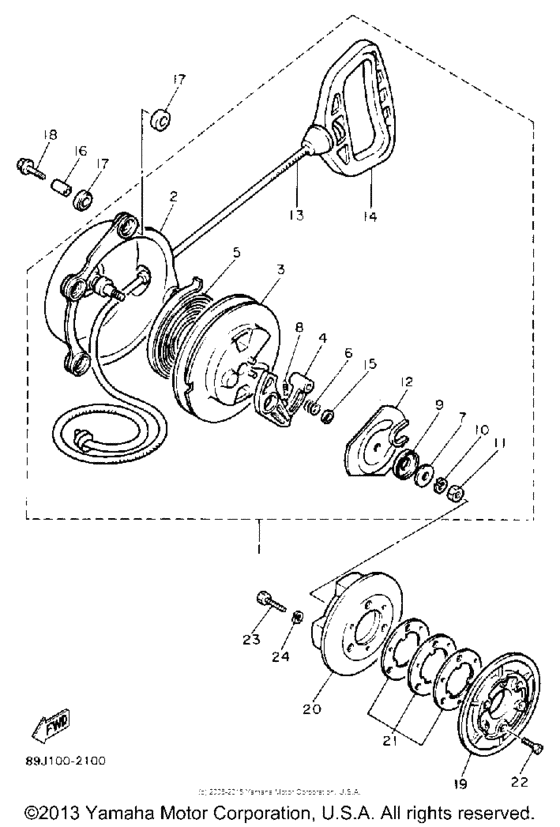

Starter Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84M-15710-01-00
Starter Assy
|
84M-15710-01-00 |
— | ||
|
2
|
2
82M-15711-00-00
Case, Starter
|
82M-15711-00-00 |
— | ||
|
3
|
3
8F3-15714-01-00 Drum, Sheave |
8F3-15714-01-00 |
from US $40.90 |
||
|
4
|
4
8F3-15741-01-00 Pawl, Drive |
8F3-15741-01-00 |
from US $12.75 |
||
|
5
|
5
8F3-15713-01-00 Spring, Starter |
8F3-15713-01-00 |
from US $26.64 |
||
|
6
|
6
8F3-15715-00-00 Spring, Friction |
8F3-15715-00-00 |
from US $3.97 |
||
|
7
|
7
8F3-15739-01-00 Washer, Thrust |
8F3-15739-01-00 |
from US $3.83 |
||
|
8
|
8
8F3-15734-00-00 Spring, Return |
8F3-15734-00-00 |
from US $7.51 |
||
|
9
|
9
82M-15716-00-00
Plate, Drive
|
82M-15716-00-00 |
— | ||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
12
|
12
8G5-15739-00-00 Washer, Thrust |
8G5-15739-00-00 |
from US $1.70 |
||
|
13
|
13
857-15751-00-00 Wire, Starter(Braided) (6Mm/1 |
857-15751-00-00 |
from US $17.28 |
||
| replacement | |||||
|
13
|
13
89A-15751-00-00 Wire, Starter |
89A-15751-00-00 |
from US $17.28 |
||
|
14
|
14
8F3-15755-00-00 Handle, Starter |
8F3-15755-00-00 |
from US $14.17 |
||
|
15
|
15
82M-15779-00-00 Collor |
82M-15779-00-00 |
from US $2.69 |
||
|
16
|
16
90387-063E9-00 Collar |
90387-063E9-00 |
from US $5.04 |
||
|
17
|
17
90385-12036-00 Bush |
90385-12036-00 |
from US $5.81 |
||
|
18
|
18
90119-06211-00 Bolt, With Washer |
90119-06211-00 |
from US $1.70 |
||
|
19
|
19
82M-12618-01-00
Pulley 1
|
82M-12618-01-00 |
— | ||
|
20
|
20
82M-15723-00-00
Pulley, Starter
|
82M-15723-00-00 |
— | ||
|
21
|
21
82M-15721-00-00 Shim (T=0.5)UR |
82M-15721-00-00 |
from US $4.53 |
||
| replacement | |||||
|
21
|
21
8CA-15721-00-00 Shim (0.5Mm)UR |
8CA-15721-00-00 |
from US $4.53 |
||
|
21
|
21
82M-15722-00-00 Shim (T=1.0)UR |
82M-15722-00-00 |
from US $4.53 |
||
| replacement | |||||
|
21
|
21
8CA-15721-00-00 Shim (0.5Mm)UR |
8CA-15721-00-00 |
from US $4.53 |
||
|
22
|
22
98702-06020-00 Screw, Flat Head |
98702-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
98707-06020-00 Screw, Flat Head |
98707-06020-00 |
from US $1.56 |
||
|
23
|
23
97011-08030-00 Bolt (97001-08030-00) |
97011-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
