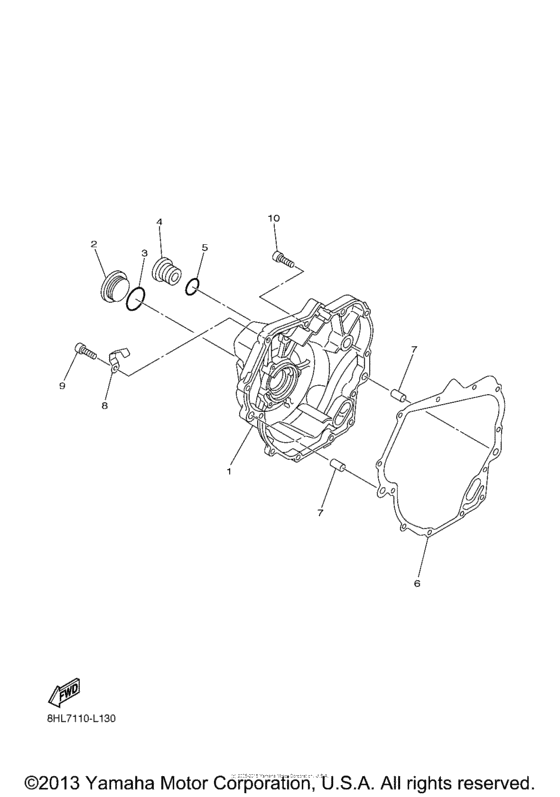

Crankcase cover (1) Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8JH2
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HF-15421-00-00 Cover, Crankcase 2 |
8HF-15421-00-00 |
from US $118.82 |
||
|
2
|
2
90340-32080-00 Plug, Straight Screw |
90340-32080-00 |
from US $4.53 |
||
| replacements | |||||
|
2
|
2
903-40321-40-00 Plug, Straight Screw(3Jb) |
903-40321-40-00 |
from US $8.36 |
||
|
2
|
2
903-40321-16-00 Plug, Straight Screw (Plastic, Silver) |
903-40321-16-00 |
from US $8.36 |
||
|
3
|
3
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.70 |
||
|
4
|
4
90340-14117-00 Plug, Straight Screw |
90340-14117-00 |
from US $4.11 |
||
|
5
|
5
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
6
|
6
8ES-15461-01-00 Gasket, Crankcase Cover 2 |
8ES-15461-01-00 |
from US $12.47 |
||
|
7
|
7
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
8
|
8
90462-08225-00 Clamp |
90462-08225-00 |
from US $5.67 |
||
|
9
|
9
913-12060-25-00
Bolt
|
913-12060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
10
|
10
90110-06231-00 Bolt, Hexagon Socket Head |
90110-06231-00 |
from US $1.84 |
||
| replacements | |||||
|
10
|
10
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
10
|
10
90110-06240-00 Bolt, Hexagon Socket Head |
90110-06240-00 |
from US $1.84 |
||
