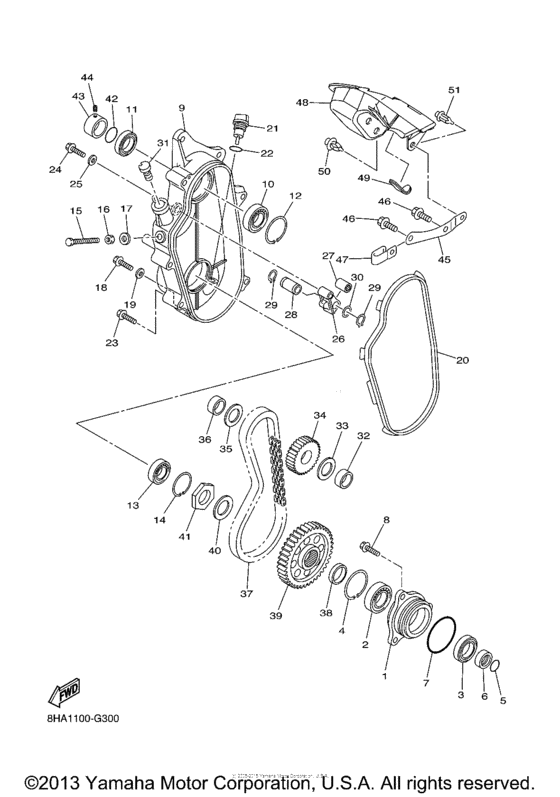

Track drive (2) Diagram Yamaha FX10/ RFX10 FX Nytro M-TX
- Model code
- 8HA5
- Engine Capacity
- 1049
- Year
- 2008
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-47633-00-00 Housing, Bearing 2 |
8GL-47633-00-00 |
from US $42.14 |
||
|
2
|
2
93306-205A9-00 Bearing |
93306-205A9-00 |
from US $28.90 |
||
|
3
|
3
93102-35010-00 Oil Seal |
93102-35010-00 |
from US $6.94 |
||
|
4
|
4
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
5
|
5
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
6
|
6
90387-2508C-00 Collar |
90387-2508C-00 |
from US $14.45 |
||
|
7
|
7
93210-60426-00 O-Ring |
93210-60426-00 |
from US $6.09 |
||
|
8
|
8
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
9
|
9
8GL-47543-00-00 Cap, HousingUP TO 8HA-0000898 |
8GL-47543-00-00 |
from US $175.46 |
||
| replacement | |||||
|
9
|
9
8GL-47543-01-00 Cap, HousingUP TO 8HA-0000898 |
8GL-47543-01-00 |
from US $175.46 |
||
|
9
|
9
8GL-47543-01-00 Cap, Housing8HA-0000899~ |
8GL-47543-01-00 |
from US $175.46 |
||
|
9
|
9
8HA-47543-00-00 Cap, Housing |
8HA-47543-00-00 |
from US $185.13 |
||
|
10
|
10
93306-20511-00 Bearing |
93306-20511-00 |
from US $27.06 |
||
| replacements | |||||
|
10
|
10
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.06 |
||
|
10
|
10
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
11
|
11
93102-35473-00 Oil Seal |
93102-35473-00 |
from US $24.94 |
||
|
12
|
12
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
13
|
13
93306-20402-00 Bearing |
93306-20402-00 |
from US $21.96 |
||
| replacements | |||||
|
13
|
13
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $28.19 |
||
|
13
|
13
93306-20458-00 Bearing |
93306-20458-00 |
from US $21.96 |
||
|
14
|
14
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $2.32 |
||
|
15
|
15
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
16
|
16
95302-10700-00 Nut, Hexagon |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
16
|
16
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
17
|
17
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
18
|
18
97002-08016-00 Bolt |
97002-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
19
|
19
90210-08017-00 Washer, Seal |
90210-08017-00 |
from US $1.98 |
||
|
20
|
20
8GL-47558-00-00 Ring, Housing |
8GL-47558-00-00 |
from US $22.10 |
||
|
21
|
21
8GL-15362-00-00 Plug, Oil Level |
8GL-15362-00-00 |
from US $6.80 |
||
|
22
|
22
932-10195-22-00 O-Ring |
932-10195-22-00 |
from US $1.84 |
||
|
23
|
23
90105-08179-00 Bolt, Flange |
90105-08179-00 |
from US $2.41 |
||
|
24
|
24
90105-060A6-00 Bolt, Flange |
90105-060A6-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
25
|
25
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
26
|
26
8ES-47613-00-00 Holder |
8ES-47613-00-00 |
from US $17.43 |
||
|
27
|
27
93311-32685-00 Bearing |
93311-32685-00 |
from US $40.34 |
||
|
28
|
28
90387-22005-00 Collar |
90387-22005-00 |
from US $12.89 |
||
|
29
|
29
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.56 |
||
|
30
|
30
90201-266P2-00 Washer, Plate |
90201-266P2-00 |
from US $3.69 |
||
|
31
|
31
8GL-47575-00-00 Plug |
8GL-47575-00-00 |
from US $3.26 |
||
|
32
|
32
90387-30011-00 Collar |
90387-30011-00 |
from US $10.48 |
||
|
33
|
33
90208-30001-00 Washer, Conical Spring |
90208-30001-00 |
from US $5.24 |
||
|
34
|
34
8FA-17682-00-00 Sprocket, Chain Drive (20T)20T |
8FA-17682-00-00 |
from US $41.17 |
||
|
35
|
35
90208-26002-00 Washer, Conical Spring |
90208-26002-00 |
from US $4.39 |
||
|
36
|
36
90387-26007-00 Collar |
90387-26007-00 |
from US $10.34 |
||
|
37
|
37
948-90090-68-00 Chain (68L)68L |
948-90090-68-00 |
from US $133.19 |
||
|
38
|
38
90387-2508B-00 Collar |
90387-2508B-00 |
from US $8.38 |
||
|
39
|
39
8DW-47587-01-00 Sprocket, Chain Driven (40T)40T |
8DW-47587-01-00 |
from US $127.94 |
||
|
40
|
40
90208-22001-00 Washer, Conical Spring |
90208-22001-00 |
from US $4.39 |
||
|
41
|
41
90170-22094-00 Nut |
90170-22094-00 |
from US $7.94 |
||
|
42
|
42
93210-25642-00 O-Ring |
93210-25642-00 |
from US $2.55 |
||
|
43
|
43
90387-25018-00 Collar |
90387-25018-00 |
from US $27.63 |
||
|
44
|
44
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
44
|
44
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
45
|
45
8HA-18128-00-00 Bracket |
8HA-18128-00-00 |
from US $7.65 |
||
|
46
|
46
95022-08016-00 Bolt, Flange |
95022-08016-00 |
from US $0.83 |
||
|
47
|
47
90462-10022-00 Clamp |
90462-10022-00 |
from US $6.80 |
||
|
48
|
48
8GL-47716-00-00 Cover |
8GL-47716-00-00 |
from US $7.79 |
||
|
49
|
49
8HA-47339-00-00 Plug |
8HA-47339-00-00 |
from US $5.67 |
||
|
50
|
50
90269-08005-00 Rivet |
90269-08005-00 |
from US $1.70 |
||
|
51
|
51
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
