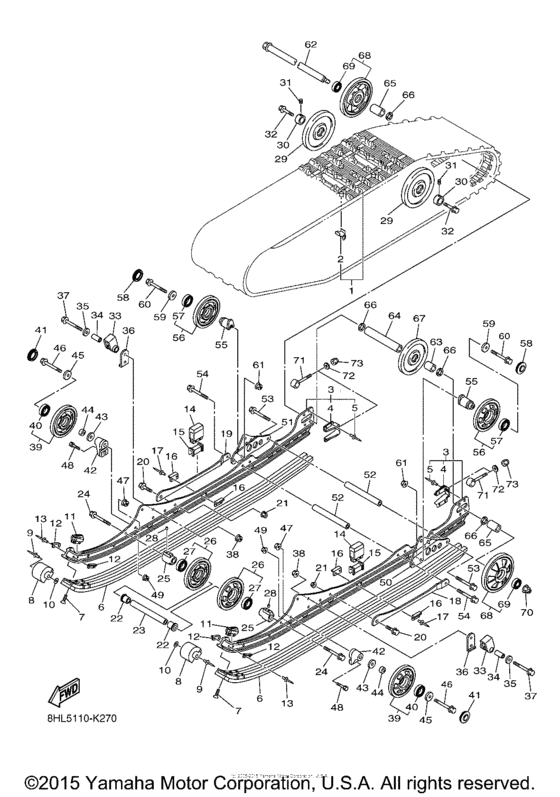

Track suspension (1) Diagram Yamaha FX10/ RFX10 FX Nytro X-TX
- Model code
- 8HL5
- Engine Capacity
- 1049
- Year
- 2011
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro X-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-47110-10-00 Track Assy |
8ET-47110-10-00 |
from US $2,141.14 |
||
| replacements | |||||
|
1
|
1
8ET-47110-30-00 Track Assy |
8ET-47110-30-00 |
US $2,030.38 |
||
|
1
|
1
SMA-TRACK-90-06 TRACK RIP SAW 15X144 |
SMA-TRACK-90-06 |
US $1,423.78 |
||
|
1
|
1
8ET-47110-11-00 TRACK ASSY |
8ET-47110-11-00 |
from US $2,030.38 |
||
|
2
|
2
8FA-47115-09-00 Metal, Slide |
8FA-47115-09-00 |
from US $8.36 |
||
|
3
|
3
8HL-W4741-10-00 Frame, Sliding |
8HL-W4741-10-00 |
from US $424.20 |
||
|
4
|
4
8DM-4741B-00-00 Bracket |
8DM-4741B-00-00 |
from US $18.70 |
||
|
5
|
5
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
6
|
6
8HL-47421-10-00 Runner, Sliding 1 |
8HL-47421-10-00 |
from US $49.74 |
||
|
7
|
7
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
8
|
8
8GL-47422-00-00 Runner, Sliding 2 |
8GL-47422-00-00 |
from US $15.16 |
||
|
9
|
9
902-67481-94-00 Rivet, Blind (4.8X28 Silver)4.8X28 SILVER |
902-67481-94-00 |
from US $1.42 |
||
|
10
|
10
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
11
|
11
8ES-47456-00-00 Damper 1 |
8ES-47456-00-00 |
from US $4.11 |
||
|
12
|
12
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
13
|
13
902-67481-99-00 Rivet, Blind (4.8X28.3)4.8X28.3 |
902-67481-99-00 |
from US $1.98 |
||
|
14
|
14
8CM-47457-00-00 Damper 2 |
8CM-47457-00-00 |
from US $8.36 |
||
|
15
|
15
8HL-47341-00-00 Spacer |
8HL-47341-00-00 |
from US $6.38 |
||
|
16
|
16
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
17
|
17
902-67481-99-00 Rivet, Blind (4.8X28.3)4.8X28.3 |
902-67481-99-00 |
from US $1.98 |
||
|
18
|
18
8HL-4741C-00-00 Frame, Sliding C |
8HL-4741C-00-00 |
from US $106.11 |
||
|
19
|
19
8HL-4741D-00-00 Frame, Sliding D |
8HL-4741D-00-00 |
from US $106.11 |
||
|
20
|
20
95812-10025-00 Bolt, Flange |
95812-10025-00 |
US $1.28 |
||
| replacement | |||||
|
20
|
20
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
21
|
21
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
22
|
22
903-86200-01-00 Bush |
903-86200-01-00 |
from US $4.82 |
||
|
23
|
23
8GN-47487-00-00 Shaft 5 |
8GN-47487-00-00 |
from US $67.70 |
||
|
24
|
24
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
25
|
25
8ES-47319-10-00 Collar |
8ES-47319-10-00 |
from US $14.73 |
||
|
26
|
26
8HF-47310-10-00 Wheel Blk 130Mm130MM |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
26
|
26
SMA-8FP38-01-BK Suspension Wheel Assy130MM |
SMA-8FP38-01-BK |
US $43.83 |
||
|
27
|
27
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
28
|
28
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
29
|
29
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
from US $29.16 |
||
|
30
|
30
8ES-47365-00-00 Collar 1 |
8ES-47365-00-00 |
from US $8.36 |
||
|
31
|
31
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
32
|
32
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
32
|
32
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
33
|
33
8HF-47446-00-00 Hook 1 |
8HF-47446-00-00 |
from US $5.95 |
||
|
34
|
34
90387-10081-00 Collar |
90387-10081-00 |
from US $9.63 |
||
|
35
|
35
90201-100S0-00 Washer, Plate |
90201-100S0-00 |
from US $3.40 |
||
|
36
|
36
8HL-47374-00-00 Washer 1 |
8HL-47374-00-00 |
from US $5.38 |
||
|
37
|
37
95812-10055-00 Bolt, Flange |
95812-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
37
|
37
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
38
|
38
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
39
|
39
8HF-47310-10-00 Wheel Blk 130Mm130MM |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
39
|
39
SMA-8FP38-01-BK Suspension Wheel Assy130MM |
SMA-8FP38-01-BK |
US $43.83 |
||
|
40
|
40
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
41
|
41
8HF-47317-00-00 Cap, Wheel |
8HF-47317-00-00 |
from US $8.08 |
||
|
42
|
42
8CM-47419-10-00 Bracket 7 |
8CM-47419-10-00 |
from US $23.94 |
||
|
43
|
43
902-01107-14-00 Washer, Plate |
902-01107-14-00 |
from US $5.10 |
||
| replacement | |||||
|
43
|
43
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
|
44
|
44
903-87100-31-00 Collar |
903-87100-31-00 |
from US $9.21 |
||
|
45
|
45
90201-101U2-00 Washer, Plate |
90201-101U2-00 |
from US $6.94 |
||
|
46
|
46
90105-10241-00 Bolt, Flange |
90105-10241-00 |
from US $5.24 |
||
|
47
|
47
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
48
|
48
901-01080-63-00 Bolt |
901-01080-63-00 |
from US $1.42 |
||
|
49
|
49
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
49
|
49
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
50
|
50
8HL-47463-00-00 Bracket 5 |
8HL-47463-00-00 |
from US $35.70 |
||
|
51
|
51
8HL-47464-00-00 Bracket 6 |
8HL-47464-00-00 |
from US $36.75 |
||
|
52
|
52
8HL-47485-00-00 Shaft 3 |
8HL-47485-00-00 |
from US $35.56 |
||
|
53
|
53
90105-08150-00 Bolt, Flange |
90105-08150-00 |
from US $1.70 |
||
|
54
|
54
901-05082-28-00 Bolt, Flange |
901-05082-28-00 |
from US $1.70 |
||
| replacement | |||||
|
54
|
54
901-05082-29-00 Bolt, Flange |
901-05082-29-00 |
from US $1.70 |
||
|
55
|
55
8ES-47419-00-00 Bracket 7 |
8ES-47419-00-00 |
from US $11.33 |
||
|
56
|
56
8HF-47310-10-00 Wheel Blk 130Mm130MM |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
56
|
56
SMA-8FP38-01-BK Suspension Wheel Assy130MM |
SMA-8FP38-01-BK |
US $43.83 |
||
|
57
|
57
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
58
|
58
8HF-47317-00-00 Cap, Wheel |
8HF-47317-00-00 |
from US $8.08 |
||
|
59
|
59
90201-101U2-00 Washer, Plate |
90201-101U2-00 |
from US $6.94 |
||
|
60
|
60
90105-10233-00 Bolt, Flange |
90105-10233-00 |
from US $2.32 |
||
|
61
|
61
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
62
|
62
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
63
|
63
90387-20015-00 Collar |
90387-20015-00 |
from US $5.81 |
||
|
64
|
64
90387-20016-00 Collar |
90387-20016-00 |
from US $14.03 |
||
|
65
|
65
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
66
|
66
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.50 |
||
|
67
|
67
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
from US $27.99 |
||
|
68
|
68
8HF-47550-10-00 Guide Wheel Assy |
8HF-47550-10-00 |
from US $72.40 |
||
| replacement | |||||
|
68
|
68
SMA-8HF38-02-BK Whl Spk Rr Axle Guide Wheel Bk |
SMA-8HF38-02-BK |
US $37.87 |
||
|
69
|
69
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
70
|
70
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
70
|
70
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
71
|
71
8DM-47479-00-00 Collar 3 |
8DM-47479-00-00 |
from US $12.04 |
||
|
72
|
72
929-02106-00-00 Washer, Plate |
929-02106-00-00 |
US $1.07 |
||
| replacement | |||||
|
72
|
72
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
73
|
73
95702-10300-00 Nut, Flange |
95702-10300-00 |
from US $2.24 |
||
| replacement | |||||
|
73
|
73
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
