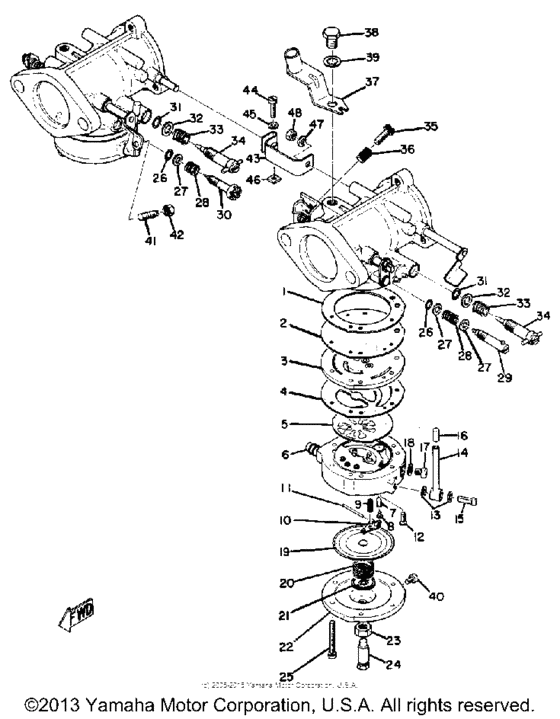

Carburetor Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-14536-00-00 Gasket |
838-14536-00-00 |
from US $6.17 |
||
| replacement | |||||
|
1
|
1
838-14536-09-00 O-RING |
838-14536-09-00 |
from US $6.17 |
||
|
1
|
1
847-14501-00-00
Carburetor Assembly 1
|
847-14501-00-00 |
— | ||
|
2
|
2
834-14541-00-00
Diaphragm, Pump
|
834-14541-00-00 |
— | ||
|
2
|
2
847-14502-00-00
Carburetor Assembly 2
|
847-14502-00-00 |
— | ||
|
3
|
3
838-14542-00-00
Body, Pump 1
|
838-14542-00-00 |
— | ||
|
4
|
4
834-14553-00-00 Gasket |
834-14553-00-00 |
from US $5.73 |
||
| replacement | |||||
|
4
|
4
834-14553-09-00 MUFFLER ASY L |
834-14553-09-00 |
from US $5.73 |
||
|
5
|
5
806-14552-01-00 Valve, Check |
806-14552-01-00 |
from US $59.22 |
||
|
6
|
6
847-14543-00-00
Body, Pump 2
|
847-14543-00-00 |
— | ||
|
7
|
7
838-14546-00-00 Valve, Needle |
838-14546-00-00 |
from US $47.75 |
||
|
8
|
8
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.66 |
||
|
9
|
9
810-14556-00-00
Spring
|
810-14556-00-00 |
— | ||
|
10
|
10
810-14547-00-00
Arm, Float
|
810-14547-00-00 |
— | ||
|
11
|
11
806-14548-00-00
Pin, Float Arm
|
806-14548-00-00 |
— | ||
|
12
|
12
98702-03008-00 Screw, Flat Head |
98702-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
98707-03008-00 Screw, Flat Head |
98707-03008-00 |
from US $2.27 |
||
|
13
|
13
806-14559-00-00
Washer
|
806-14559-00-00 |
— | ||
|
14
|
14
810-14197-02-00
Pipe, Airvent
|
810-14197-02-00 |
— | ||
|
15
|
15
8A1-14592-00-00
Screw
|
8A1-14592-00-00 |
— | ||
|
16
|
16
810-24462-01-00 Cap, Blind |
810-24462-01-00 |
US $7.51 |
||
|
17
|
17
806-14567-01-00
Screw
|
806-14567-01-00 |
— | ||
|
18
|
18
810-14597-00-00
Washer
|
810-14597-00-00 |
— | ||
|
19
|
19
810-14545-00-00 Diaphragm |
810-14545-00-00 |
from US $66.26 |
||
|
20
|
20
810-14555-00-00
Spring
|
810-14555-00-00 |
— | ||
|
21
|
21
810-14136-00-00
Seat, Spring
|
810-14136-00-00 |
— | ||
|
22
|
22
810-14544-00-00
Body, Pump 3
|
810-14544-00-00 |
— | ||
|
23
|
23
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
24
|
24
824-14565-00-00
Screw, Stop
|
824-14565-00-00 |
— | ||
|
25
|
25
824-14567-00-00
Screw
|
824-14567-00-00 |
— | ||
|
26
|
26
824-14563-00-00
O-Ring
|
824-14563-00-00 |
— | ||
|
27
|
27
838-14596-00-00 Washer |
838-14596-00-00 |
US $3.31 |
||
|
28
|
28
824-14531-00-00
Spring, Ajst Screw
|
824-14531-00-00 |
— | ||
|
29
|
29
839-14522-00-00
Screw, Adjust
|
839-14522-00-00 |
— | ||
|
30
|
30
847-14522-00-00
Screw, Adjust
|
847-14522-00-00 |
— | ||
|
31
|
31
824-14564-00-00
O-Ring
|
824-14564-00-00 |
— | ||
|
32
|
32
838-14597-00-00
Washer
|
838-14597-00-00 |
— | ||
|
33
|
33
824-14533-00-00
Spring, Ajst Screw
|
824-14533-00-00 |
— | ||
|
34
|
34
828-14521-00-00 Screw, Main Adjuster |
828-14521-00-00 |
US $20.88 |
||
|
35
|
35
810-14523-00-00
Screw, Stop
|
810-14523-00-00 |
— | ||
|
36
|
36
806-14533-00-00
Spring, Ajst Screw
|
806-14533-00-00 |
— | ||
|
37
|
37
823-14571-00-00
Bracket, Throttle
|
823-14571-00-00 |
— | ||
|
38
|
38
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
38
|
38
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
38
|
38
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
40
|
40
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
40
|
40
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
40
|
40
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
41
|
41
813-14591-00-00
Screw
|
813-14591-00-00 |
— | ||
|
42
|
42
806-14594-00-00
Nut
|
806-14594-00-00 |
— | ||
|
43
|
43
806-14588-00-00
Connector
|
806-14588-00-00 |
— | ||
|
44
|
44
844-14566-00-00
Screw, Stop
|
844-14566-00-00 |
— | ||
|
45
|
45
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
46
|
46
806-14595-00-00
Nut
|
806-14595-00-00 |
— | ||
|
47
|
47
806-14598-00-00
Washer
|
806-14598-00-00 |
— | ||
|
48
|
48
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
