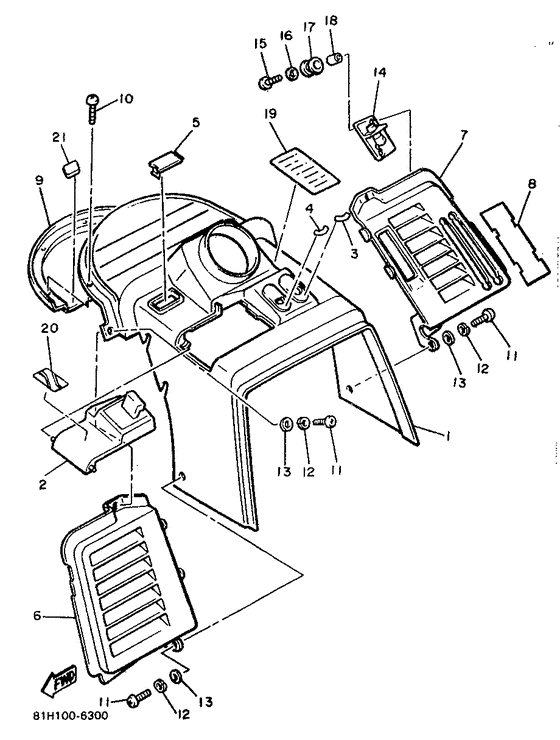

Instrument panel Diagram Yamaha PZ480 Phazer II
- Model code
- 81Y
- Engine Capacity
- 480
- Year
- 1996
- Sales region
- Europe (General) (999)
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
81Y-77711-00-00
Panel, Instrument
|
81Y-77711-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
8X9-77712-00-00 Panel, Instrument |
8X9-77712-00-00 |
US $47.99 |
||
| replacement | |||||
|
02
|
02
8X9-77712-01-00 Panel, Instrument |
8X9-77712-01-00 |
from US $25 |
||
|
03
|
03
8U9-77741-00-00 Indicator 1 |
8U9-77741-00-00 |
from US $1.56 |
||
|
04
|
04
8X1-77742-00-00
Indicator 2
|
8X1-77742-00-00 |
— | ||
|
05
|
05
8X9-77740-00-00
Grommet, Instrument Panel
|
8X9-77740-00-00 |
— | ||
|
06
|
06
8X9-77131-00-00 Louver 1 |
8X9-77131-00-00 |
from US $59.31 |
||
|
07
|
07
8X9-77132-00-00 Louver 2 |
8X9-77132-00-00 |
US $76.36 |
||
|
08
|
08
8V0-7716E-00-00 Reflector 1 |
8V0-7716E-00-00 |
US $5.51 |
||
|
09
|
09
8V0-77731-00-00
Shield 1
|
8V0-77731-00-00 |
— | ||
|
10
|
10
98906-05012-00 Screw, Bind |
98906-05012-00 |
US $1.42 |
||
| replacement | |||||
|
10
|
10
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
11
|
11
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
11
|
11
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
11
|
11
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
12
|
12
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
13
|
13
90201-05721-00 Washer, Plate |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
14
|
14
80L-77721-00-00 Bracket 1 |
80L-77721-00-00 |
from US $6.61 |
||
|
15
|
15
97706-50520-00 Screw, Tapping |
97706-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
16
|
16
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
17
|
17
90480-13423-00
Grommet
|
90480-13423-00 |
— | ||
|
18
|
18
90387-052M2-00 Collar |
90387-052M2-00 |
from US $1.67 |
||
| replacement | |||||
|
18
|
18
90387-053H3-00 Collar |
90387-053H3-00 |
from US $1.98 |
||
|
19
|
19
81Y-77763-70-00
Label, Warning 3
|
81Y-77763-70-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
81H-77715-00-00
Ormnt, Instr Pnl 1Instrument Pa
|
81H-77715-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
81H-77731-00-00 Shield 1 |
81H-77731-00-00 |
from US $2.05 |
||
