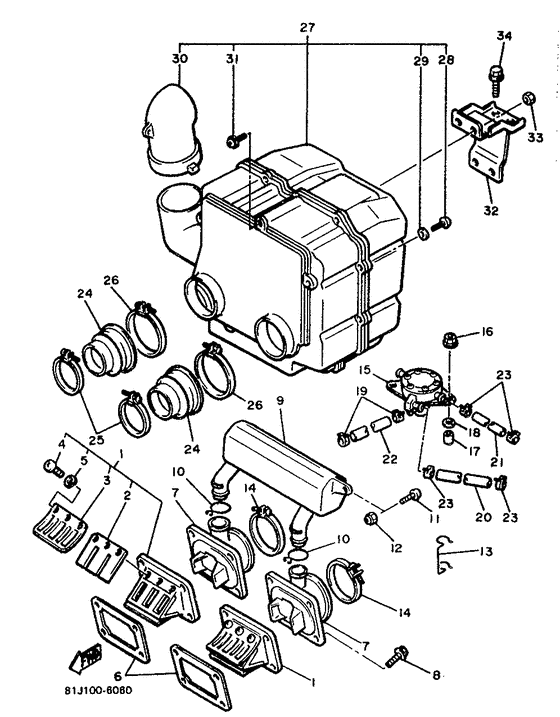

Intake Diagram Yamaha PZ480 Phazer II
- Model code
- 81Y
- Engine Capacity
- 480
- Year
- 1996
- Sales region
- Europe (General) (999)
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3R5-13610-00-00
Reed Valve Assembly
|
3R5-13610-00-00 |
— | ||
|
02
|
02
3R5-13613-00-00 Reed, Valve |
3R5-13613-00-00 |
from US $35.65 |
||
|
03
|
03
2X5-13616-00-00 Stopper, Reed Valve |
2X5-13616-00-00 |
from US $5.38 |
||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
80L-13621-00-00 Gasket, Valve Seat |
80L-13621-00-00 |
from US $4.96 |
||
| replacement | |||||
|
06
|
06
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.96 |
||
|
07
|
07
8V0-13555-00-00 Manifold, Intake |
8V0-13555-00-00 |
from US $112.60 |
||
|
08
|
08
958-02060-25-00
Bolt, Flange
|
958-02060-25-00 |
— | ||
| replacements | |||||
|
08
|
08
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
08
|
08
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
09
|
09
8V0-13581-00-00 Chamber, Air |
8V0-13581-00-00 |
US $28.08 |
||
|
10
|
10
90467-24096-00 Clip(8V0) |
90467-24096-00 |
from US $1.84 |
||
|
11
|
11
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
12
|
12
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
13
|
13
90465-10033-00
Clamp
|
90465-10033-00 |
— | ||
|
14
|
14
90460-56073-00 Band |
90460-56073-00 |
from US $5.81 |
||
| replacement | |||||
|
14
|
14
86M-13575-00-00 Band |
86M-13575-00-00 |
from US $5.81 |
||
|
15
|
15
8V0-24410-01-00 Fuel Pump Assy |
8V0-24410-01-00 |
US $196.70 |
||
| replacement | |||||
|
15
|
15
8V0-24410-02-00 Fuel Pump Assembly (8V0-24410-0 |
8V0-24410-02-00 |
US $196.70 |
||
|
16
|
16
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
17
|
17
90387-06387-00
Collar
|
90387-06387-00 |
— | ||
|
18
|
18
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
19
|
19
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
19
|
19
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
20
|
20
90445-09470-00 Hose |
90445-09470-00 |
US $10.20 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
90445-09477-00
Hose
|
90445-09477-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90445-10140-00 Hose (L280) |
90445-10140-00 |
from US $6.52 |
||
| replacement | |||||
|
22
|
22
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $4.72 |
||
|
23
|
23
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
24
|
24
8V0-14453-00-00 Joint, Air Cleaner 1 |
8V0-14453-00-00 |
from US $19.41 |
||
|
25
|
25
90460-68139-00 Clamp, Hose |
90460-68139-00 |
from US $7.37 |
||
| replacement | |||||
|
25
|
25
90460-68230-00 Clamp, Hose (29L) |
90460-68230-00 |
from US $5.06 |
||
|
26
|
26
90460-81224-00 Hose Clamp Assy |
90460-81224-00 |
from US $7.37 |
||
| replacement | |||||
|
26
|
26
90450-81001-00 Hose Clamp Assy |
90450-81001-00 |
from US $7.37 |
||
|
27
|
27
8V0-14440-00-00 Silencer Assy, Intake |
8V0-14440-00-00 |
US $115.03 |
||
| replacement | |||||
|
27
|
27
8V0-14440-01-00 Silencer Assembly, Intake |
8V0-14440-01-00 |
US $115.03 |
||
|
28
|
28
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
28
|
28
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
28
|
28
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
29
|
29
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
30
|
30
8V0-14454-00-00 Joint |
8V0-14454-00-00 |
US $7.93 |
||
|
31
|
31
90159-05122-00 Screw, Pan Head |
90159-05122-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.36 |
||
|
32
|
32
8V0-14494-00-00 Stay 2 |
8V0-14494-00-00 |
from US $20.99 |
||
|
33
|
33
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
33
|
33
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
34
|
34
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
34
|
34
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
34
|
34
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
