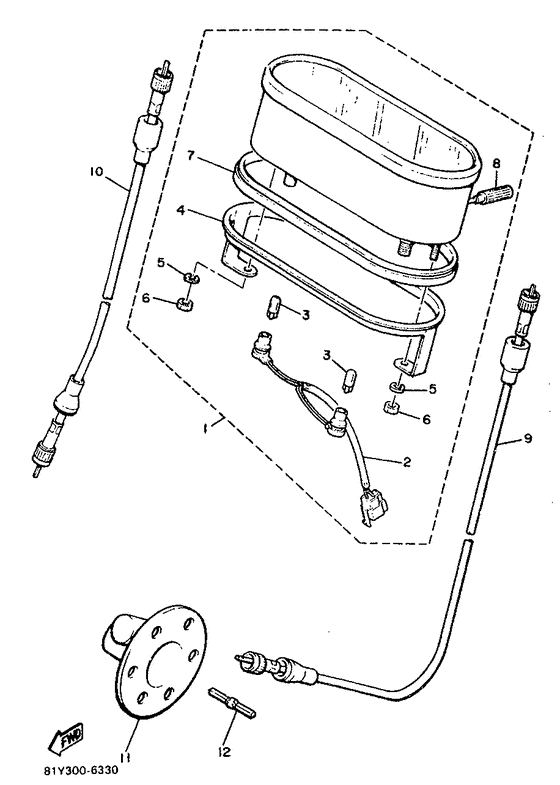

Meter Diagram Yamaha PZ480 Phazer II
- Model code
- 81Y
- Engine Capacity
- 480
- Year
- 1996
- Sales region
- Europe (General) (999)
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
80Y-83500-20-00 Speedometer AssyKm/h |
80Y-83500-20-00 |
US $190.75 |
||
| replacements | |||||
|
01
|
01
81R-83500-20-00
Speedometer Assy
Km/h |
81R-83500-20-00 |
— | ||
|
01
|
01
999-99999-99-00
Not Available
Km/h |
999-99999-99-00 |
— | ||
|
02
|
02
8V0-83536-00-00 Socket, Meter |
8V0-83536-00-00 |
from US $27.47 |
||
| replacement | |||||
|
02
|
02
8U9-83536-00-00 Socket, Meter |
8U9-83536-00-00 |
from US $27.47 |
||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
04
|
04
8K4-83519-01-00
Bracket, Meter
|
8K4-83519-01-00 |
— | ||
|
05
|
05
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
06
|
06
95302-05600-00 Nut, Hexagon |
95302-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
07
|
07
8K4-83513-00-00 Damper |
8K4-83513-00-00 |
US $23.62 |
||
|
08
|
08
8L8-83578-00-00
Knob, Trip Meter
|
8L8-83578-00-00 |
— | ||
|
09
|
09
8K4-83550-00-00
Speedometer Cable Assembly
|
8K4-83550-00-00 |
— | ||
|
10
|
10
8A1-83550-02-00
Tachometer Cable Assembly
|
8A1-83550-02-00 |
— | ||
|
11
|
11
8L8-47700-00-00
Meter Gear Housing Comp
|
8L8-47700-00-00 |
— | ||
|
12
|
12
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
