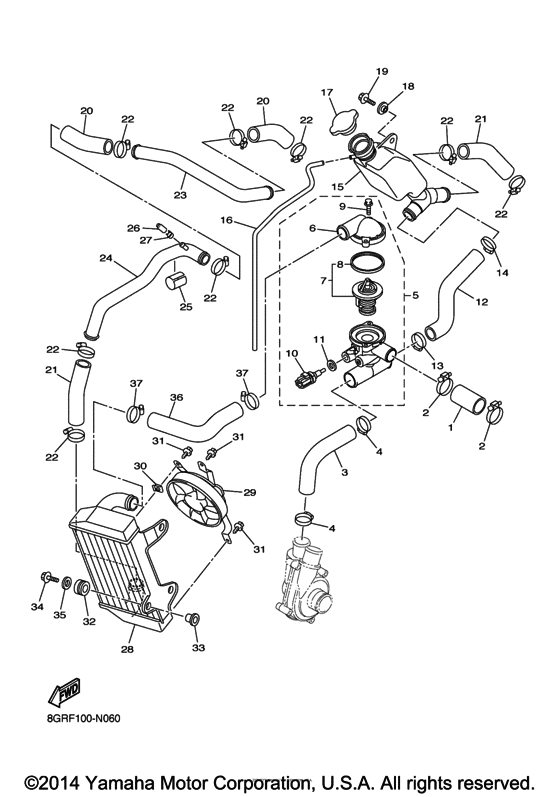

Radiator & hose Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-1243E-00-00 Hose 2 |
8GC-1243E-00-00 |
from US $1.98 |
||
|
2
|
2
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
3
|
3
8GC-1244G-00-00 Hose, 4 |
8GC-1244G-00-00 |
from US $10.06 |
||
|
4
|
4
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
5
|
5
8GC-12580-10-00 Joint Assy |
8GC-12580-10-00 |
from US $133.88 |
||
|
6
|
6
5VX-12413-00-00 Cover, Thermostat |
5VX-12413-00-00 |
from US $17.57 |
||
|
7
|
7
8FN-12410-00-00 Thermostat Assy |
8FN-12410-00-00 |
from US $46.01 |
||
|
8
|
8
8EK-12412-00-00 Seal, Thermostat |
8EK-12412-00-00 |
from US $1.98 |
||
|
9
|
9
95822-06020-00 Bolt, Flange |
95822-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
9
|
9
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
10
|
10
5YP-85790-00-00 Thermosensor Assy |
5YP-85790-00-00 |
from US $30.18 |
||
|
11
|
11
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
12
|
12
8GC-1243F-00-00 Hose, 3 |
8GC-1243F-00-00 |
from US $14.31 |
||
|
13
|
13
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
14
|
14
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
15
|
15
8GC-1249B-00-00 Tank, Reserve |
8GC-1249B-00-00 |
from US $35.23 |
||
|
16
|
16
90445-08022-00 Hose |
90445-08022-00 |
from US $4.82 |
||
|
17
|
17
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
17
|
17
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
17
|
17
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $29.88 |
||
|
18
|
18
90387-06024-00 Collar |
90387-06024-00 |
from US $2.55 |
||
|
19
|
19
95822-06020-00 Bolt, Flange |
95822-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
19
|
19
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
20
|
20
8GC-12476-00-00 Pipe 6 |
8GC-12476-00-00 |
from US $6.80 |
||
|
21
|
21
8GC-12477-00-00 Pipe 7 |
8GC-12477-00-00 |
from US $8.22 |
||
|
22
|
22
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
23
|
23
8GC-12564-00-00 Pipe, Water |
8GC-12564-00-00 |
from US $21.96 |
||
|
24
|
24
8GC-12481-00-00 Pipe 1 |
8GC-12481-00-00 |
from US $27.34 |
||
|
25
|
25
8GC-12465-00-00 Damper, Radiator |
8GC-12465-00-00 |
from US $7.08 |
||
|
26
|
26
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.32 |
||
|
27
|
27
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
28
|
28
8GC-12461-00-00 Radiator Comp |
8GC-12461-00-00 |
from US $200.33 |
||
|
29
|
29
8GJ-12405-00-00 Blower Assy |
8GJ-12405-00-00 |
from US $197.57 |
||
|
30
|
30
5SL-12671-00-00 Nut 1 |
5SL-12671-00-00 |
from US $3.40 |
||
|
31
|
31
5GJ-12675-00-00 Bolt, Blower Holding |
5GJ-12675-00-00 |
from US $1.34 |
||
|
32
|
32
90480-15528-00 Grommet |
90480-15528-00 |
from US $1.84 |
||
|
33
|
33
90387-06065-00 Collar |
90387-06065-00 |
from US $8.53 |
||
|
34
|
34
95022-06030-00 Bolt, Flange |
95022-06030-00 |
from US $1.42 |
||
|
35
|
35
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
36
|
36
8GC-1248A-00-00 Pipe 8 |
8GC-1248A-00-00 |
from US $11.05 |
||
|
37
|
37
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
