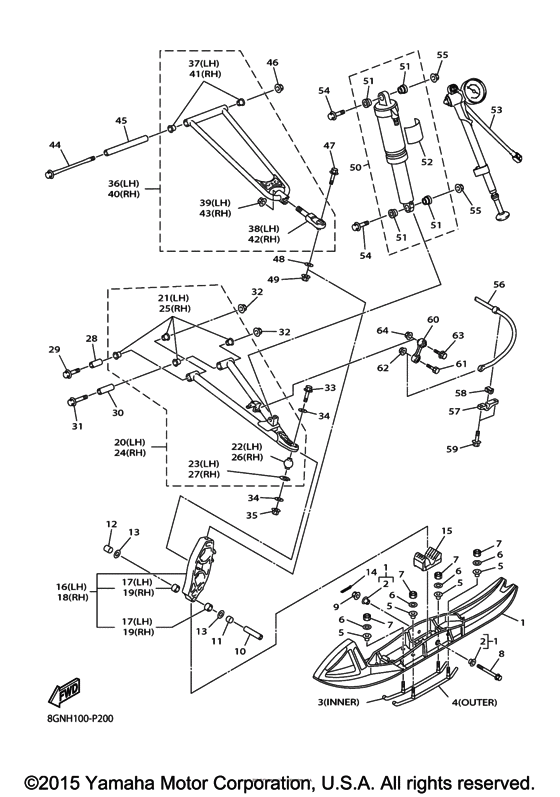

Ski Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNK
- Engine Capacity
- 499
- Year
- 2016
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HW-F3710-00-00 Gen Ii 135Mm Tuner S |
8HW-F3710-00-00 |
US $156.15 |
||
| replacements | |||||
|
1
|
1
SMA-8HWDS-00-BK 8JH CARBIDE PAIR - |
SMA-8HWDS-00-BK |
US $105.53 |
||
|
1
|
1
SMA-8JPDS-00-00 Ski Tuner Dual Ski 135Mm Bk |
SMA-8JPDS-00-00 |
US $126.50 |
||
|
2
|
2
8JH-F3754-00-00 Collar 1 |
8JH-F3754-00-00 |
from US $10.17 |
||
| replacements | |||||
|
2
|
2
8JH-23754-00-00 Collar, 1 |
8JH-23754-00-00 |
from US $11.76 |
||
|
2
|
2
8EX-F3754-00-00 Collar 1 |
8EX-F3754-00-00 |
from US $10.80 |
||
|
2
|
2
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
2
|
2
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
3
|
3
8JH-F3731-00-00 Runner 1 |
8JH-F3731-00-00 |
from US $86.92 |
||
| replacements | |||||
|
3
|
3
SMA-8JH31-02-10
Rnr Runner 9Mm 2" Carbide
|
SMA-8JH31-02-10 |
— | ||
|
3
|
3
SMA-8JH31-02-00 8JH CARBIDE PAIR - 9 |
SMA-8JH31-02-00 |
US $80.84 |
||
|
4
|
4
8JH-F3732-00-00 Runner 2 |
8JH-F3732-00-00 |
from US $65.30 |
||
| replacements | |||||
|
4
|
4
SMA-8JH31-01-10
Rnr Runner No Carbide
|
SMA-8JH31-01-10 |
— | ||
|
4
|
4
SMA-8JH31-01-00 8JH RUNNER SET - NO |
SMA-8JH31-01-00 |
US $60.71 |
||
|
5
|
5
8JH-F3751-00-00 Bush, Ski 1 |
8JH-F3751-00-00 |
from US $5.71 |
||
| replacement | |||||
|
5
|
5
90387-08064-00 Collar |
90387-08064-00 |
from US $3.12 |
||
|
6
|
6
8JH-F3738-00-00 Washer 2 |
8JH-F3738-00-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90201-08053-00 Washer, Plate |
90201-08053-00 |
from US $1.70 |
||
|
7
|
7
8JH-F3778-00-00 Nut |
8JH-F3778-00-00 |
from US $1.57 |
||
| replacement | |||||
|
7
|
7
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
8
|
8
90105-10070-00 Bolt, Flange |
90105-10070-00 |
from US $7.65 |
||
|
9
|
9
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
10
|
10
90387-1012H-00 Collar |
90387-1012H-00 |
from US $7.23 |
||
|
11
|
11
90387-16017-00 Collar |
90387-16017-00 |
from US $4.39 |
||
|
12
|
12
903-87160-18-00 Collar |
903-87160-18-00 |
from US $5.10 |
||
|
13
|
13
90201-16022-00 Washer, Plate |
90201-16022-00 |
from US $1.98 |
||
|
14
|
14
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
14
|
14
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
15
|
15
8GK-23743-00-00 Stopper 1 |
8GK-23743-00-00 |
from US $32.30 |
||
|
16
|
16
8GK-23501-01-00 Steering Knuckle Assy (Left) |
8GK-23501-01-00 |
from US $269.41 |
||
|
17
|
17
903-8416N-51-00 Bush, Bimetal Formed |
903-8416N-51-00 |
from US $4.39 |
||
|
18
|
18
8GK-23502-01-00 Steering Knuckle Assy (Right) |
8GK-23502-01-00 |
from US $269.41 |
||
|
19
|
19
903-8416N-51-00 Bush, Bimetal Formed |
903-8416N-51-00 |
from US $4.39 |
||
|
20
|
20
8GN-23570-C0-00 Front Lower Arm Comp. (Left) |
8GN-23570-C0-00 |
from US $330.20 |
||
|
21
|
21
903-81160-03-00 Bush, Solid |
903-81160-03-00 |
from US $18.14 |
||
|
22
|
22
8GK-23579-01-00 Ball Joint 2 |
8GK-23579-01-00 |
from US $88.70 |
||
|
23
|
23
99009-35700-00 Circlip |
99009-35700-00 |
from US $1.56 |
||
|
24
|
24
8GN-23580-C0-00 Front Lower Arm Comp. (Right) |
8GN-23580-C0-00 |
from US $330.20 |
||
|
25
|
25
903-81160-03-00 Bush, Solid |
903-81160-03-00 |
from US $18.14 |
||
|
26
|
26
8GK-23579-01-00 Ball Joint 2 |
8GK-23579-01-00 |
from US $88.70 |
||
|
27
|
27
99009-35700-00 Circlip |
99009-35700-00 |
from US $1.56 |
||
|
28
|
28
90387-10093-00 Collar |
90387-10093-00 |
from US $11.76 |
||
|
29
|
29
90105-10211-00 Bolt, Flange |
90105-10211-00 |
from US $4.39 |
||
|
30
|
30
90387-10074-00 Collar |
90387-10074-00 |
from US $15.58 |
||
|
31
|
31
90105-10212-00 Bolt, Flange |
90105-10212-00 |
from US $6.52 |
||
|
32
|
32
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
33
|
33
90105-10210-00 Bolt, Flange |
90105-10210-00 |
from US $4.39 |
||
|
34
|
34
90201-10051-00 Washer, Plate |
90201-10051-00 |
from US $2.55 |
||
|
35
|
35
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
36
|
36
8GK-23540-C0-00 Front Upper Arm Comp. (Left) |
8GK-23540-C0-00 |
from US $254.21 |
||
|
37
|
37
90381-15003-00 Bush, Solid |
90381-15003-00 |
from US $16.29 |
||
|
38
|
38
8GK-23549-00-00 Ball Joint 1 |
8GK-23549-00-00 |
from US $96.02 |
||
|
39
|
39
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
39
|
39
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
40
|
40
8GK-23550-C0-00 Front Upper Arm Comp. (Right) |
8GK-23550-C0-00 |
from US $254.21 |
||
|
41
|
41
90381-15003-00 Bush, Solid |
90381-15003-00 |
from US $16.29 |
||
|
42
|
42
8GK-23549-00-00 Ball Joint 1 |
8GK-23549-00-00 |
from US $96.02 |
||
|
43
|
43
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
43
|
43
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
44
|
44
90105-10213-00 Bolt, Flange |
90105-10213-00 |
from US $11.62 |
||
|
45
|
45
90387-10073-00 Collar |
90387-10073-00 |
from US $23.94 |
||
|
46
|
46
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
47
|
47
91312-10045-00 Bolt |
91312-10045-00 |
from US $3.26 |
||
|
48
|
48
90201-10052-00 Washer, Plate |
90201-10052-00 |
from US $1.84 |
||
|
49
|
49
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
50
|
50
8GN-F376A-A0-00 Absorber Assy 1 |
8GN-F376A-A0-00 |
US $379.80 |
||
|
51
|
51
8GN-2376B-09-00 Bush |
8GN-2376B-09-00 |
from US $22.67 |
||
|
52
|
52
8GT-F2259-50-00 Label, Warning |
8GT-F2259-50-00 |
US $23.94 |
||
| replacements | |||||
|
52
|
52
8GT-F2259-00-00 ARM, PIVOT 1 |
8GT-F2259-00-00 |
US $9.04 |
||
|
52
|
52
8GT-22259-50-00 Label,warning |
8GT-22259-50-00 |
from US $9.04 |
||
|
53
|
53
8GT-F3703-00-00 Fox Mega Float Pump |
8GT-F3703-00-00 |
from US $60.34 |
||
| replacements | |||||
|
53
|
53
SMA-MEGAF-PU-MP Rpt Mega Foxfloat Airshox Pump |
SMA-MEGAF-PU-MP |
US $187.60 |
||
|
53
|
53
8FP-23703-FS-00 Rpt Fox Float Airshox Pump |
8FP-23703-FS-00 |
US $60.34 |
||
|
54
|
54
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
54
|
54
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
55
|
55
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
56
|
56
8GN-2386E-00-00 Bar, Stabilizer Front(14MM) |
8GN-2386E-00-00 |
from US $143.69 |
||
|
57
|
57
8GN-2386C-00-00 Holder, Stabilizer Front |
8GN-2386C-00-00 |
from US $26.07 |
||
|
58
|
58
8GN-2386G-00-00 Bush, Stabilizer Front(14.1MM) |
8GN-2386G-00-00 |
from US $3.12 |
||
|
59
|
59
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.34 |
||
|
60
|
60
8GN-2385L-00-00 Joint, Stabilizer 1 |
8GN-2385L-00-00 |
from US $91.74 |
||
|
61
|
61
97012-10035-00 Bolt |
97012-10035-00 |
from US $3.97 |
||
| replacement | |||||
|
61
|
61
97017-10035-00 Bolt |
97017-10035-00 |
from US $3.97 |
||
|
62
|
62
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
63
|
63
95812-08040-00 Bolt, Flange |
95812-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
63
|
63
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
64
|
64
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
64
|
64
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
