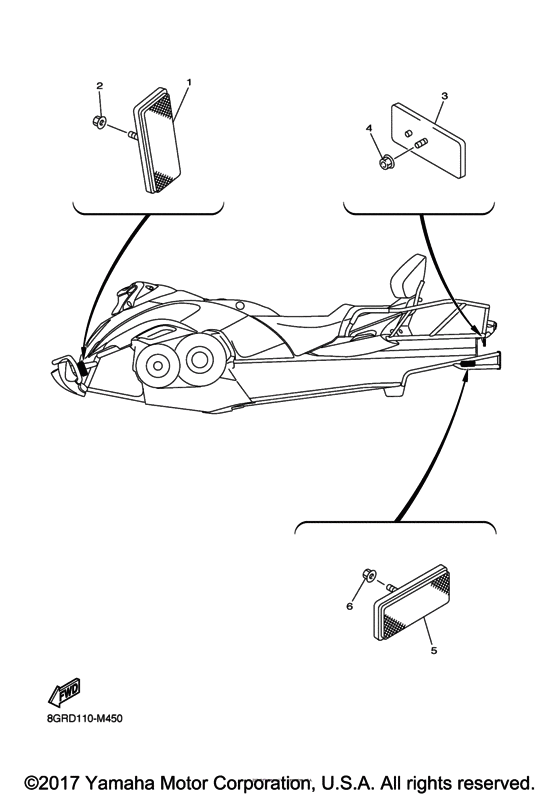

Electrical 3 Diagram Yamaha PZ50/ RPZ50 Venture Multi Purpose
- Model code
- 8GRP
- Engine Capacity
- 499
- Year
- 2018
- Sales region
- USA
- Model
- Venture Multi Purpose
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GM-85110-00-00 Reflector Assy |
8GM-85110-00-00 |
from US $9.35 |
||
|
2
|
2
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
3
|
3
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
4
|
4
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
4
|
4
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
5
|
5
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
6
|
6
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
