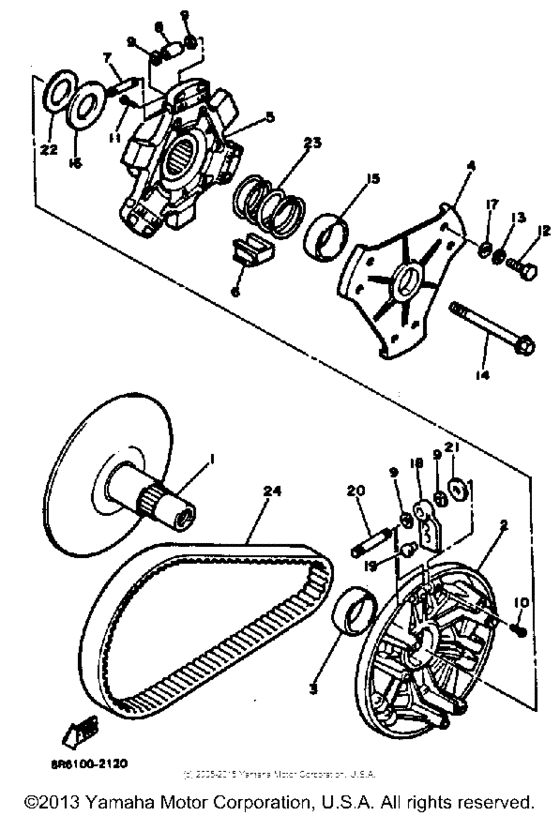

Primary sheave Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1982
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R6-17610-00-00
Pri Fixed Sheave
|
8R6-17610-00-00 |
— | ||
|
2
|
2
8R6-17627-00-00
Spider
|
8R6-17627-00-00 |
— | ||
|
3
|
3
90389-40029-00 Bush |
90389-40029-00 |
from US $39.65 |
||
|
4
|
4
8R6-17633-00-00
Weight
|
8R6-17633-00-00 |
— | ||
|
5
|
5
8R6-17627-00-00
Spider
|
8R6-17627-00-00 |
— | ||
|
6
|
6
8R6-17653-00-00
Slider
|
8R6-17653-00-00 |
— | ||
|
7
|
7
8R6-17636-01-00
Pin
|
8R6-17636-01-00 |
— | ||
|
8
|
8
8R6-17645-00-00 Collar |
8R6-17645-00-00 |
US $27.31 |
||
|
9
|
9
902-02101-31-00
Washer, Plate
|
902-02101-31-00 |
— | ||
|
10
|
10
901-10050-49-00 Bolt, Hex Skt Head |
901-10050-49-00 |
from US $1.10 |
||
|
11
|
11
901-10050-48-00
Bolt, Hex Skt Head
|
901-10050-48-00 |
— | ||
|
12
|
12
97311-06045-00 Bolt |
97311-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
12
|
12
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
8R6-17647-00-00
Bolt
|
8R6-17647-00-00 |
— | ||
|
15
|
15
90389-28032-00 Bush |
90389-28032-00 |
from US $34.57 |
||
|
16
|
16
90201-32710-00
Washer, Plate
|
90201-32710-00 |
— | ||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
8R6-17633-00-00
Weight
|
8R6-17633-00-00 |
— | ||
|
18
|
18
8R9-17633-00-00
Weight
FOR HIGH ALTITUDE |
8R9-17633-00-00 |
— | ||
|
19
|
19
90261-06015-00 Rivet, Countersunk (St10.3Mm) |
90261-06015-00 |
from US $1.35 |
||
|
19
|
19
902-61060-16-00
Rivet, Cntrsnk Hd
HD FOR HIGH ALTITUDE |
902-61060-16-00 |
— | ||
|
20
|
20
8R6-17628-00-00
Pin, Weight
|
8R6-17628-00-00 |
— | ||
|
21
|
21
902-01101-F8-00
Washer, Plate
UN * |
902-01101-F8-00 |
— | ||
|
22
|
22
90201-32710-00
Washer, Plate
|
90201-32710-00 |
— | ||
|
23
|
23
90501-50500-00 Spring, CompressionFOR HIGH/ALT |
90501-50500-00 |
US $22.30 |
||
|
23
|
23
905-01556-72-00
Spring, Grn/orng
|
905-01556-72-00 |
— | ||
|
24
|
24
8F2-17641-01-00 V-Belt |
8F2-17641-01-00 |
from US $68.10 |
||
| replacement | |||||
|
24
|
24
89X-17641-01-00 V-Belt |
89X-17641-01-00 |
from US $55.53 |
||
|
24
|
24
8R6-17610-00-00
Pri Fixed Sheave
|
8R6-17610-00-00 |
— | ||
|
24
|
24
8R6-00000-50-00
Clutch Tune Up Kit
UP KIT OPTIONAL KITSWITH * |
8R6-00000-50-00 |
— | ||
|
24
|
24
8R6-17000-10-00
Clutch Weight Kit
|
8R6-17000-10-00 |
— | ||
