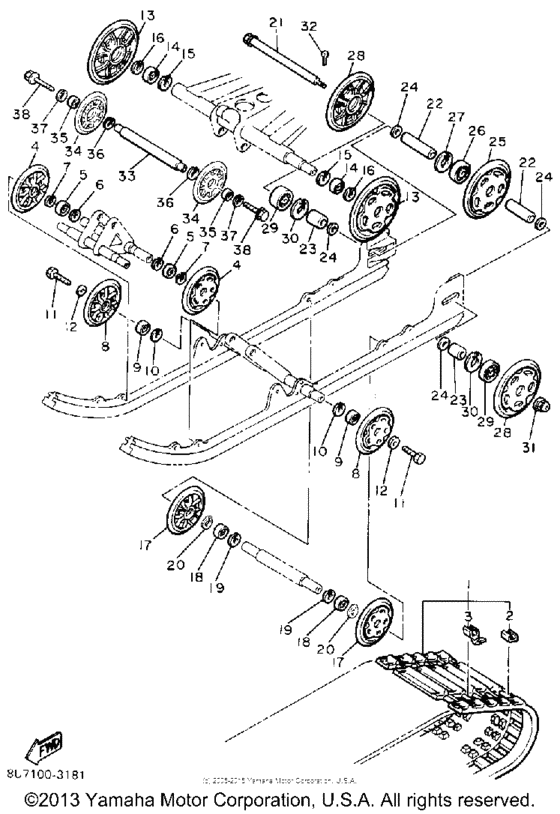

Track suspension (1) Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87F-47110-01-00
Track Assembly
|
87F-47110-01-00 |
— | ||
|
2
|
2
8A5-47113-00-00 Plate, Reinforcement |
8A5-47113-00-00 |
from US $5.45 |
||
| replacement | |||||
|
2
|
2
89A-47113-00-00 Plate, Reinforcement |
89A-47113-00-00 |
from US $7.20 |
||
|
3
|
3
8G9-47115-00-00 Metal, Slide |
8G9-47115-00-00 |
from US $6.91 |
||
| replacement | |||||
|
3
|
3
8A5-47115-00-00 Metal, Slide |
8A5-47115-00-00 |
US $18.07 |
||
|
4
|
4
87M-47320-00-00 Suspention Wheel Comp |
87M-47320-00-00 |
from US $54.71 |
||
|
5
|
5
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
5
|
5
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
6
|
6
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
7
|
7
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
8
|
8
87U-47320-00-00
Suspention Wheel Comp
|
87U-47320-00-00 |
— | ||
|
9
|
9
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
9
|
9
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
10
|
10
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
11
|
11
90109-08559-00 Bolt |
90109-08559-00 |
from US $1.56 |
||
|
12
|
12
90201-08681-00 Washer, Plate |
90201-08681-00 |
from US $1.70 |
||
|
13
|
13
8U7-47320-00-00 Suspension Wheel Comp |
8U7-47320-00-00 |
from US $38.13 |
||
|
14
|
14
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
14
|
14
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
15
|
15
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
16
|
16
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
17
|
17
87M-47320-00-00 Suspention Wheel Comp |
87M-47320-00-00 |
from US $54.71 |
||
|
18
|
18
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
18
|
18
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
19
|
19
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
20
|
20
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
21
|
21
8L8-47520-01-00 Rear Axle Comp |
8L8-47520-01-00 |
from US $53.06 |
||
| replacement | |||||
|
21
|
21
8L8-47520-02-00 Rear Axle Comp |
8L8-47520-02-00 |
from US $53.61 |
||
|
22
|
22
90387-202H9-00
Collar
|
90387-202H9-00 |
— | ||
|
23
|
23
90387-203H0-00 Collar |
90387-203H0-00 |
from US $12.47 |
||
| replacement | |||||
|
23
|
23
903-87200-22-00 Collar |
903-87200-22-00 |
from US $12.47 |
||
|
24
|
24
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
25
|
25
8K2-47530-00-00 Guide Wheel Comp |
8K2-47530-00-00 |
from US $36.70 |
||
|
26
|
26
93306-20417-00 Bearing |
93306-20417-00 |
from US $26.92 |
||
| replacement | |||||
|
26
|
26
93306-20469-00 Bearing |
93306-20469-00 |
from US $30.74 |
||
|
27
|
27
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $2.32 |
||
|
28
|
28
8M6-47530-00-00
Guide Wheel Comp
|
8M6-47530-00-00 |
— | ||
|
29
|
29
93306-20417-00 Bearing |
93306-20417-00 |
from US $26.92 |
||
| replacement | |||||
|
29
|
29
93306-20469-00 Bearing |
93306-20469-00 |
from US $30.74 |
||
|
30
|
30
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $2.32 |
||
|
31
|
31
95601-14200-00 Nut, Self-Locking |
95601-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
31
|
31
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
32
|
32
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
33
|
33
8L1-47461-00-00 Idler |
8L1-47461-00-00 |
US $83.94 |
||
|
34
|
34
8H8-47320-00-00 Suspension Wheel Comp |
8H8-47320-00-00 |
from US $54.71 |
||
| replacement | |||||
|
34
|
34
8H8-47320-00-XX
Suspension Wheel :sm
|
8H8-47320-00-XX |
— | ||
|
35
|
35
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
35
|
35
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
36
|
36
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
37
|
37
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
38
|
38
95816-08018-00 Bolt, Flange |
95816-08018-00 |
from US $1.07 |
||
| replacements | |||||
|
38
|
38
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
38
|
38
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
