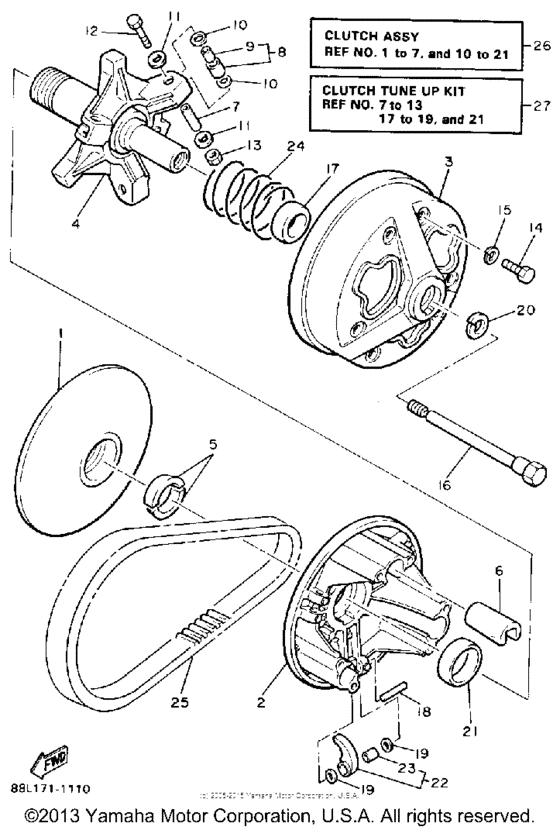

Primary sheave Diagram Yamaha SR540 SRV
- Model code
- SR540RSR
- Engine Capacity
- 540
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82M-17611-00-00
Sheave, Pri Fixedfixed
|
82M-17611-00-00 |
— | ||
|
2
|
2
8V0-17621-01-00 Sheave, Primary Sliding |
8V0-17621-01-00 |
US $224.54 |
||
|
3
|
3
8V0-17631-00-00 Cap |
8V0-17631-00-00 |
from US $77.37 |
||
|
4
|
4
82M-17640-01-00
Spider Complete
|
82M-17640-01-00 |
— | ||
| replacement | |||||
|
4
|
4
82M-17640-02-00
Spider Complete
|
82M-17640-02-00 |
— | ||
|
5
|
5
8V0-17639-00-00 Stopper |
8V0-17639-00-00 |
from US $6.38 |
||
|
6
|
6
88X-17653-00-00 Slider |
88X-17653-00-00 |
from US $10.06 |
||
|
7
|
7
90387-057W5-00 Collar |
90387-057W5-00 |
from US $6.80 |
||
|
8
|
8
87M-W176B-00-00 Roller, With Bush |
87M-W176B-00-00 |
from US $31.72 |
||
| replacement | |||||
|
8
|
8
87M-W176B-10-00 Roller, With Bush |
87M-W176B-10-00 |
from US $36.75 |
||
|
9
|
9
90386-08166-00 Bush |
90386-08166-00 |
from US $25.25 |
||
|
10
|
10
90202-08205-00 Washer, Plate |
90202-08205-00 |
from US $4.68 |
||
|
11
|
11
90201-050P9-00 Washer, Plate |
90201-050P9-00 |
from US $1.42 |
||
|
12
|
12
97022-05035-00 Bolt, Hexagon |
97022-05035-00 |
from US $1.26 |
||
| replacement | |||||
|
12
|
12
97027-05035-00 Bolt, Hexagon |
97027-05035-00 |
from US $2.69 |
||
|
13
|
13
95612-05100-00 Nut, U |
95612-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
14
|
14
97012-06030-00 Bolt |
97012-06030-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
8V0-17647-00-00 Bolt (L=156.5Mm) |
8V0-17647-00-00 |
from US $10.91 |
||
| replacement | |||||
|
16
|
16
8V0-17647-10-00 Bolt (L=156.5Mm) |
8V0-17647-10-00 |
from US $10.91 |
||
|
17
|
17
90389-28032-00 Bush |
90389-28032-00 |
from US $34.57 |
||
|
18
|
18
93607-44190-00 Pin, Dowel |
93607-44190-00 |
from US $5.10 |
||
|
19
|
19
90201-077F5-00 Washer, Plate |
90201-077F5-00 |
from US $1.28 |
||
|
20
|
20
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
20
|
20
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
21
|
21
90389-40029-00 Bush |
90389-40029-00 |
from US $39.65 |
||
|
22
|
22
8V0-W176A-00-00 Weight, With Bush |
8V0-W176A-00-00 |
from US $67.12 |
||
|
23
|
23
90386-07152-00 Bush |
90386-07152-00 |
from US $15.30 |
||
|
24
|
24
90501-523A4-00
Spring, Gold/white
|
90501-523A4-00 |
— | ||
|
24
|
24
90501-555A1-00 Spring, CompressionAP |
90501-555A1-00 |
US $39.28 |
||
|
25
|
25
8F2-17641-01-00 V-Belt |
8F2-17641-01-00 |
from US $68.10 |
||
| replacement | |||||
|
25
|
25
89X-17641-01-00 V-Belt |
89X-17641-01-00 |
from US $55.53 |
||
|
26
|
26
82M-17601-19-00
Primary Sheave Assembly
|
82M-17601-19-00 |
— | ||
| replacement | |||||
|
26
|
26
87M-17601-09-00
Clutch Assy Ex570P
|
87M-17601-09-00 |
— | ||
|
27
|
27
82M-00000-51-00
Clutch Tune-Up Kit
|
82M-00000-51-00 |
— | ||
