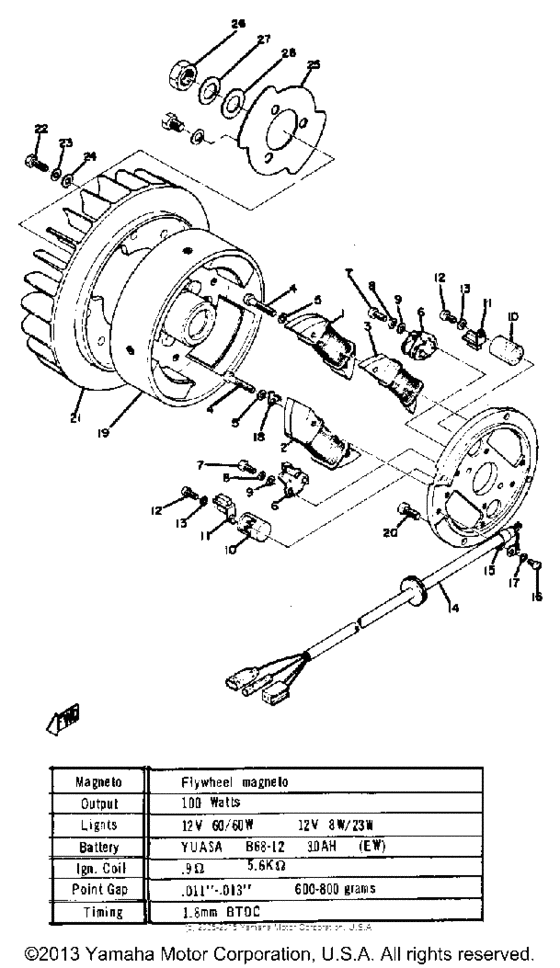

Flywheel & magneto Diagram Yamaha SW433
- Model code
- SW433
- Engine Capacity
- 433
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-81300-21-00
New Genuine Part
IN PRICE BOOK N/A SEE NOTE |
838-81300-21-00 |
— | ||
| replacement | |||||
|
1
|
1
861-81300-20-00
Flywhl Magneto Assembly
IN PRICE BOOK N/A SEE NOTE |
861-81300-20-00 |
— | ||
|
1
|
1
861-81300-20-00
Flywhl Magneto Assembly
|
861-81300-20-00 |
— | ||
|
1
|
1
8A0-81312-20-00 Coil, Source |
8A0-81312-20-00 |
US $131.74 |
||
|
2
|
2
838-81313-20-00
Coil, Lighting 1
|
838-81313-20-00 |
— | ||
|
3
|
3
838-81314-20-00
Coil, Lighting 2
|
838-81314-20-00 |
— | ||
|
4
|
4
802-81345-20-00 Screw, Pan Head |
802-81345-20-00 |
from US $1.35 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
806-81321-20-00 Contact Brkr Assembly |
806-81321-20-00 |
from US $41.62 |
||
|
7
|
7
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
10
|
10
802-81325-90-00
Condenser 1
|
802-81325-90-00 |
— | ||
|
11
|
11
834-81331-20-00
Lubricator
|
834-81331-20-00 |
— | ||
|
12
|
12
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
13
|
13
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
838-81315-21-00
Lead Wire Assembly
|
838-81315-21-00 |
— | ||
|
15
|
15
104-81328-21-00 Clamp |
104-81328-21-00 |
US $2.69 |
||
|
16
|
16
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
17
|
17
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
812-81332-20-00
Plate, Timing
|
812-81332-20-00 |
— | ||
|
19
|
19
838-81350-20-00
Rotor Assembly
|
838-81350-20-00 |
— | ||
|
20
|
20
838-12611-00-00
Fan
|
838-12611-00-00 |
— | ||
|
21
|
21
901-01060-04-00 Bolt |
901-01060-04-00 |
US $1.28 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
24
|
24
812-81362-00-00
Cover, Hole
|
812-81362-00-00 |
— | ||
|
25
|
25
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
25
|
25
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
26
|
26
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
26
|
26
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
27
|
27
929-01162-47-00
Washer
|
929-01162-47-00 |
— | ||
