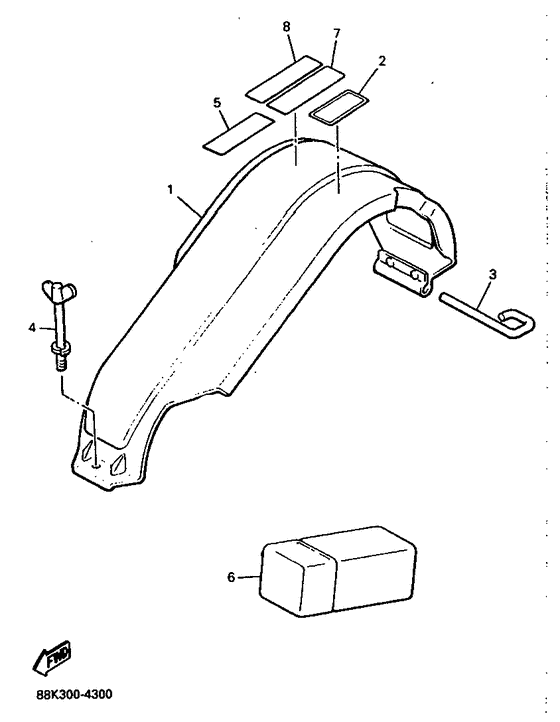

Guard luggage box Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8V0-77311-00-00
Guard,drive
|
8V0-77311-00-00 |
— | ||
| replacement | |||||
|
01
|
01
8BA-77311-00-00
Guard, Drive
|
8BA-77311-00-00 |
— | ||
|
02
|
02
86D-77762-00-00 Label, Warning 2 |
86D-77762-00-00 |
from US $4.39 |
||
|
03
|
03
86V-77384-00-00 Pin |
86V-77384-00-00 |
from US $3.68 |
||
|
04
|
04
8V0-77387-00-00 Screw |
8V0-77387-00-00 |
from US $7.65 |
||
|
05
|
05
8W1-77372-01-00
Emblem 16
|
8W1-77372-01-00 |
— | ||
|
06
|
06
85L-28100-00-00 Tool Kit |
85L-28100-00-00 |
from US $49.88 |
||
| replacement | |||||
|
06
|
06
85L-28100-01-00 Tool Kit |
85L-28100-01-00 |
from US $49.88 |
||
|
07
|
07
89G-47578-00-00 Label 1 |
89G-47578-00-00 |
from US $12.19 |
||
|
08
|
08
81H-1417E-01-00 Label,caution |
81H-1417E-01-00 |
US $6.61 |
||
| replacement | |||||
|
08
|
08
81H-1417E-02-00 Label, Caution |
81H-1417E-02-00 |
from US $6.61 |
||
