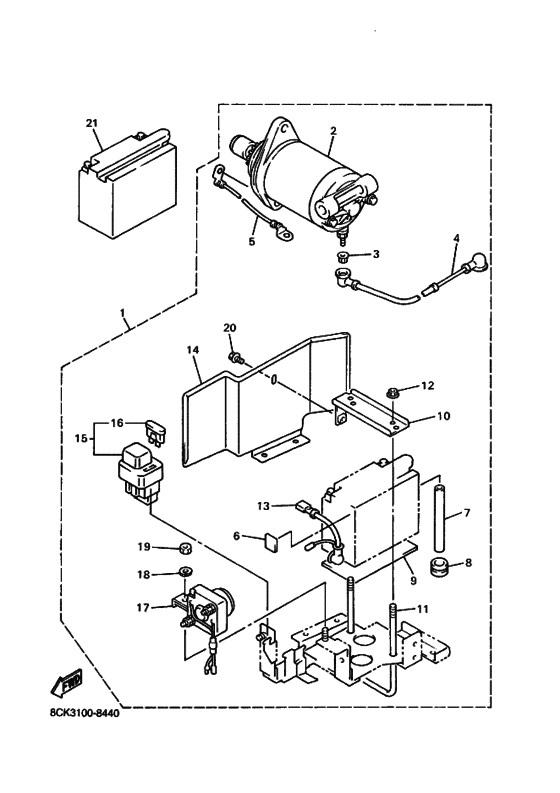

Alternate parts electrical Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8CK3
- Engine Capacity
- 485
- Year
- 1998
- Sales region
- Europe (020)
- Colour
- Dark Cyan Metallic 2 (DCM2; 0337)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CK-W8180-00-00
Starting Motor Set
AP |
8CK-W8180-00-00 |
— | ||
|
2
|
2
8BB-81800-01-00 Starting Motor Assy |
8BB-81800-01-00 |
from US $538.78 |
||
| replacement | |||||
|
2
|
2
8BB-81800-02-00 Starting Motor Assy |
8BB-81800-02-00 |
from US $538.78 |
||
|
3
|
3
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
4
|
4
84N-82117-01-00 Wire, Lead |
84N-82117-01-00 |
US $38.56 |
||
| replacement | |||||
|
4
|
4
8CL-82117-00-00 Wire, Lead |
8CL-82117-00-00 |
US $34.88 |
||
|
5
|
5
89H-82116-00-00
Wire, Minus Lead
|
89H-82116-00-00 |
— | ||
|
6
|
6
3YF-24849-00-00 Damper |
3YF-24849-00-00 |
from US $2.41 |
||
| replacement | |||||
|
6
|
6
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
7
|
7
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
8
|
8
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
9
|
9
82L-82122-00-00 Seat, Battery |
82L-82122-00-00 |
US $8.66 |
||
|
10
|
10
89X-82136-01-00
Plate, Battery Fitting
|
89X-82136-01-00 |
— | ||
|
11
|
11
8J4-82133-00-00 Screw, Fitting |
8J4-82133-00-00 |
US $10.53 |
||
|
12
|
12
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
13
|
13
81J-82115-00-00 Wire, Plus Lead |
81J-82115-00-00 |
US $8.26 |
||
| replacement | |||||
|
13
|
13
84N-82115-00-00
Wire, Plus Lead
|
84N-82115-00-00 |
— | ||
|
14
|
14
85N-2199H-00-00
Shield, Heat
|
85N-2199H-00-00 |
— | ||
|
15
|
15
8BE-82150-00-00 Fuse Holder Assy |
8BE-82150-00-00 |
from US $19.13 |
||
|
16
|
16
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.56 |
||
|
17
|
17
8J9-81940-10-00 Starter Relay Assy |
8J9-81940-10-00 |
US $149 |
||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
19
|
19
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
20
|
20
95807-06008-00 Bolt, Flange |
95807-06008-00 |
from US $1.56 |
||
| replacements | |||||
|
20
|
20
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
20
|
20
90105-06069-00 Bolt, Washer Based |
90105-06069-00 |
from US $1.56 |
||
|
21
|
21
447-82110-83-00
Yb14La2 Yuasa Batte
AP |
447-82110-83-00 |
— | ||
| replacements | |||||
|
21
|
21
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
AP |
YB1-4LA20-00-00 |
— | ||
|
21
|
21
CB1-4LA20-00-00
element
AP |
CB1-4LA20-00-00 |
— | ||
