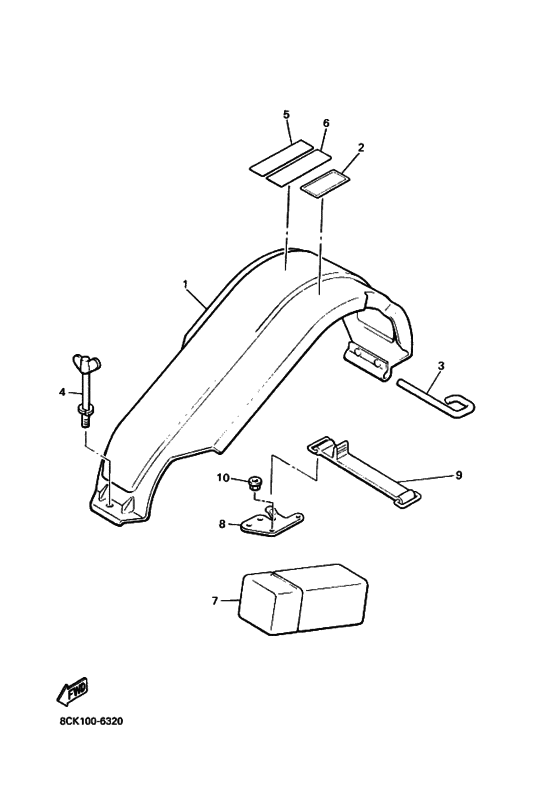

Guard & luggage box Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8CK3
- Engine Capacity
- 485
- Year
- 1998
- Sales region
- Europe (020)
- Colour
- Dark Cyan Metallic 2 (DCM2; 0337)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8V0-77311-00-00
Guard,drive
|
8V0-77311-00-00 |
— | ||
| replacement | |||||
|
1
|
1
8BA-77311-00-00
Guard, Drive
|
8BA-77311-00-00 |
— | ||
|
2
|
2
8BD-77762-00-00 Label, Warning 2 |
8BD-77762-00-00 |
from US $3.12 |
||
|
3
|
3
86V-77384-00-00 Pin |
86V-77384-00-00 |
from US $3.68 |
||
|
4
|
4
8V0-77387-00-00 Screw |
8V0-77387-00-00 |
from US $7.65 |
||
|
5
|
5
81H-1417E-02-00 Label, Caution |
81H-1417E-02-00 |
from US $6.61 |
||
|
6
|
6
8CK-47578-00-00 Label 1 |
8CK-47578-00-00 |
US $10.15 |
||
|
7
|
7
85L-28100-00-00 Tool Kit |
85L-28100-00-00 |
from US $49.88 |
||
| replacement | |||||
|
7
|
7
85L-28100-01-00 Tool Kit |
85L-28100-01-00 |
from US $49.88 |
||
|
8
|
8
8V0-21945-00-00 Bracket, Tool Box Fitting |
8V0-21945-00-00 |
US $11.36 |
||
|
9
|
9
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
10
|
10
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
