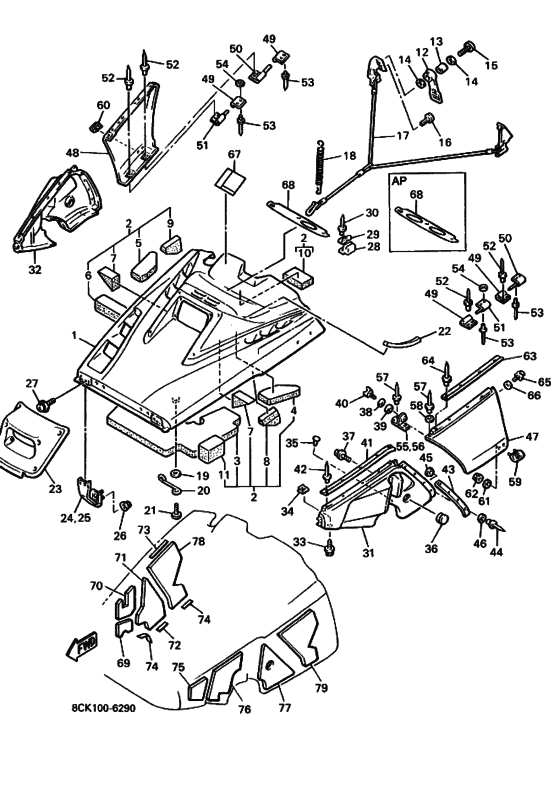

Shroud Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8CK3
- Engine Capacity
- 485
- Year
- 1998
- Sales region
- Europe (020)
- Colour
- Dark Cyan Metallic 2 (DCM2; 0337)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BK-77111-30-00 Shroud |
8BK-77111-30-00 |
US $932.56 |
||
|
2
|
2
8BK-W7726-00-00
Lining Set
|
8BK-W7726-00-00 |
— | ||
|
3
|
3
88T-77261-00-00 Lining, Shroud 1 |
88T-77261-00-00 |
from US $27.47 |
||
|
4
|
4
88T-77262-00-00 Lining, Shroud 2 |
88T-77262-00-00 |
from US $6.31 |
||
|
5
|
5
88T-77263-00-00 Lining, Shroud 3 |
88T-77263-00-00 |
from US $6.31 |
||
|
6
|
6
88T-77264-00-00 Lining, Shroud 4 |
88T-77264-00-00 |
from US $7.34 |
||
|
7
|
7
88T-77267-00-00 Lining, Shroud 7 |
88T-77267-00-00 |
from US $3.97 |
||
|
8
|
8
8V0-77278-01-00 Damper, Noise 1818 |
8V0-77278-01-00 |
from US $15.57 |
||
|
9
|
9
8V0-77279-00-00 Damper, Noise 1919 |
8V0-77279-00-00 |
from US $15.57 |
||
|
10
|
10
8H7-77264-00-00 Lining, Shroud 4 |
8H7-77264-00-00 |
from US $2.05 |
||
|
11
|
11
88T-77277-00-00 Damper, Noise 1717 |
88T-77277-00-00 |
from US $3.24 |
||
|
12
|
12
8V0-77171-00-00 Body, Latch 1 |
8V0-77171-00-00 |
from US $6.38 |
||
|
13
|
13
90387-06241-00 Collar |
90387-06241-00 |
from US $1.28 |
||
|
14
|
14
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
15
|
15
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
16
|
16
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
17
|
17
88T-77118-01-00 Stopper, Shroud |
88T-77118-01-00 |
US $48.76 |
||
|
18
|
18
80L-77159-00-00
Clamp, Rod
|
80L-77159-00-00 |
— | ||
|
19
|
19
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
20
|
20
90465-20145-00 Clamp |
90465-20145-00 |
US $3.11 |
||
|
21
|
21
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
21
|
21
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
22
|
22
88T-77198-00-00 Damper 1 |
88T-77198-00-00 |
US $3.08 |
||
|
24
|
24
88T-77140-00-00 Hinge Assembly |
88T-77140-00-00 |
from US $46.26 |
||
|
25
|
25
88T-7714A-00-00 Hinge Assembly 2 |
88T-7714A-00-00 |
from US $46.26 |
||
|
26
|
26
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
27
|
27
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
27
|
27
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
27
|
27
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
28
|
28
8V0-77188-00-00 Stopper |
8V0-77188-00-00 |
US $8.48 |
||
|
29
|
29
8V0-77116-01-00 Washer, Special |
8V0-77116-01-00 |
from US $8.50 |
||
|
30
|
30
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
31
|
31
8BK-21982-20-00 Hood 1 |
8BK-21982-20-00 |
US $297.41 |
||
|
32
|
32
8BK-21983-20-00 Hood 2 |
8BK-21983-20-00 |
US $297.76 |
||
|
33
|
33
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
33
|
33
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
34
|
34
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
35
|
35
90269-05073-00 Rivet |
90269-05073-00 |
from US $1.98 |
||
|
36
|
36
90480-40614-00 Grommet |
90480-40614-00 |
US $16.20 |
||
|
37
|
37
90119-06203-00 Bolt, With Washer |
90119-06203-00 |
from US $1.70 |
||
| replacements | |||||
|
37
|
37
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
37
|
37
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
|
38
|
38
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
38
|
38
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
39
|
39
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
40
|
40
90122-06020-00 Bolt, Wing |
90122-06020-00 |
from US $5.67 |
||
|
41
|
41
87F-77515-00-00
Bush, Rubber 1
|
87F-77515-00-00 |
— | ||
|
42
|
42
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
42
|
42
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
43
|
43
8V0-2196T-00-00 Trim 1 |
8V0-2196T-00-00 |
from US $25.70 |
||
|
44
|
44
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.26 |
||
|
45
|
45
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
45
|
45
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
46
|
46
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
47
|
47
8BK-2197H-20-00 Hood 3 |
8BK-2197H-20-00 |
US $220.12 |
||
|
48
|
48
8BK-2198H-20-00
Hood 4
|
8BK-2198H-20-00 |
— | ||
|
49
|
49
88F-2194X-00-00
Bracket, 1
|
88F-2194X-00-00 |
— | ||
|
50
|
50
88F-2195X-00-00
Bracket 2
|
88F-2195X-00-00 |
— | ||
| replacement | |||||
|
50
|
50
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
51
|
51
88F-2196F-00-00 Bracket 3 |
88F-2196F-00-00 |
from US $13.70 |
||
|
52
|
52
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
53
|
53
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
54
|
54
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
54
|
54
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
54
|
54
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
55
|
55
87F-77553-01-00 Protector 3LH |
87F-77553-01-00 |
US $8.37 |
||
|
56
|
56
87F-77554-01-00 Protector 4RH |
87F-77554-01-00 |
from US $8.08 |
||
|
57
|
57
90267-48088-00 Rivet, Blind |
90267-48088-00 |
from US $1.28 |
||
|
58
|
58
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
59
|
59
85L-77551-00-00 Protector 1 |
85L-77551-00-00 |
from US $20.86 |
||
|
60
|
60
85L-77552-00-00
Protector 2
|
85L-77552-00-00 |
— | ||
|
61
|
61
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
62
|
62
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
63
|
63
8V0-77516-01-00 Bush, Rubber 2 |
8V0-77516-01-00 |
from US $17.78 |
||
|
64
|
64
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
64
|
64
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
65
|
65
8V0-77175-00-00 Holder, Latch |
8V0-77175-00-00 |
from US $9.63 |
||
|
66
|
66
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
67
|
67
88T-77763-10-00
Label, Warning 3
|
88T-77763-10-00 |
— | ||
|
68
|
68
8BK-77715-00-00
Ornament, Instrument Panel 1
UR AP |
8BK-77715-00-00 |
— | ||
|
68
|
68
8CK-77715-00-00
Ornament, Instrument Panel 1
UR STD |
8CK-77715-00-00 |
— | ||
|
69
|
69
87F-77265-01-00 Lining, Shroud 5 |
87F-77265-01-00 |
from US $16.29 |
||
|
70
|
70
87F-77266-01-00 Lining, Shroud 6 |
87F-77266-01-00 |
US $16.29 |
||
|
71
|
71
87F-77276-01-00 Damper, Noise 1616 |
87F-77276-01-00 |
US $45.14 |
||
|
72
|
72
8V0-7717E-00-00 Tape 1 |
8V0-7717E-00-00 |
from US $3.08 |
||
| replacement | |||||
|
72
|
72
8V0-7717E-01-00 Tape 1 |
8V0-7717E-01-00 |
from US $3.26 |
||
|
73
|
73
8V0-7717F-00-00 Tape 2 |
8V0-7717F-00-00 |
US $1.26 |
||
| replacement | |||||
|
73
|
73
8V0-7717F-01-00 Tape 2 |
8V0-7717F-01-00 |
US $1.26 |
||
|
74
|
74
82M-7717G-00-00 Tape 3 |
82M-7717G-00-00 |
from US $1.13 |
||
| replacement | |||||
|
74
|
74
82M-7717G-01-00 Tape 3 |
82M-7717G-01-00 |
from US $1.13 |
||
|
75
|
75
87F-77272-00-00 Damper, Noise 1212 |
87F-77272-00-00 |
US $5.87 |
||
| replacement | |||||
|
75
|
75
999-99999-99-00
Not Available
12 |
999-99999-99-00 |
— | ||
|
76
|
76
87F-77273-00-00 Damper, Noise 1313 |
87F-77273-00-00 |
from US $18.99 |
||
|
77
|
77
87F-77274-00-00
Damper, Noise 14
14 |
87F-77274-00-00 |
— | ||
| replacement | |||||
|
77
|
77
999-99999-99-00
Not Available
14 |
999-99999-99-00 |
— | ||
|
78
|
78
8V0-77266-00-00 Lining, Shroud 6 |
8V0-77266-00-00 |
US $27.83 |
||
| replacement | |||||
|
78
|
78
8V0-77266-01-00 Lining, Shroud 6 |
8V0-77266-01-00 |
US $27.72 |
||
|
79
|
79
8V0-77275-00-00 Damper, Noise 1515 |
8V0-77275-00-00 |
US $48.85 |
||
