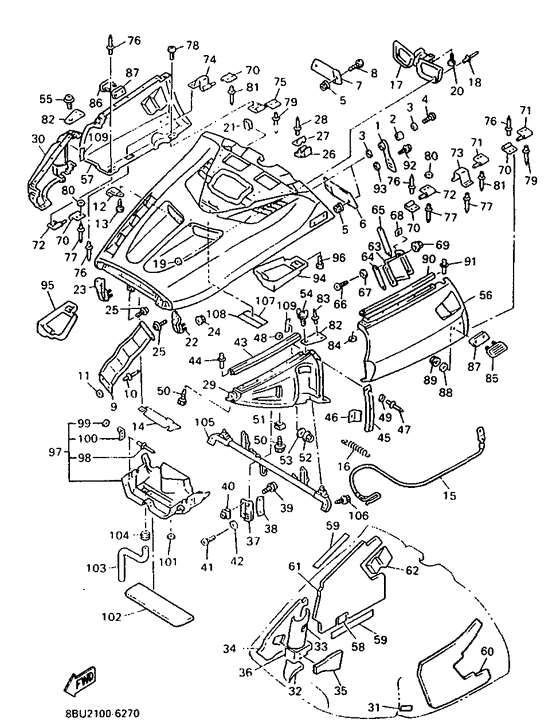

Shroud Diagram Yamaha VX800 Vmax-4
- Model code
- 8BU2
- Engine Capacity
- 800
- Year
- 1996
- Sales region
- Canada (999)
- Colour
- Fire Red (FIR; 00FH)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8V0-77171-00-00 Body, Latch 1 |
8V0-77171-00-00 |
from US $6.38 |
||
|
02
|
02
90387-06241-00 Collar |
90387-06241-00 |
from US $1.28 |
||
|
03
|
03
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
03
|
03
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
04
|
04
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
05
|
05
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
06
|
06
89A-77555-00-00
Protector 5
|
89A-77555-00-00 |
— | ||
|
07
|
07
89A-77556-00-00
Protector 6
|
89A-77556-00-00 |
— | ||
|
08
|
08
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
09
|
09
89A-77557-00-00
Protector 7
|
89A-77557-00-00 |
— | ||
|
10
|
10
90267-48051-00 Rivet, Blind (4.8X18.7 Black) |
90267-48051-00 |
from US $2.05 |
||
|
11
|
11
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
12
|
12
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
13
|
13
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
14
|
14
89A-77577-00-00
Plate, 1
|
89A-77577-00-00 |
— | ||
|
15
|
15
89A-77118-00-00
Stopper, Shroud
|
89A-77118-00-00 |
— | ||
|
16
|
16
89A-77159-00-00 Clamp, Rod |
89A-77159-00-00 |
from US $4.68 |
||
|
17
|
17
89A-77563-00-00
Cover, 3
|
89A-77563-00-00 |
— | ||
|
18
|
18
90267-48051-00 Rivet, Blind (4.8X18.7 Black) |
90267-48051-00 |
from US $2.05 |
||
|
19
|
19
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
20
|
20
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
21
|
21
89A-77226-00-00
Trim 6
|
89A-77226-00-00 |
— | ||
|
22
|
22
89A-77140-00-00 Hinge Assembly |
89A-77140-00-00 |
from US $42.25 |
||
|
23
|
23
89A-7714A-00-00 Hinge Assembly 2 |
89A-7714A-00-00 |
from US $42.25 |
||
|
24
|
24
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
25
|
25
90159-06108-00 Screw, With Washer |
90159-06108-00 |
US $1.42 |
||
| replacement | |||||
|
25
|
25
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
26
|
26
8V0-77188-00-00 Stopper |
8V0-77188-00-00 |
US $8.48 |
||
|
27
|
27
8V0-77116-01-00 Washer, Special |
8V0-77116-01-00 |
from US $8.50 |
||
|
28
|
28
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
29
|
29
89A-21982-10-00
Hood 1
|
89A-21982-10-00 |
— | ||
|
30
|
30
89A-21983-10-00
Hood 2
|
89A-21983-10-00 |
— | ||
|
31
|
31
89A-7717F-00-00
Tape 2
|
89A-7717F-00-00 |
— | ||
|
32
|
32
8AX-77272-00-00 Damper, Noise 12 |
8AX-77272-00-00 |
from US $9.99 |
||
|
33
|
33
8AX-77273-00-00
Damper, Noise 13
|
8AX-77273-00-00 |
— | ||
|
34
|
34
8AX-77271-00-00
Damper, Noise 11
|
8AX-77271-00-00 |
— | ||
|
35
|
35
8AX-77274-00-00
Damper, Noise 14
|
8AX-77274-00-00 |
— | ||
|
36
|
36
8AX-77276-00-00
Damper, Noise 16
|
8AX-77276-00-00 |
— | ||
|
37
|
37
89A-77552-00-00 Protector 2 |
89A-77552-00-00 |
US $31.72 |
||
|
38
|
38
89A-77527-00-00
Plate, Back Up
|
89A-77527-00-00 |
— | ||
|
39
|
39
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
40
|
40
89A-77144-00-00 Nut |
89A-77144-00-00 |
from US $8.96 |
||
|
41
|
41
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
42
|
42
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
43
|
43
8BU-77515-00-00
Bush, Rubber 1
|
8BU-77515-00-00 |
— | ||
|
44
|
44
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
44
|
44
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
45
|
45
89A-2196T-00-00 Trim 1 |
89A-2196T-00-00 |
US $20.18 |
||
|
46
|
46
89A-77168-01-00 Trim 4 |
89A-77168-01-00 |
US $14.60 |
||
|
47
|
47
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
48
|
48
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
48
|
48
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
49
|
49
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
50
|
50
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
50
|
50
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
51
|
51
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
52
|
52
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
53
|
53
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
53
|
53
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
54
|
54
89A-77212-00-00 Bolt, Wind Shield |
89A-77212-00-00 |
US $4.05 |
||
|
55
|
55
90159-06078-00 Screw, With Washer |
90159-06078-00 |
from US $1.70 |
||
|
56
|
56
89A-2197H-10-00
Hood 3
|
89A-2197H-10-00 |
— | ||
|
57
|
57
89A-2198H-00-00 Hood 4 |
89A-2198H-00-00 |
US $750.56 |
||
|
58
|
58
89A-7717E-00-00
Tape 1
|
89A-7717E-00-00 |
— | ||
|
59
|
59
8V0-7717E-00-00 Tape 1 |
8V0-7717E-00-00 |
from US $3.08 |
||
| replacement | |||||
|
59
|
59
8V0-7717E-01-00 Tape 1 |
8V0-7717E-01-00 |
from US $3.26 |
||
|
60
|
60
89A-77262-00-00
Lining, Shroud 2
|
89A-77262-00-00 |
— | ||
|
61
|
61
89A-77275-00-00 Damper, Noise 15 |
89A-77275-00-00 |
from US $107 |
||
|
62
|
62
8AX-77279-00-00
Damper, Noise 19
|
8AX-77279-00-00 |
— | ||
|
63
|
63
89A-77553-00-00
Protector 3
|
89A-77553-00-00 |
— | ||
|
64
|
64
89A-77521-00-00
Stopper, 1
|
89A-77521-00-00 |
— | ||
|
65
|
65
89A-77522-00-00
Stopper 2
|
89A-77522-00-00 |
— | ||
|
66
|
66
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
67
|
67
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
68
|
68
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
69
|
69
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
70
|
70
88F-2194X-00-00
Bracket, 1
|
88F-2194X-00-00 |
— | ||
|
71
|
71
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
72
|
72
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
73
|
73
89A-2197J-00-00 Hinge 1 |
89A-2197J-00-00 |
US $21.58 |
||
|
74
|
74
89A-2197K-00-00
Hinge 2
|
89A-2197K-00-00 |
— | ||
|
75
|
75
89A-2197L-00-00 Hinge 3 |
89A-2197L-00-00 |
US $22.55 |
||
|
76
|
76
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
77
|
77
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
77
|
77
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
78
|
78
90154-05064-00 Screw, Bind |
90154-05064-00 |
from US $1.42 |
||
| replacement | |||||
|
78
|
78
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
79
|
79
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
80
|
80
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
80
|
80
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
80
|
80
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
81
|
81
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
82
|
82
89A-77385-00-00 Stopper |
89A-77385-00-00 |
US $7.20 |
||
|
83
|
83
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
84
|
84
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
84
|
84
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
84
|
84
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
85
|
85
89A-77561-00-00
Protector, Side 1
|
89A-77561-00-00 |
— | ||
|
86
|
86
89A-77562-00-00
Protector, Side 2
|
89A-77562-00-00 |
— | ||
|
87
|
87
89A-77529-00-00
Spacer, Bumper
|
89A-77529-00-00 |
— | ||
|
88
|
88
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
89
|
89
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
90
|
90
8BU-77516-00-00 Bush, Rubber 2 |
8BU-77516-00-00 |
US $38.65 |
||
|
91
|
91
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
91
|
91
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
92
|
92
8V0-77175-00-00 Holder, Latch |
8V0-77175-00-00 |
from US $9.63 |
||
|
93
|
93
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
94
|
94
89A-77185-00-00
Plate 1
|
89A-77185-00-00 |
— | ||
|
95
|
95
89A-77186-00-00
Plate 2
|
89A-77186-00-00 |
— | ||
|
96
|
96
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
97
|
97
89A-77123-01-00
Guide 1
|
89A-77123-01-00 |
— | ||
|
98
|
98
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
99
|
99
90201-04015-00 Washer, Plate |
90201-04015-00 |
from US $2.09 |
||
