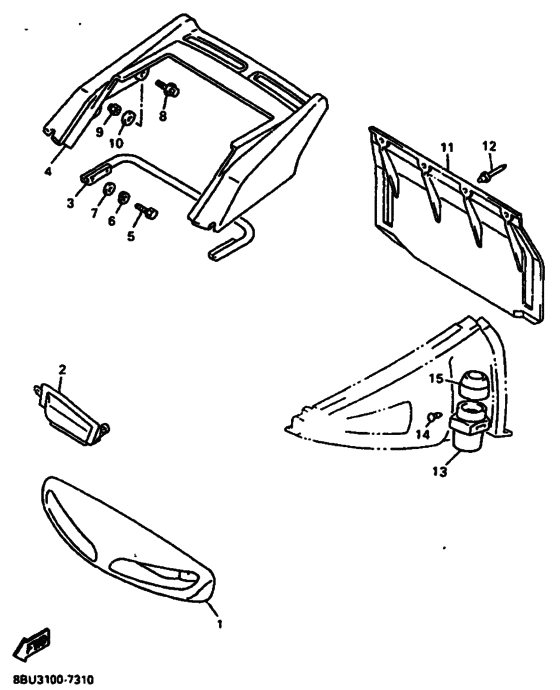

Bumper Diagram Yamaha VX800 Vmax-4
- Model code
- 8BU3
- Engine Capacity
- 800
- Year
- 1997
- Sales region
- Europe (020)
- Colour
- Heat Red (HTR; 00EY)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BU-77511-00-00
Bumper, Front 1
HTR |
8BU-77511-00-00 |
— | ||
|
2
|
2
8AX-77128-00-00 Stay 4 |
8AX-77128-00-00 |
US $143.62 |
||
|
3
|
3
89A-77541-00-00 Bumper, Rear 1 |
89A-77541-00-00 |
from US $117.81 |
||
|
4
|
4
89A-77542-00-00
Bumper, Rear 2
|
89A-77542-00-00 |
— | ||
|
5
|
5
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
6
|
6
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
7
|
7
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
8
|
8
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
9
|
9
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
10
|
10
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
11
|
11
8CR-77595-00-00 Flap |
8CR-77595-00-00 |
US $60.71 |
||
| replacements | |||||
|
11
|
11
8GW-77595-00-00 Flap |
8GW-77595-00-00 |
from US $57.51 |
||
|
11
|
11
8CR-77595-01-00
Flap
|
8CR-77595-01-00 |
— | ||
|
12
|
12
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
13
|
13
82M-77551-00-00 Protector 1 |
82M-77551-00-00 |
US $51.01 |
||
|
14
|
14
90269-04025-00 Rivet |
90269-04025-00 |
from US $1.70 |
||
|
15
|
15
8AX-77554-00-00
Protector 4
|
8AX-77554-00-00 |
— | ||
