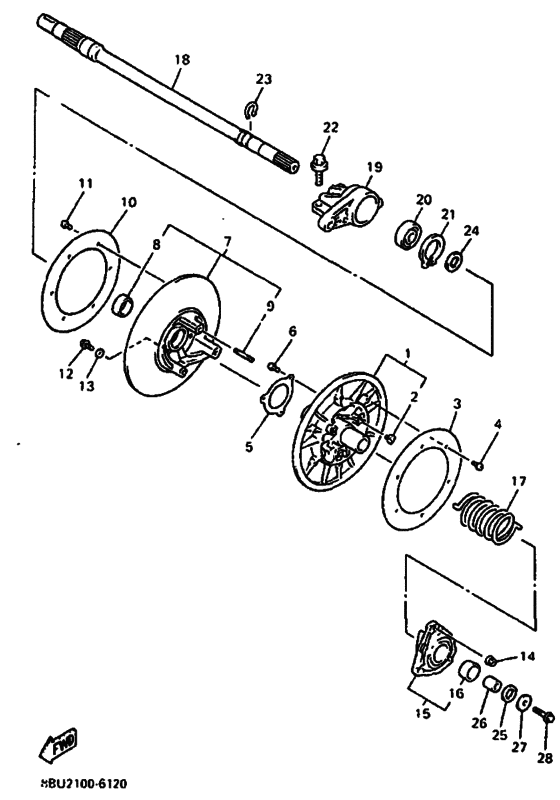

Secondary sheave Diagram Yamaha VX800 Vmax-4
- Model code
- 8BU3
- Engine Capacity
- 800
- Year
- 1997
- Sales region
- Europe (020)
- Colour
- Heat Red (HTR; 00EY)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BU-17660-20-00
Secondary Fixed Sheave Comp
|
8BU-17660-20-00 |
— | ||
|
2
|
2
8AV-17688-00-00 Shoe, Ramp |
8AV-17688-00-00 |
from US $29.48 |
||
| replacement | |||||
|
2
|
2
8AV-17688-09-00 Shoe, Ramp |
8AV-17688-09-00 |
from US $28.21 |
||
|
3
|
3
8CM-17665-00-00 Plate 1AP |
8CM-17665-00-00 |
from US $24.65 |
||
|
4
|
4
90150-05040-00 Screw, Round HeadAP |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
985-07050-08-00 Screw, Pan HeadAP |
985-07050-08-00 |
from US $1.07 |
||
|
5
|
5
8BV-17656-00-00 Stopper, Holder |
8BV-17656-00-00 |
from US $12.61 |
||
|
6
|
6
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
7
|
7
8BU-17670-20-00 Secondary Sliding Sheave |
8BU-17670-20-00 |
from US $266.09 |
||
| replacement | |||||
|
7
|
7
8BU-17670-10-00 Secondary Sliding Sheave |
8BU-17670-10-00 |
from US $288.72 |
||
|
8
|
8
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
9
|
9
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $3.68 |
||
|
10
|
10
8CM-17675-00-00 Plate 2AP |
8CM-17675-00-00 |
from US $24.65 |
||
|
11
|
11
90150-05040-00 Screw, Round HeadAP |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
985-07050-08-00 Screw, Pan HeadAP |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
90105-06734-00 Bolt, FlangeUN |
90105-06734-00 |
from US $1.70 |
||
|
13
|
13
90201-06431-00 Washer, Plate (371)UN |
90201-06431-00 |
from US $2.13 |
||
|
13
|
13
90201-061H1-00 Washer, Plate (T=0.5)UN |
90201-061H1-00 |
from US $2.69 |
||
|
14
|
14
90179-08655-00 Nut |
90179-08655-00 |
from US $2.41 |
||
|
15
|
15
8BV-17604-70-00 Seat Spring SetUR STD |
8BV-17604-70-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-71-00 Seat Spring SetUR STD |
8BV-17604-71-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-10-00 Seat Spring SetAP |
8BV-17604-10-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-11-00 Seat Spring SetAP |
8BV-17604-11-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-30-00 Seat Spring SetAP |
8BV-17604-30-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-31-00 Seat Spring SetAP |
8BV-17604-31-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-50-00 Seat Spring SetAP |
8BV-17604-50-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-51-00 Seat Spring SetAP |
8BV-17604-51-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-90-00 Seat Spring SetAP |
8BV-17604-90-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-91-00 Seat Spring SetAP |
8BV-17604-91-00 |
from US $142.30 |
||
|
16
|
16
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
17
|
17
90508-556A2-00 Spring, TorsionUR STD |
90508-556A2-00 |
from US $21.96 |
||
|
17
|
17
90508-536A9-00 Spring, TorsionAP |
90508-536A9-00 |
from US $9.92 |
||
|
17
|
17
90508-556A7-00 Spring, TorsionAP |
90508-556A7-00 |
from US $29.19 |
||
|
17
|
17
90508-500B1-00 Spring, TorsionAP |
90508-500B1-00 |
from US $15.87 |
||
|
18
|
18
8BU-17681-11-00
Shaft, Secondary
|
8BU-17681-11-00 |
— | ||
|
19
|
19
8BU-47631-00-00
Housing, Bearing
|
8BU-47631-00-00 |
— | ||
|
20
|
20
93306-20567-00 Bearing(22F) |
93306-20567-00 |
from US $37.17 |
||
| replacement | |||||
|
20
|
20
93306-07806-00 Bearing |
93306-07806-00 |
from US $37.17 |
||
|
21
|
21
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
22
|
22
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
23
|
23
93410-25017-00 Circlip |
93410-25017-00 |
from US $2.32 |
||
|
24
|
24
90201-25526-00 Washer, Plate (T2.0)UR UN |
90201-25526-00 |
from US $2.24 |
||
|
24
|
24
90201-25527-00 Washer, Plate (T1.0)UR UN |
90201-25527-00 |
from US $1.50 |
||
|
24
|
24
90201-252F1-00 Washer, Plate (T0.5)UR UN |
90201-252F1-00 |
from US $1.56 |
||
|
25
|
25
90201-225A4-00 Washer, Plate (T=1.0)UR UN |
90201-225A4-00 |
from US $1.28 |
||
|
25
|
25
90201-222F0-00 Washer, Plate (T=0.5)UR UN |
90201-222F0-00 |
from US $1.84 |
||
|
26
|
26
90387-1405J-00
Collar
|
90387-1405J-00 |
— | ||
|
27
|
27
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
28
|
28
90105-10741-00 Bolt, Flange |
90105-10741-00 |
US $2.69 |
||
| replacement | |||||
|
28
|
28
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
