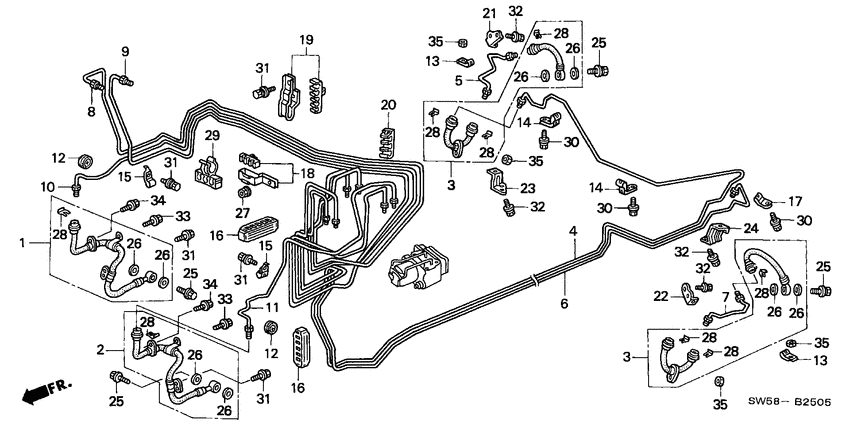

Brake lines ('97-; V6) Diagram Honda 3.2TL
- Year
- 1998
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-SZ5-000
Hose set
|
01464-SZ5-000 |
— | ||
|
2
|
2
01465-SZ5-000
Hose set
|
01465-SZ5-000 |
— | ||
|
3
|
3
01466-SW3-J00 Hose setRR. BRAKE (DOT NCRN - JAPAN -) |
01466-SW3-J00 |
US $50.56 |
||
|
4
|
4
46330-SZ5-J11
Pipe comp. c
|
46330-SZ5-J11 |
— | ||
|
5
|
5
46331-SL5-A50
Pipe comp. e
|
46331-SL5-A50 |
— | ||
|
6
|
6
46340-SZ5-J11
Pipe comp. d
|
46340-SZ5-J11 |
— | ||
|
7
|
7
46361-SL5-A50
Pipe comp. e
|
46361-SL5-A50 |
— | ||
|
8
|
8
46374-SZ5-J12
Pipe comp. u
|
46374-SZ5-J12 |
— | ||
|
9
|
9
46375-SZ5-J10
Pipe comp. v
|
46375-SZ5-J10 |
— | ||
|
10
|
10
46376-SZ5-J11
Pipe comp. w
|
46376-SZ5-J11 |
— | ||
|
11
|
11
46377-SZ5-J10
Pipe comp. x
|
46377-SZ5-J10 |
— | ||
|
12
|
12
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
13
|
13
46391-SE0-931 ClampBRAKE PIPE |
46391-SE0-931 |
US $4.06 |
||
|
14
|
14
46391-SL4-900
Clip
|
46391-SL4-900 |
— | ||
|
15
|
15
46391-SM4-J01 ClampBRAKE PIPE |
46391-SM4-J01 |
US $3.92 |
||
|
16
|
16
46391-SW3-003 ClipBRAKE PIPE |
46391-SW3-003 |
US $7 |
||
|
17
|
17
46392-SR3-921 ClipBRAKE PIPE |
46392-SR3-921 |
US $6.02 |
||
|
18
|
18
46392-SR3-931
Clip
|
46392-SR3-931 |
— | ||
|
19
|
19
46394-SP0-000
Clamp a
|
46394-SP0-000 |
— | ||
|
20
|
20
46394-SR3-003 Clip b |
46394-SR3-003 |
US $1.75 |
||
|
21
|
21
46435-SM4-000 BracketR. RR. BRAKE HOSE |
46435-SM4-000 |
US $7.56 |
||
|
22
|
22
46436-SM4-000 BracketL. RR. BRAKE HOSE |
46436-SM4-000 |
US $7.56 |
||
|
23
|
23
46438-SL4-010
Bracket
|
46438-SL4-010 |
— | ||
|
24
|
24
46439-SL5-000
Bracket
|
46439-SL5-000 |
— | ||
|
25
|
25
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
26
|
26
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
27
|
27
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
28
|
28
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
29
|
29
91592-SP0-003
Clip
|
91592-SP0-003 |
— | ||
|
30
|
30
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
31
|
31
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
32
|
32
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
33
|
33
93412-080-160-8 Bolt-washer8X16 |
93412-080-160-8 |
from US $0.67 |
||
| replacement | |||||
|
33
|
33
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
34
|
34
93412-080-200-8
Bolt-washer
|
93412-080-200-8 |
— | ||
| replacement | |||||
|
34
|
34
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
35
|
35
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
35
|
35
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
