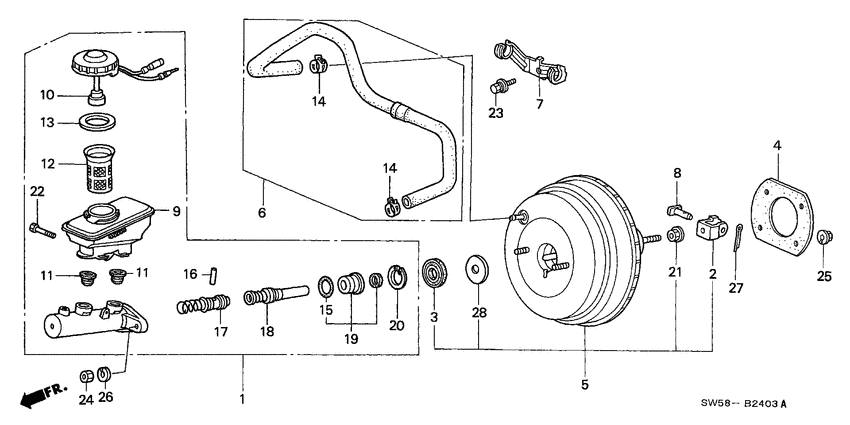

Brake master cylinder (V6; '97-) Diagram Honda 3.2TL
- Year
- 1998
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SZ5-J11 Cylinder assy.MASTER |
46100-SZ5-J11 |
US $332.80 |
||
|
2
|
2
46151-SA7-951 Yoke compNISSIN |
46151-SA7-951 |
US $11.07 |
||
|
3
|
3
46185-SD4-932
Seal
|
46185-SD4-932 |
— | ||
|
4
|
4
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
5
|
5
46400-S30-952 Power assy.MASTER (8"+9") |
46400-S30-952 |
US $675.84 |
||
|
6
|
6
46402-SZ5-023
Tube assy
|
46402-SZ5-023 |
— | ||
|
7
|
7
46407-SE0-010
Clamp
|
46407-SE0-010 |
— | ||
|
8
|
8
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
9
|
9
46660-SZ5-J11
Reservoir comp.
|
46660-SZ5-J11 |
— | ||
|
10
|
10
46662-SZ5-J11 Cap comp.RESERVE TANK |
46662-SZ5-J11 |
US $51.20 |
||
|
11
|
11
46665-S04-J01 Grommet |
46665-S04-J01 |
from US $5.33 |
||
|
12
|
12
46666-SZ5-J11
Filter
|
46666-SZ5-J11 |
— | ||
|
13
|
13
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $8.73 |
||
|
14
|
14
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
15
|
15
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
16
|
16
57515-S30-003 PinSTOP |
57515-S30-003 |
US $2.31 |
||
|
17
|
17
57520-SD4-023 Piston assy.PRIMARY |
57520-SD4-023 |
from US $46.34 |
||
|
18
|
18
57540-SD4-023 Piston assy.SECONDARY |
57540-SD4-023 |
US $46.34 |
||
|
19
|
19
57560-S04-J51 Guide assyPISTON |
57560-S04-J51 |
US $14.34 |
||
|
20
|
20
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
21
|
21
90301-S30-003 NutFLANGE, 10MM |
90301-S30-003 |
US $3.29 |
||
|
22
|
22
92301-05025-0H BoltRECESSED, 5X25 |
92301-05025-0H |
from US $0.52 |
||
|
23
|
23
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
24
|
24
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
24
|
24
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
25
|
25
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
26
|
26
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
27
|
27
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
|
28
|
28
46445-SD4-931
Plate
|
46445-SD4-931 |
— | ||
