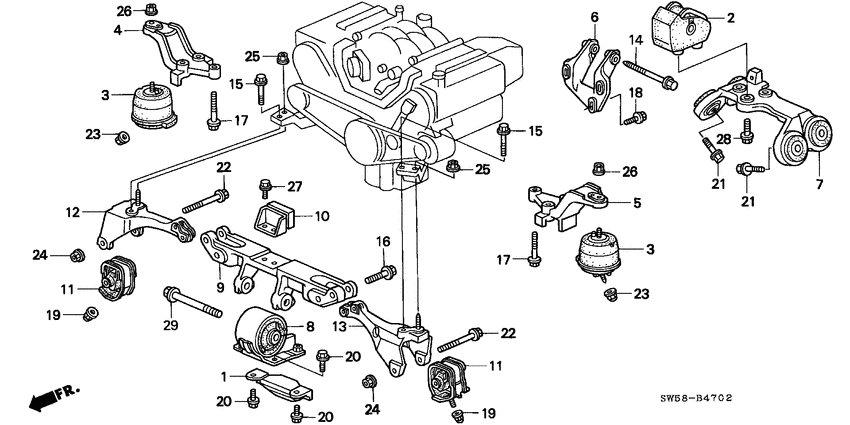

Engine mounts (V6) Diagram Honda 3.2TL
- Year
- 1998
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50254-SP0-000
Mass
|
50254-SP0-000 |
— | ||
|
2
|
2
50805-SZ5-020
Stopper
|
50805-SZ5-020 |
— | ||
|
3
|
3
50820-SZ5-003
Mounting assy.
|
50820-SZ5-003 |
— | ||
|
4
|
4
50825-SZ5-010
Bracket
|
50825-SZ5-010 |
— | ||
|
5
|
5
50826-SZ5-010
Bracket
|
50826-SZ5-010 |
— | ||
|
6
|
6
50827-SZ5-000
Bracket
|
50827-SZ5-000 |
— | ||
|
7
|
7
50835-SZ5-020
Beam assy
|
50835-SZ5-020 |
— | ||
|
8
|
8
50840-SZ5-003
Rubber assy.
|
50840-SZ5-003 |
— | ||
|
9
|
9
50846-SZ5-000
Bracket
|
50846-SZ5-000 |
— | ||
|
10
|
10
50848-SZ5-000
Damper
|
50848-SZ5-000 |
— | ||
|
11
|
11
50851-SZ5-000
Stopper
|
50851-SZ5-000 |
— | ||
|
12
|
12
50853-SZ5-010
Bracket assy
|
50853-SZ5-010 |
— | ||
|
13
|
13
50854-SZ5-010
Bracket assy
|
50854-SZ5-010 |
— | ||
|
14
|
14
90196-SP0-000
Bolt
|
90196-SP0-000 |
— | ||
|
15
|
15
90166-SP0-000
Bolt
|
90166-SP0-000 |
— | ||
|
16
|
16
90166-SZ5-000
Bolt
|
90166-SZ5-000 |
— | ||
|
17
|
17
90167-SP0-000 BoltFLANGE, 10X45 |
90167-SP0-000 |
US $2.10 |
||
|
18
|
18
90181-SP0-000
Bolt
|
90181-SP0-000 |
— | ||
|
19
|
19
90182-SL0-004 NutSELF-LOCK, 10MM |
90182-SL0-004 |
US $3.01 |
||
|
20
|
20
90183-SL4-010 BoltFLANGE, 10X25 |
90183-SL4-010 |
US $3.08 |
||
|
21
|
21
90187-SP0-000 BoltFLANGE, 10X48 |
90187-SP0-000 |
US $3.43 |
||
|
22
|
22
90189-SP0-N10
Bolt
|
90189-SP0-N10 |
— | ||
|
23
|
23
90365-SP0-003
Nut
|
90365-SP0-003 |
— | ||
|
24
|
24
90367-SL0-000 NutFLANGE, 12MM |
90367-SL0-000 |
from US $1.40 |
||
|
25
|
25
90373-SP0-000 NutFLANGE, 10MM |
90373-SP0-000 |
from US $2.86 |
||
|
26
|
26
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
27
|
27
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
|
28
|
28
95701-120-250-5 BoltFLANGE, 12X25 |
95701-120-250-5 |
US $1.04 |
||
|
29
|
29
95701-121-200-5 BoltFLANGE, 12X120 |
95701-121-200-5 |
US $1.85 |
