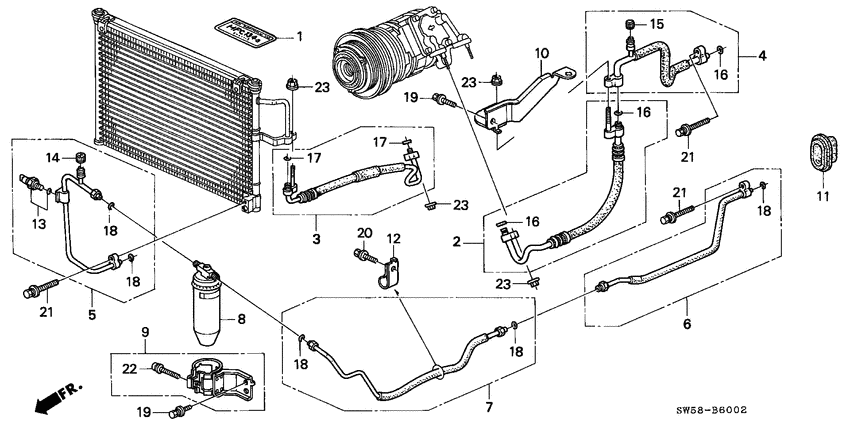

Hoses (V6) Diagram Honda 3.2TL
- Year
- 1998
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
2
|
2
80311-SZ5-003
Hose comp.
|
80311-SZ5-003 |
— | ||
|
3
|
3
80315-SZ5-003
Hose comp.
|
80315-SZ5-003 |
— | ||
|
4
|
4
80321-SZ5-003
Pipe
|
80321-SZ5-003 |
— | ||
|
5
|
5
80331-SZ5-013
Pipe
|
80331-SZ5-013 |
— | ||
|
6
|
6
80341-SZ5-003
Pipe a
|
80341-SZ5-003 |
— | ||
|
7
|
7
80342-SZ5-003
Pipe b
|
80342-SZ5-003 |
— | ||
|
8
|
8
80351-SZ5-003
Receiver comp
|
80351-SZ5-003 |
— | ||
|
9
|
9
80352-SZ5-013
Bracket
|
80352-SZ5-013 |
— | ||
|
10
|
10
80366-SZ5-003
Bracket
|
80366-SZ5-003 |
— | ||
|
11
|
11
80380-SW5-003
Grommet
|
80380-SW5-003 |
— | ||
|
12
|
12
80382-SP0-000 Clamp bRECEIVER PIPE |
80382-SP0-000 |
US $4.62 |
||
|
13
|
13
80440-SZ5-003
Switch
|
80440-SZ5-003 |
— | ||
|
14
|
14
80865-SW5-003 Cap comp.VALVE (H) |
80865-SW5-003 |
US $3.36 |
||
|
15
|
15
80866-SW5-003 Cap comp.VALVE(L) |
80866-SW5-003 |
US $2.87 |
||
|
16
|
16
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
17
|
17
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
18
|
18
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
19
|
19
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93403-060-250-8 Bolt-washer6X25 |
93403-060-250-8 |
US $0.74 |
||
|
22
|
22
93893-050-250-8 Screw-washer5X25 |
93893-050-250-8 |
US $0.59 |
||
|
23
|
23
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
