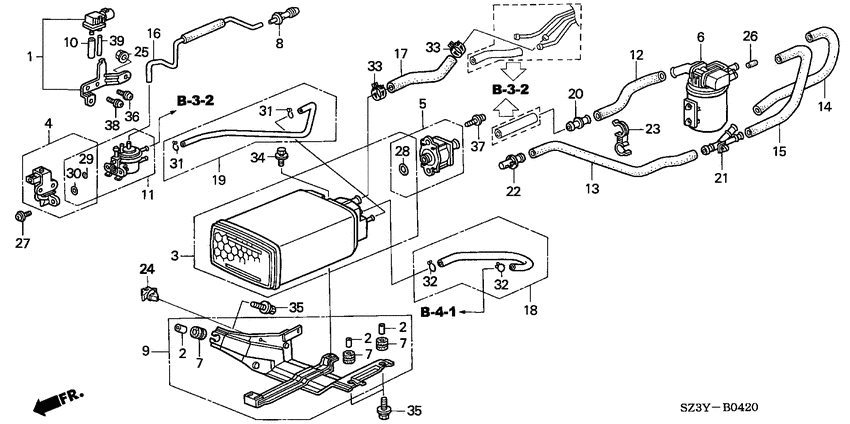

Canister (1) Diagram Honda 3.5RL
- Year
- 2004
- Model code
- 3.5RL
- Sales region
- General
- Engine
- C35A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.5RL
- area code
- KD
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04101-P5A-A00 Sensor assyVENT PRESSURE |
04101-P5A-A00 |
US $203.52 |
||
|
2
|
2
16923-S84-A00 CollarDISTANCE |
16923-S84-A00 |
US $2.10 |
||
|
3
|
3
17011-SZ3-A50
Canister assy
|
17011-SZ3-A50 |
— | ||
|
4
|
4
17012-S10-L01
Valve set
|
17012-S10-L01 |
— | ||
|
5
|
5
17310-S5A-L31
Valve
|
17310-S5A-L31 |
— | ||
|
6
|
6
17315-S84-A02 Filter, Canister |
17315-S84-A02 |
US $96.56 |
||
|
7
|
7
17322-S84-A00 RubberCANISTER MOUNTING |
17322-S84-A00 |
US $1.61 |
||
|
8
|
8
17355-SZ3-A51
Joint
|
17355-SZ3-A51 |
— | ||
|
9
|
9
17358-SZ3-A50
Bracket
|
17358-SZ3-A50 |
— | ||
|
10
|
10
17358-S02-L00
Tube
|
17358-S02-L00 |
— | ||
|
11
|
11
17371-S0X-A02
Valve
|
17371-S0X-A02 |
— | ||
|
12
|
12
17372-SZ3-950
Tube b
|
17372-SZ3-950 |
— | ||
|
13
|
13
17373-SZ3-950
Tube
|
17373-SZ3-950 |
— | ||
|
14
|
14
17374-SZ3-950
Tube
|
17374-SZ3-950 |
— | ||
|
15
|
15
17375-SZ3-950
Tube
|
17375-SZ3-950 |
— | ||
|
16
|
16
17706-SZ3-A50
Tube comp
|
17706-SZ3-A50 |
— | ||
|
17
|
17
17726-SZ3-A50
Tube
|
17726-SZ3-A50 |
— | ||
|
18
|
18
17728-SZ3-A50
Tube assy
|
17728-SZ3-A50 |
— | ||
|
19
|
19
17729-SZ3-A50
Tube assy
|
17729-SZ3-A50 |
— | ||
|
20
|
20
17741-SZ3-951
Joint
|
17741-SZ3-951 |
— | ||
|
21
|
21
17742-SZ3-951
Joint
|
17742-SZ3-951 |
— | ||
|
22
|
22
17743-SZ3-951 JointDRAIN TUBE |
17743-SZ3-951 |
US $3.64 |
||
|
23
|
23
25216-PR3-851 ClampATF HOSE |
25216-PR3-851 |
US $2.31 |
||
|
24
|
24
46393-SE1-003
Clip s
|
46393-SE1-003 |
— | ||
|
25
|
25
90301-SE0-J00 NutFLANGE, 6MM |
90301-SE0-J00 |
US $4.23 |
||
|
26
|
26
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $2.37 |
||
|
27
|
27
90890-SV4-000 Screw-washer5X16 |
90890-SV4-000 |
from US $1.54 |
||
|
28
|
28
91391-S84-A00 O-ring |
91391-S84-A00 |
US $3.29 |
||
|
29
|
29
91392-SV4-000
O-ring
|
91392-SV4-000 |
— | ||
| replacement | |||||
|
29
|
29
91392-S02-000 O-ring |
91392-S02-000 |
US $8.47 |
||
|
30
|
30
91393-SV4-000
O-ring
|
91393-SV4-000 |
— | ||
| replacement | |||||
|
30
|
30
91393-S02-000 O-ring |
91393-S02-000 |
US $8.47 |
||
|
31
|
31
91401-SDC-000 ClipTUBE(B10) |
91401-SDC-000 |
US $0.91 |
||
|
32
|
32
91402-SDC-000 ClipTUBE(B12) |
91402-SDC-000 |
US $1.79 |
||
|
33
|
33
91417-SZ3-003 ClampFUEL TUBE (D20) (CHUO HATSUJO) |
91417-SZ3-003 |
from US $3.28 |
||
|
34
|
34
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
35
|
35
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
36
|
36
93893-050-080-8 Screw-washer5X8 |
93893-050-080-8 |
from US $0.52 |
||
|
37
|
37
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
38
|
38
93894-050-160-5 Screw-washer5X16 |
93894-050-160-5 |
US $0.44 |
||
|
39
|
39
95001-350-456-0 TubeFUEL, 3.5X45 (95001-35001-60M) |
95001-350-456-0 |
US $0.59 |
||
