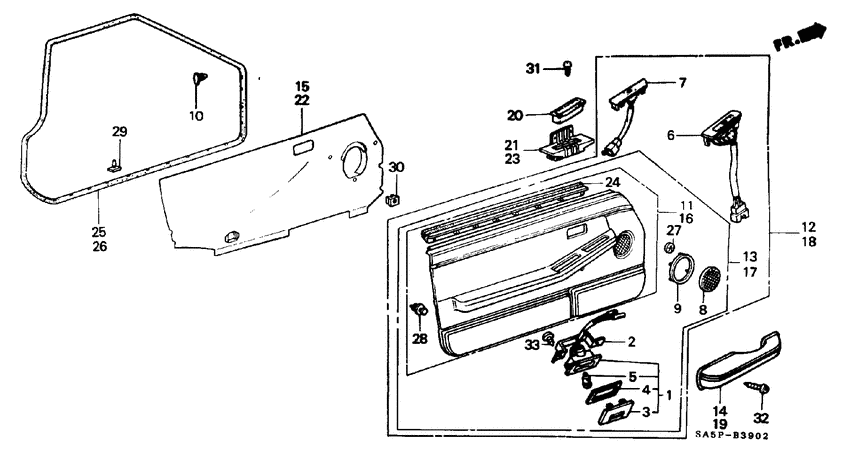

Door lining (3D) Diagram Honda ACCORD
- Year
- 1982
- Model code
- ACCORD
- Sales region
- General
- Engine
- EL
- transmission
- 3AT
- Number of doors
- 3
- grade
- GL
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
39126-SA5-000
Ring
|
39126-SA5-000 |
— | ||
|
9
|
9
39127-SA5-000
Plate
|
39127-SA5-000 |
— | ||
|
10
|
10
73862-672-003
Clip
|
73862-672-003 |
— | ||
|
11
|
11
75820-SA5-620ZA LiningR. FR. DOOR *B30L* |
75820-SA5-620ZA |
US $311.04 |
||
|
11
|
11
75820-SA5-620ZB
Lining
|
75820-SA5-620ZB |
— | ||
|
11
|
11
75820-SA5-620ZC LiningR. FR. DOOR *YR63L* |
75820-SA5-620ZC |
US $311.04 |
||
|
14
|
14
75823-SA5-003ZF ArmrestR. FR. DOOR *YR62L* |
75823-SA5-003ZF |
US $70.40 |
||
|
14
|
14
75823-SA5-003ZA ArmrestR. FR. DOOR *B29L* |
75823-SA5-003ZA |
US $70.40 |
||
|
14
|
14
75823-SA5-003ZD
Armrest
|
75823-SA5-003ZD |
— | ||
|
15
|
15
75826-SA5-000 Seal aR. DOOR PANEL HOLE |
75826-SA5-000 |
US $25.86 |
||
|
16
|
16
75830-SA5-620ZB LiningL. FR. DOOR *NH41L* |
75830-SA5-620ZB |
US $284.16 |
||
|
16
|
16
75830-SA5-620ZC LiningL. FR. DOOR *YR63L* |
75830-SA5-620ZC |
US $284.16 |
||
|
16
|
16
75830-SA5-620ZA LiningL. FR. DOOR *B30L* |
75830-SA5-620ZA |
US $284.16 |
||
|
19
|
19
75833-SA5-003ZA ArmrestL. FR. DOOR *B29L* |
75833-SA5-003ZA |
US $70.40 |
||
|
19
|
19
75833-SA5-003ZD
Armrest
|
75833-SA5-003ZD |
— | ||
|
19
|
19
75833-SA5-003ZF ArmrestL. FR. DOOR *YR62L* |
75833-SA5-003ZF |
US $70.40 |
||
|
22
|
22
75836-SA5-000 Seal aL. DOOR PANEL HOLE |
75836-SA5-000 |
US $25.86 |
||
|
25
|
25
75880-SA5-901
Weatherstrip
|
75880-SA5-901 |
— | ||
|
26
|
26
75885-SA5-901
Weatherstrip
|
75885-SA5-901 |
— | ||
|
27
|
27
90307-SA5-003
Nut b
|
90307-SA5-003 |
— | ||
|
28
|
28
90663-671-003
Clip
|
90663-671-003 |
— | ||
|
29
|
29
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
30
|
30
90666-SA5-003
Grommet
|
90666-SA5-003 |
— | ||
|
32
|
32
93901-16320 ScrewTAPPING, 6X20 |
93901-16320 |
US $0.44 |
