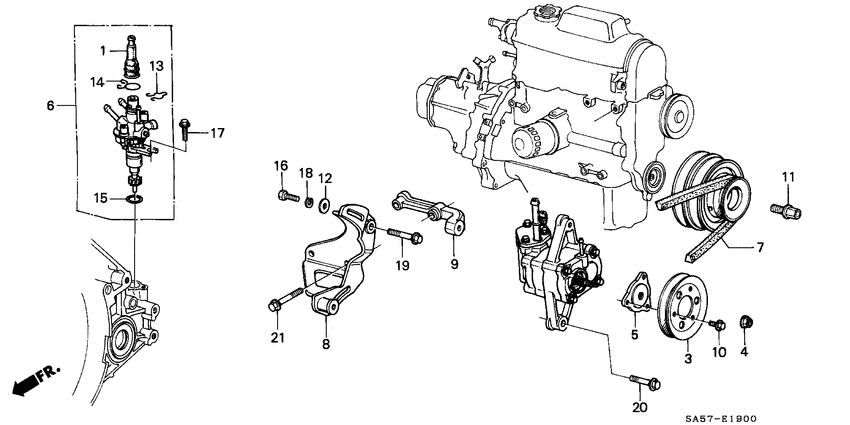

P.s. pump/speed sensor Diagram Honda ACCORD
- Year
- 1983
- Model code
- ACCORD
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX
- power steering
- +
- area code
- KX
- sunroof
- +
- power window
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23814-689-940
Seal
|
23814-689-940 |
— | ||
|
3
|
3
56472-671-000
Pulley
|
56472-671-000 |
— | ||
|
4
|
4
56473-671-000
Nut
|
56473-671-000 |
— | ||
|
5
|
5
56481-PC1-000
Flange
|
56481-PC1-000 |
— | ||
|
6
|
6
56500-689-020
Sensor assy
|
56500-689-020 |
— | ||
|
7
|
7
56992-692-013 BeltPOWER STEERING PUMP (BANDO) |
56992-692-013 |
US $16 |
||
|
7
|
7
56992-692-004 BeltPOWER STEERING PUMP (MITSUBOSHI) |
56992-692-004 |
US $17.28 |
||
|
8
|
8
56994-PC1-010
Bracket
|
56994-PC1-010 |
— | ||
|
9
|
9
56999-PA6-910
Bracket
|
56999-PA6-910 |
— | ||
|
10
|
10
90011-896-000 BoltFLANGE, 6X8 |
90011-896-000 |
US $3.98 |
||
|
11
|
11
90017-PB2-004
Bolt
|
90017-PB2-004 |
— | ||
|
11
|
11
90017-PB2-003
Bolt
|
90017-PB2-003 |
— | ||
| replacement | |||||
|
11
|
11
90017-PB2-004
Bolt
|
90017-PB2-004 |
— | ||
|
12
|
12
90430-657-000 Washer23X8.3X3.2 |
90430-657-000 |
US $9.33 |
||
|
13
|
13
90633-671-000 ClipSPEEDOMETER CABLE |
90633-671-000 |
US $3.29 |
||
|
14
|
14
90653-689-000
Circlip
|
90653-689-000 |
— | ||
|
15
|
15
91313-611-000 O-ring23.5X2 |
91313-611-000 |
US $2.59 |
||
|
16
|
16
90115-689-000 BoltHEX., 8X28 |
90115-689-000 |
US $3.57 |
||
|
17
|
17
93493-060-200-8 Bolt-washer6X20 |
93493-060-200-8 |
from US $0.59 |
||
| replacement | |||||
|
17
|
17
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
18
|
18
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
19
|
19
95700-100-400-8 BoltFLANGE, 10X40 00000000 - 1800000 |
95700-100-400-8 |
from US $0.81 |
||
| replacement | |||||
|
19
|
19
95701-100-400-8 BoltFLANGE, 10X40 00000000 - 1800000 |
95701-100-400-8 |
from US $0.81 |
||
|
19
|
19
95800-100-350-8 BoltFLANGE, 10X35 1800001 - |
95800-100-350-8 |
from US $0.81 |
||
| replacement | |||||
|
19
|
19
95801-100-350-8 BoltFLANGE, 10X35 1800001 - |
95801-100-350-8 |
from US $0.98 |
||
|
20
|
20
95800-100-300-8
Bolt
|
95800-100-300-8 |
— | ||
|
21
|
21
95800-100-400-8 BoltFLANGE, 10X40 |
95800-100-400-8 |
from US $0.81 |
||
| replacement | |||||
|
21
|
21
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
