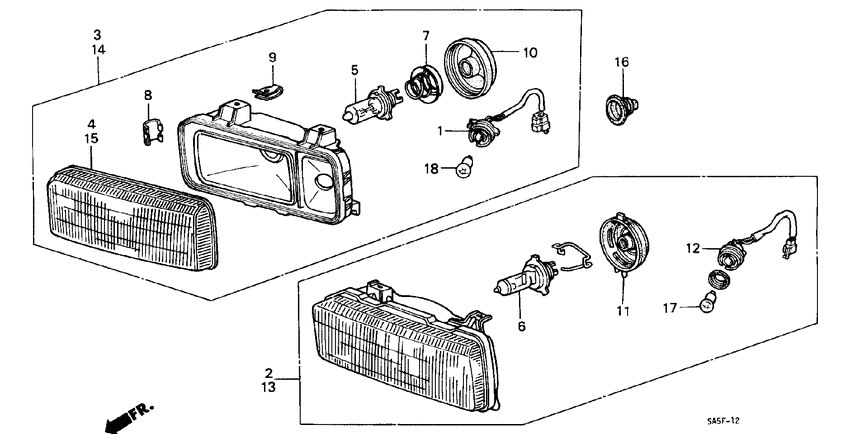

Headlight Diagram Honda ACCORD
- Year
- 1983
- Model code
- ACCORD
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- power steering
- +
- area code
- KF
- sunroof
- +
- power window
- +
- yellow bulb
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32128-SA5-612
Socket comp.
|
32128-SA5-612 |
— | ||
|
2
|
2
33100-SA5-615
Headlight assy
0C050782 - |
33100-SA5-615 |
— | ||
|
2
|
2
33100-SA5-625
Headlight assy
0C050782 - |
33100-SA5-625 |
— | ||
|
3
|
3
33100-SA5-624
Headlight assy
0C050782 - |
33100-SA5-624 |
— | ||
|
3
|
3
33100-SA5-614
Headlight assy
0C050782 - |
33100-SA5-614 |
— | ||
|
4
|
4
33101-SA5-612
Lens
|
33101-SA5-612 |
— | ||
|
5
|
5
33115-692-742
Bulb
|
33115-692-742 |
— | ||
|
5
|
5
33115-SA5-612
Bulb
|
33115-SA5-612 |
— | ||
|
5
|
5
33115-SA5-622
Bulb
|
33115-SA5-622 |
— | ||
|
5
|
5
33115-SA5-621
Bulb
0C200001 - |
33115-SA5-621 |
— | ||
|
5
|
5
33115-692-622
Bulb
|
33115-692-622 |
— | ||
|
6
|
6
33115-692-741 BulbHEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN) |
33115-692-741 |
from US $27.20 |
||
|
6
|
6
34901-371-621
Bulb
|
34901-371-621 |
— | ||
|
7
|
7
33116-SA5-612
Holder comp
|
33116-SA5-612 |
— | ||
|
8
|
8
33121-SA5-612
Clip
|
33121-SA5-612 |
— | ||
|
9
|
9
33122-SA5-612
Clip
|
33122-SA5-612 |
— | ||
|
10
|
10
33126-SA5-612
Clip
|
33126-SA5-612 |
— | ||
|
13
|
13
33150-SA5-615
Headlight assy
0C050782 - |
33150-SA5-615 |
— | ||
|
13
|
13
33150-SA5-625
Headlight assy
0C050782 - |
33150-SA5-625 |
— | ||
|
14
|
14
33150-SA5-624
Headlight assy
0C050782 - |
33150-SA5-624 |
— | ||
|
14
|
14
33150-SA5-614
Headlight assy
0C050782 - |
33150-SA5-614 |
— | ||
|
15
|
15
33151-SA5-612
Lens
|
33151-SA5-612 |
— | ||
|
17
|
17
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
18
|
18
34909-SA5-621
Bulb
|
34909-SA5-621 |
— |
