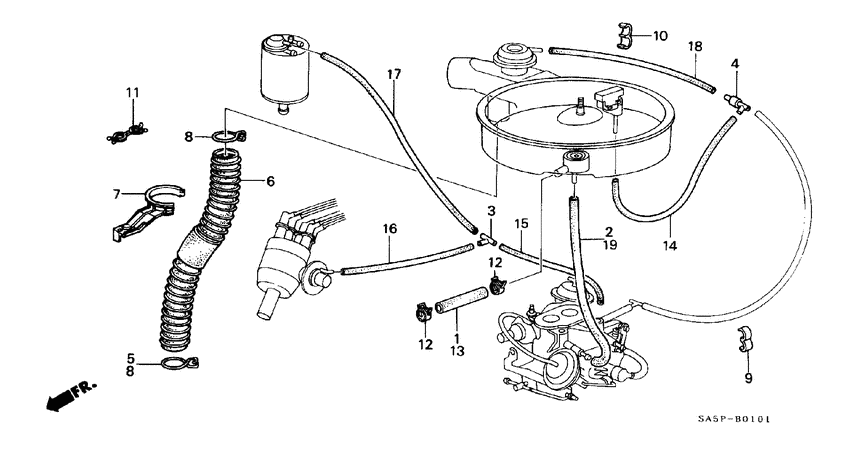

Air cleaner tubing Diagram Honda ACCORD
- Year
- 1982
- Model code
- ACCORD
- Sales region
- General
- Engine
- EL
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- power steering
- +
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
17150-PA6-004
Valve
|
17150-PA6-004 |
— | ||
|
6
|
6
17302-PC3-641
Pipe
|
17302-PC3-641 |
— | ||
|
7
|
7
17303-PC3-600
Clamp
|
17303-PC3-600 |
— | ||
|
8
|
8
17308-634-000 ClipHOT AIR DUCT 00000000 - 0C199999 |
17308-634-000 |
US $3.43 |
||
|
9
|
9
36061-671-000
Clamp a
|
36061-671-000 |
— | ||
|
12
|
12
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
12
|
12
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
13
|
13
95005-121-152-0
Tube
00000000 - 0C199999 |
95005-121-152-0 |
— | ||
|
14
|
14
95005-351-001-J Tube3.5X100 (95005-35001-10M) |
95005-351-001-J |
US $1.18 |
||
|
18
|
18
95005-353-301-J Tube3.5X330 (95005-35001-10M) |
95005-353-301-J |
US $3.85 |
||
|
19
|
19
95005-551-401-0 Tube5.3X140 (95005-55001-10M) |
95005-551-401-0 |
US $3.26 |
||
