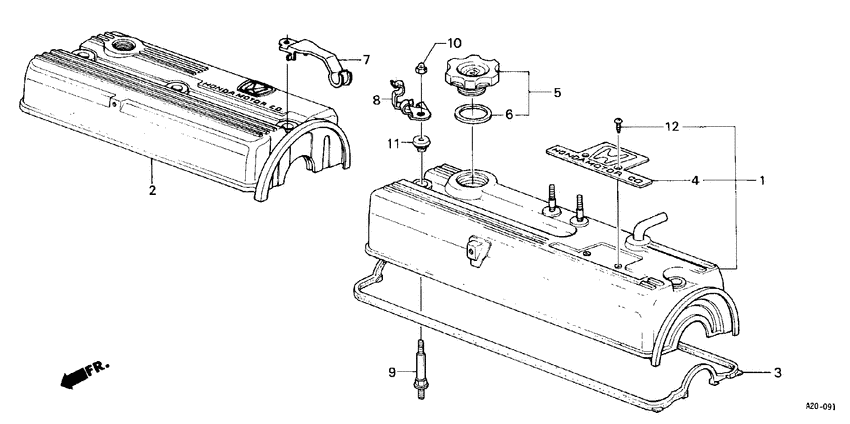

Cylinder head cover Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12300-PH1-000
Cover assy.
|
12300-PH1-000 |
— | ||
|
3
|
3
12341-PC6-000 GasketCYLINDER HEAD COVER |
12341-PC6-000 |
US $20.22 |
||
|
4
|
4
12345-PH1-010
Emblem
|
12345-PH1-010 |
— | ||
|
5
|
5
15610-PC6-000 Cap assy.OIL FILLER |
15610-PC6-000 |
from US $11.40 |
||
|
6
|
6
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
8
|
8
17351-PJ0-600
Clamp
|
17351-PJ0-600 |
— | ||
|
9
|
9
90013-PC6-000
Bolt
|
90013-PC6-000 |
— | ||
|
10
|
10
90207-PC6-000
Nut
|
90207-PC6-000 |
— | ||
|
11
|
11
90441-PC6-000
Washer
|
90441-PC6-000 |
— | ||
|
12
|
12
93700-030-080-B ScrewOVAL, 3X8 |
93700-030-080-B |
from US $0.52 |
