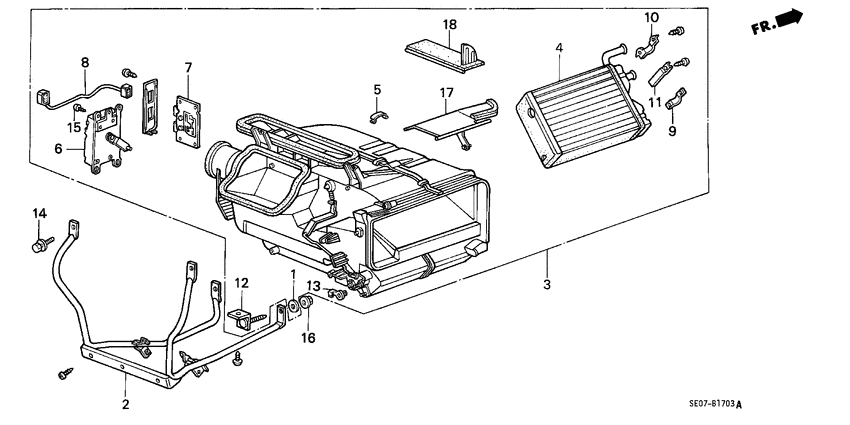

Heater unit Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39248-692-003 PackingHEATER |
39248-692-003 |
US $1.54 |
||
|
2
|
2
77170-SE3-A00
Frame comp
|
77170-SE3-A00 |
— | ||
|
3
|
3
79100-SE0-A03
Heater unit
0C004321 - 0C005459 |
79100-SE0-A03 |
— | ||
|
3
|
3
79100-SE0-A04
Heater unit
0C005460 - |
79100-SE0-A04 |
— | ||
|
3
|
3
79100-SE0-A02 Heater unit00000000 - 0C004320 |
79100-SE0-A02 |
US $774.40 |
||
|
4
|
4
79110-SE0-A01
Core comp
|
79110-SE0-A01 |
— | ||
|
5
|
5
79115-SE0-003
Clamp
|
79115-SE0-003 |
— | ||
|
6
|
6
79140-SE0-A02 Motor assy.MODE 00000000 - 0C002968 |
79140-SE0-A02 |
US $136.96 |
||
|
6
|
6
79140-SE0-A03 Motor assy.MODE 0C002969 - |
79140-SE0-A03 |
US $134.40 |
||
|
7
|
7
79150-SE0-003
Amplifier
|
79150-SE0-003 |
— | ||
|
8
|
8
79155-SE0-A01
Sub harness
|
79155-SE0-A01 |
— | ||
|
9
|
9
79160-SE0-003
Holder a
|
79160-SE0-003 |
— | ||
|
10
|
10
79161-SE0-003
Holder b
|
79161-SE0-003 |
— | ||
|
11
|
11
79162-SE0-003
Holder
|
79162-SE0-003 |
— | ||
|
12
|
12
79165-SE0-003
Bolt
|
79165-SE0-003 |
— | ||
|
13
|
13
80789-SH3-003 HolderROD |
80789-SH3-003 |
US $2.38 |
||
|
14
|
14
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
14
|
14
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
15
|
15
93901-25320 ScrewTAPPING, 5X16 |
93901-25320 |
from US $0.37 |
||
|
16
|
16
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
17
|
17
79122-SE0-306
Guide
0C004321 - |
79122-SE0-306 |
— | ||
|
18
|
18
79123-SE0-306
Damper a
0C004321 - |
79123-SE0-306 |
— | ||
