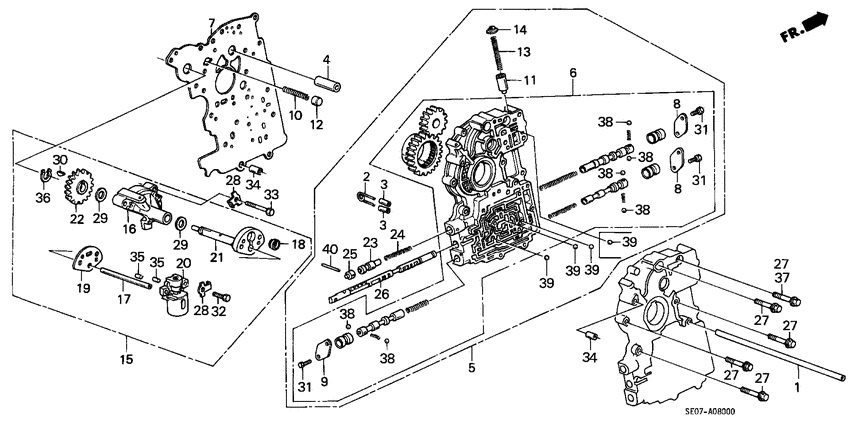

Main valve/governor Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22741-PC9-000
Pipe
|
22741-PC9-000 |
— | ||
|
2
|
2
24461-PA9-000
Spring
|
24461-PA9-000 |
— | ||
| replacement | |||||
|
2
|
2
24461-PA9-010
Spring
|
24461-PA9-010 |
— | ||
|
3
|
3
24471-612-000 Roller6X16 |
24471-612-000 |
US $3.43 |
||
|
4
|
4
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $11.05 |
||
|
5
|
5
27000-PC9-860
Body assy
6011590 - 6010386 |
27000-PC9-860 |
— | ||
|
5
|
5
27000-PC9-944
Body assy
00000000 - 6011589 |
27000-PC9-944 |
— | ||
|
5
|
5
27000-PC9-861
Body assy
6010387 - |
27000-PC9-861 |
— | ||
|
6
|
6
27105-PC9-861
Body sub assy.
6010387 - |
27105-PC9-861 |
— | ||
|
6
|
6
27105-PC9-860
Body sub assy.
00000000 - 6010386 |
27105-PC9-860 |
— | ||
|
7
|
7
27112-PC9-860
Plate
6011590 - |
27112-PC9-860 |
— | ||
|
7
|
7
27112-PC9-912
Plate
00000000 - 6011589 |
27112-PC9-912 |
— | ||
|
8
|
8
27122-PA9-000 CoverSHIFT VALVE |
27122-PA9-000 |
US $3.29 |
||
|
9
|
9
27122-PC9-000 CoverSHIFT VALVE |
27122-PC9-000 |
US $2.73 |
||
|
10
|
10
27254-PC9-910
Spring
|
27254-PC9-910 |
— | ||
|
10
|
10
27253-PC9-910
Spring
|
27253-PC9-910 |
— | ||
|
10
|
10
27252-PC9-910
Spring
|
27252-PC9-910 |
— | ||
|
10
|
10
27255-PC9-910
Spring
|
27255-PC9-910 |
— | ||
|
11
|
11
27256-PA9-000
Valve
|
27256-PA9-000 |
— | ||
|
12
|
12
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
13
|
13
27257-PA9-000
Spring
|
27257-PA9-000 |
— | ||
|
14
|
14
27258-680-900 SeatRELIEF VALVE SPRING |
27258-680-900 |
from US $1.82 |
||
|
15
|
15
27300-PC9-910 Governor assy.00000000 - 6024064 |
27300-PC9-910 |
US $209.92 |
||
|
15
|
15
27300-PC9-911
Governor assy.
6024065 - |
27300-PC9-911 |
— | ||
|
16
|
16
27310-PC9-910
Holder comp
|
27310-PC9-910 |
— | ||
|
17
|
17
27312-PC9-000
Pipe
|
27312-PC9-000 |
— | ||
|
18
|
18
27313-PF4-000 FilterGOVERNOR 6024124 - |
27313-PF4-000 |
US $4.48 |
||
|
18
|
18
27313-PC9-003
Filter
00000000 - 6024123 |
27313-PC9-003 |
— | ||
|
19
|
19
27314-PC9-000 PlateGOVERNOR |
27314-PC9-000 |
US $3.15 |
||
|
20
|
20
27315-PC9-910
Body assy
|
27315-PC9-910 |
— | ||
|
21
|
21
27341-PC9-010
Shaft
00000000 - 6024123 |
27341-PC9-010 |
— | ||
|
21
|
21
27341-PC9-020
Shaft
6024124 - |
27341-PC9-020 |
— | ||
|
22
|
22
27342-PF0-701
Gear
|
27342-PF0-701 |
— | ||
|
23
|
23
27415-PF4-000
Valve
|
27415-PF4-000 |
— | ||
|
24
|
24
27417-PF4-000
Spring
|
27417-PF4-000 |
— | ||
|
25
|
25
27419-PF4-000
Cap
|
27419-PF4-000 |
— | ||
|
26
|
26
27421-PC9-020
Valve
|
27421-PC9-020 |
— | ||
|
27
|
27
90007-PA9-000 BoltFLANGE, 6X30 00000000 - 6011097 |
90007-PA9-000 |
US $1.94 |
||
| replacement | |||||
|
27
|
27
95701-060-300-8 BoltFLANGE, 6X30 00000000 - 6011097 |
95701-060-300-8 |
from US $0.74 |
||
|
27
|
27
95700-060-280-8 BoltFLANGE, 6X28 6011098 - |
95700-060-280-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
95701-060-280-8 BoltFLANGE, 6X28 6011098 - |
95701-060-280-8 |
from US $0.74 |
||
|
28
|
28
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
29
|
29
90451-PC9-000 WasherTHRUST, 14MM |
90451-PC9-000 |
from US $2.44 |
||
|
30
|
30
90741-PA9-000 KeyWOODRUFF, 3MM |
90741-PA9-000 |
US $2.10 |
||
|
31
|
31
92000-05012-0A BoltHEX., 5X12 |
92000-05012-0A |
from US $0.37 |
||
| replacement | |||||
|
31
|
31
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
32
|
32
93300-060-180-A BoltHEX., 6X18 |
93300-060-180-A |
US $0.44 |
||
|
33
|
33
93300-060-300-H BoltHEX., 6X30 |
93300-060-300-H |
US $0.52 |
||
|
34
|
34
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
35
|
35
94303-05080 Dowel pin5X8 |
94303-05080 |
from US $0.81 |
||
|
36
|
36
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
38
|
38
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
|
39
|
39
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
||
|
40
|
40
96220-30198 Roller3X19.8 |
96220-30198 |
from US $0.22 |
||
