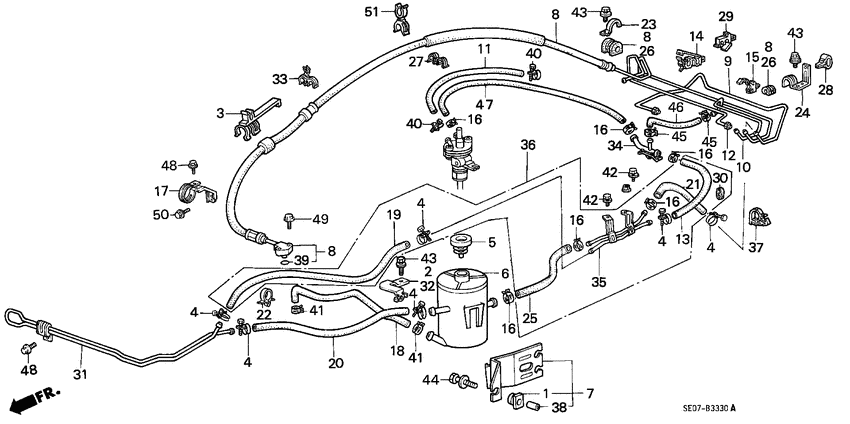

P.s. hose/pipe (LH) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31401-659-003
Rubber
|
31401-659-003 |
— | ||
|
4
|
4
46217-579-000 ClipTUBE |
46217-579-000 |
US $3.78 |
||
|
5
|
5
53697-SB3-951 CapOIL TANK |
53697-SB3-951 |
US $6.86 |
||
|
6
|
6
53701-SE0-953
Tank comp.
|
53701-SE0-953 |
— | ||
|
7
|
7
53711-SE0-950 Bracket assyOIL TANK |
53711-SE0-950 |
US $20.48 |
||
|
8
|
8
53713-SE0-A51
Hose comp.
|
53713-SE0-A51 |
— | ||
|
9
|
9
53720-SE0-A51
Pipe comp
0C000512 - |
53720-SE0-A51 |
— | ||
|
9
|
9
53720-SE0-A50 Pipe compRETURN, 10MM 00000000 - 0C000511 |
53720-SE0-A50 |
US $21.50 |
||
|
10
|
10
53724-SE0-A50 Pipe compRETURN, 6MM 00000000 - 0C000047 |
53724-SE0-A50 |
US $10.92 |
||
|
10
|
10
53724-SE0-A51
Pipe comp
0C000048 - |
53724-SE0-A51 |
— | ||
|
11
|
11
53725-SE0-951
Hose
|
53725-SE0-951 |
— | ||
|
12
|
12
53726-SE0-A51 Pipe compSENSOR (LH) 00000000 - 0C000047 |
53726-SE0-A51 |
US $13.72 |
||
|
12
|
12
53726-SE0-A52
Pipe comp
0C000048 - |
53726-SE0-A52 |
— | ||
|
13
|
13
53727-SE0-A51
Tube
|
53727-SE0-A51 |
— | ||
|
14
|
14
53728-SE0-A51 ClipRETURN PIPE 00000000 - 0C000047 |
53728-SE0-A51 |
US $4.76 |
||
|
14
|
14
53728-SE0-A52
Clip
0C000048 - |
53728-SE0-A52 |
— | ||
|
15
|
15
53729-SE0-951
Clip
|
53729-SE0-951 |
— | ||
|
16
|
16
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.46 |
||
|
17
|
17
53730-SE0-961
Clamp
|
53730-SE0-961 |
— | ||
|
18
|
18
53731-SE0-962
Tube
|
53731-SE0-962 |
— | ||
|
19
|
19
53732-SE0-951
Hose
0C002031 - |
53732-SE0-951 |
— | ||
|
19
|
19
53732-SE0-950
Hose
00000000 - 0C002030 |
53732-SE0-950 |
— | ||
|
20
|
20
53733-SE0-952
Tube
|
53733-SE0-952 |
— | ||
|
21
|
21
53734-SE0-951
Hose
0C002031 - |
53734-SE0-951 |
— | ||
|
21
|
21
53734-SE0-950 HoseCOMBINATION PIPE IN. 00000000 - 0C002030 |
53734-SE0-950 |
US $10.92 |
||
|
22
|
22
53735-SE0-961 ClipPOWER STEERING SUCTION TUBE |
53735-SE0-961 |
from US $3.70 |
||
|
23
|
23
53736-SB0-950
Holder b
|
53736-SB0-950 |
— | ||
|
24
|
24
53736-SE0-950
Holder b
|
53736-SE0-950 |
— | ||
|
25
|
25
53737-SE0-950
Tube
|
53737-SE0-950 |
— | ||
|
26
|
26
53738-SA5-950
Rubber b
|
53738-SA5-950 |
— | ||
|
27
|
27
53740-SE0-953 ClipSENSOR HOSE |
53740-SE0-953 |
from US $1.63 |
||
|
28
|
28
53742-SE0-951 ClipRETURN TUBE |
53742-SE0-951 |
US $3.33 |
||
|
29
|
29
53743-SE0-A51
Clip
0C000048 - |
53743-SE0-A51 |
— | ||
|
30
|
30
53749-SE0-300 Rubber |
53749-SE0-300 |
US $3.22 |
||
|
31
|
31
53765-SE0-954
Cooler
|
53765-SE0-954 |
— | ||
|
32
|
32
53774-SE0-961
Stay
|
53774-SE0-961 |
— | ||
|
33
|
33
53776-SB0-951
Clamp
|
53776-SB0-951 |
— | ||
|
34
|
34
53777-SE0-952
Connector
|
53777-SE0-952 |
— | ||
|
35
|
35
53779-SE0-952
Pipe comp
|
53779-SE0-952 |
— | ||
|
36
|
36
53780-SE0-A51 Pipe assy.POWER STEERING COMBINATION RETURN 00000000 - 0C002030 |
53780-SE0-A51 |
US $80.64 |
||
|
36
|
36
53780-SE0-A52 Pipe assy.POWER STEERING COMBINATION RETURN 0C002031 - |
53780-SE0-A52 |
US $77.44 |
||
|
37
|
37
53781-SE0-951
Clip
|
53781-SE0-951 |
— | ||
|
38
|
38
90854-671-000
Collar
|
90854-671-000 |
— | ||
|
39
|
39
91370-SB3-950 O-ring8.8X1.9 |
91370-SB3-950 |
from US $1.89 |
||
|
40
|
40
91410-671-000 ClipPOWER STEERING HOSE |
91410-671-000 |
US $4.06 |
||
|
41
|
41
91462-SA5-950 Clamp d19MM |
91462-SA5-950 |
from US $2.17 |
||
|
42
|
42
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
42
|
42
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
43
|
43
93492-060-160-8 Bolt-washer6X16 |
93492-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
43
|
43
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
44
|
44
93494-060-200-8
Bolt-washer
|
93494-060-200-8 |
— | ||
| replacement | |||||
|
44
|
44
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
45
|
45
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
46
|
46
95005-551-302-0
Tube
|
95005-551-302-0 |
— | ||
|
47
|
47
95005-754-102-1 Tube7.3X410 (95005-75001-20M) |
95005-754-102-1 |
US $5.48 |
||
|
48
|
48
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
48
|
48
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
49
|
49
95700-060-300-8 BoltFLANGE, 6X30 |
95700-060-300-8 |
from US $0.59 |
||
| replacement | |||||
|
49
|
49
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
50
|
50
95700-080-200-8 BoltFLANGE, 8X20 |
95700-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
50
|
50
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
51
|
51
53738-SE0-951
Clamp
|
53738-SE0-951 |
— | ||
