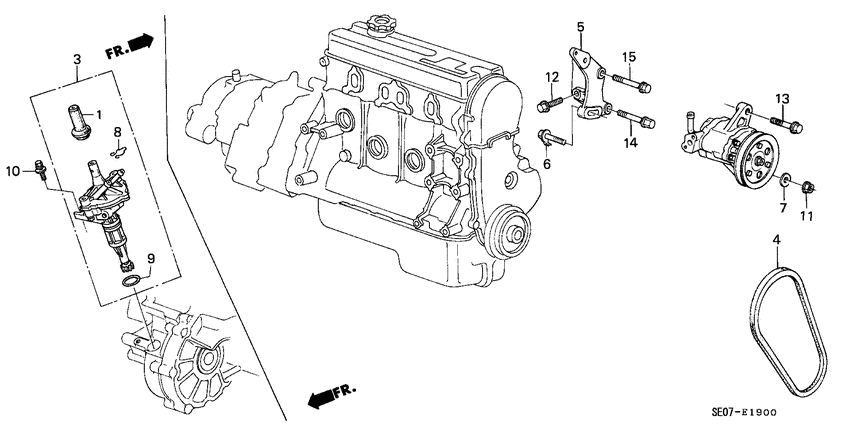

P.s. pump/speed sensor Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23814-689-000 SealGEAR HOLDER |
23814-689-000 |
US $5.18 |
||
|
3
|
3
56500-PH1-902
Sensor assy
00000000 - 1500427 |
56500-PH1-902 |
— | ||
|
3
|
3
56500-PH1-904 Sensor assySPEED 1500428 - |
56500-PH1-904 |
US $190.72 |
||
|
4
|
4
56992-PH1-004 BeltPOWER STEERING PUMP (BANDO) |
56992-PH1-004 |
US $15.36 |
||
|
5
|
5
56994-PH1-000
Bracket
|
56994-PH1-000 |
— | ||
|
6
|
6
56995-PC6-000
Bolt
|
56995-PC6-000 |
— | ||
|
7
|
7
90430-657-000 Washer23X8.3X3.2 |
90430-657-000 |
US $9.33 |
||
|
8
|
8
90637-689-000 ClipSPEEDOMETER CABLE |
90637-689-000 |
US $3.42 |
||
|
9
|
9
91313-611-010 O-ring23.5X2 |
91313-611-010 |
US $2.65 |
||
|
10
|
10
93493-060-200-8 Bolt-washer6X20 |
93493-060-200-8 |
from US $0.59 |
||
| replacement | |||||
|
10
|
10
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
12
|
12
95700-100-320-8 BoltFLANGE, 10X32 |
95700-100-320-8 |
from US $0.81 |
||
| replacement | |||||
|
12
|
12
95701-100-320-8 BoltFLANGE, 10X32 |
95701-100-320-8 |
from US $0.90 |
||
|
13
|
13
95700-100-400-8 BoltFLANGE, 10X40 |
95700-100-400-8 |
from US $0.81 |
||
| replacement | |||||
|
13
|
13
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
14
|
14
95700-100-450-8 BoltFLANGE, 10X45 |
95700-100-450-8 |
US $0.89 |
||
|
15
|
15
95700-100-500-8 BoltFLANGE, 10X50 |
95700-100-500-8 |
from US $0.89 |
||
| replacement | |||||
|
15
|
15
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
